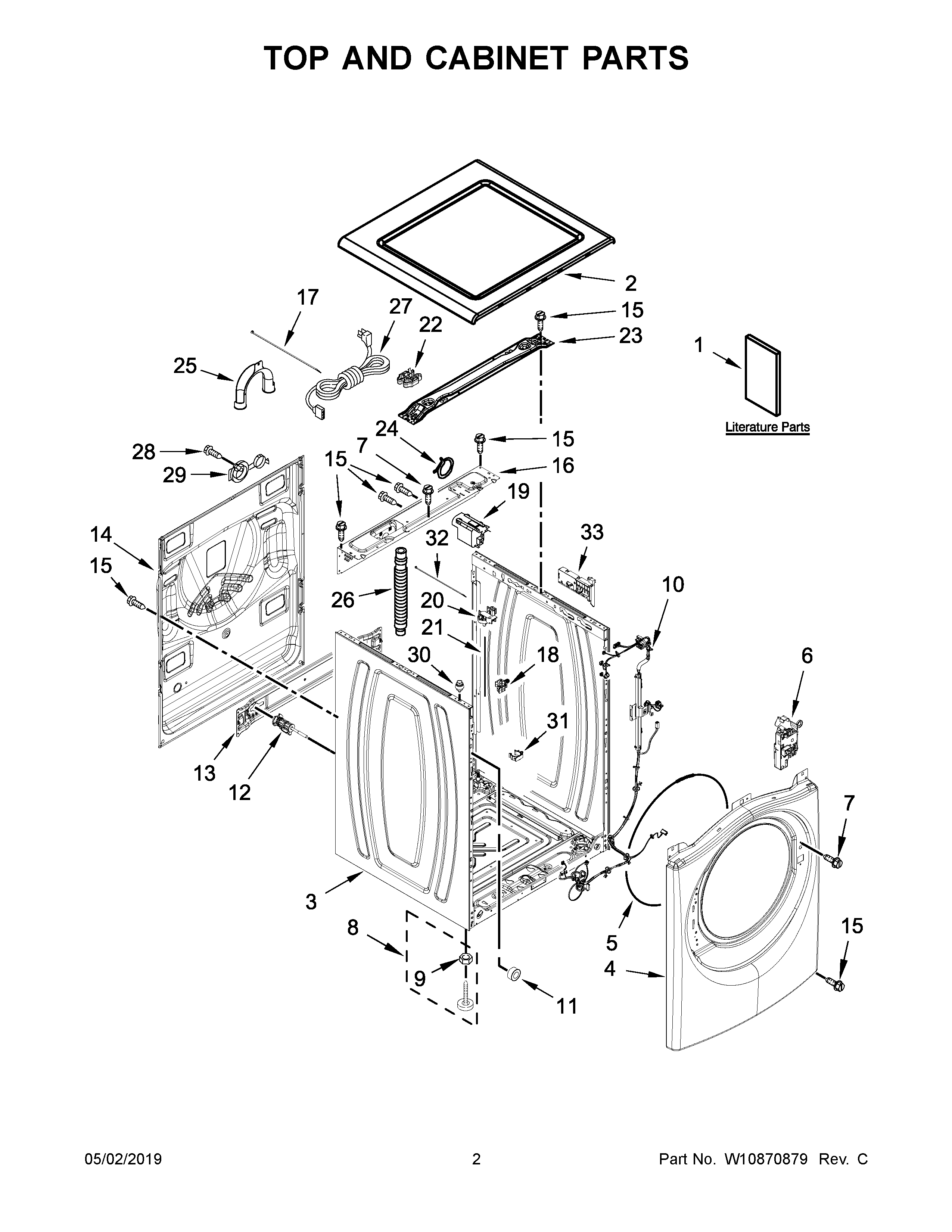

WFW9290FBD0 02 – TOP AND CABINET PARTS

WFW9290FBD0 02 – TOP AND CABINET PARTS

Written by

in

WFW9290FBD0 02 – TOP AND CABINET PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1CENERGY GUIDE
1BTECH SHEET
1AUSE AND CARE GUIDE
2AWPW10460693 Whirlpool Top Assembly
2WPW10208373 Whirlpool Top
2BTOP (BLACK)
3AW11166600 Whirlpool Cabinet
3W11166595 Whirlpool Cabinet Assembly
3BCABINET (BLACK)
4BW10433059 Whirlpool Panel
4AWPW10441111 Whirlpool Panel
4WPW10441116 Whirlpool Panel
5CLAMP
6WPW10443885 Whirlpool Door Lock
7WP8540282 Whirlpool Screw
8W10888529 Whirlpool Washer Leveling Leg
9WP3359452 Whirlpool Nut
10W10746378 Whirlpool Wire Harness
11W10323182 Whirlpool Spacer
12AW10763470 Whirlpool Bolt
13W10237498 Whirlpool Bracket Assembly
14PANEL, REAR
15W11568617 Whirlpool Screw
16WPW10467483 Whirlpool Bracket
18W10441646 Whirlpool Clip Assembly
19WPW10367632 Whirlpool Filter
20WPW10448876 Whirlpool Pressure Switch
21W11044558 Whirlpool Hose
22W10245452 Whirlpool Retainer
23W10467484 Whirlpool Bracket
24WP356138 Whirlpool Hose Clamp
25WPW10280024 Whirlpool Retainer
26W11281268 Whirlpool Hose
27W11035353 Whirlpool Washer Power Cord
28WP3351614 Whirlpool Screw
29W10854051 Whirlpool Cover Assembly
30W10208380 Whirlpool Screw
31W10822038 Whirlpool Clip Assembly
32WPW10339879 Whirlpool Wire Tie
33W10864049 Whirlpool Washer Electronic Control Board
