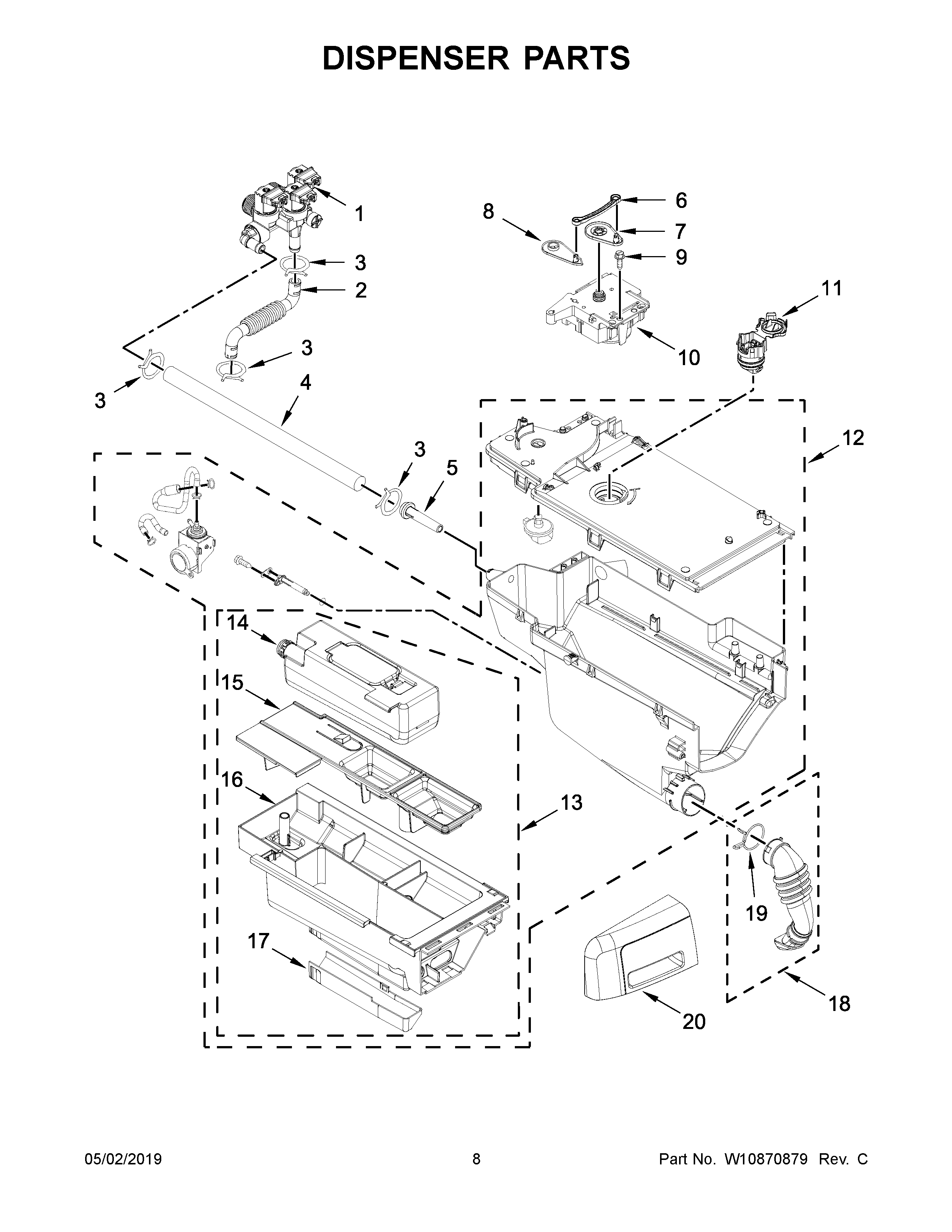

WFW9290FC0 05 – DISPENSER PARTS

Products

Position	Product
1	WPW10247306 Whirlpool Valve
2	W10239949 Whirlpool Hose
3	WP596669 Whirlpool Hose Clamp
4	W10744048 Whirlpool Hose
5	WP8183181 Whirlpool Nozzle
6	WP8183183 Whirlpool Lever
7	WP8183184 Whirlpool Actuator Cam
8	WPW10183517 Whirlpool Lever
9	WP8540282 Whirlpool Screw
10	WPW10352973 Whirlpool DIS Switch
11	W11096092 Whirlpool Sensor
12	DISPENSER-WASHER
13	WPW10250742 Whirlpool Washer Detergent Drawer
14	W10250743A Whirlpool Washer Detergent Dispenser
15	W10256661 Whirlpool Dispenser
16	WPW10250723 Whirlpool Drawer
17	W10003140 Whirlpool Cover
18	WPW10239966 Whirlpool Hose
19	W10239910 Whirlpool Clamp
20	W10784645 Whirlpool Handle
20A	W10784647 Whirlpool Handle Assembly
20B	W10784648 Whirlpool Handle
