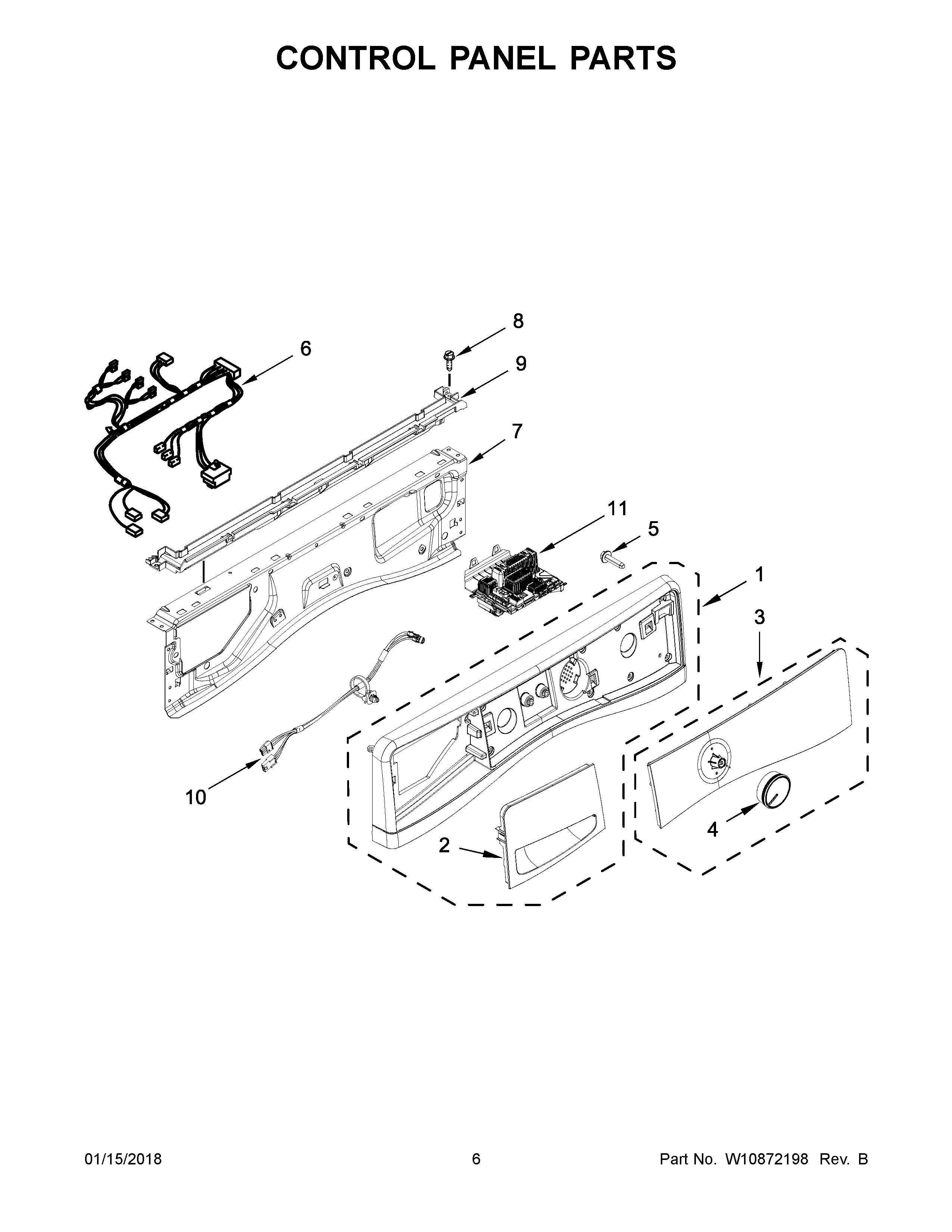

WFW92HEFBD0 04 – CONTROL PANEL PARTS

WFW92HEFBD0 04 – CONTROL PANEL PARTS

Written by

in

WFW92HEFBD0 04 – CONTROL PANEL PARTS

Products

PositionProduct
1BW10784652 Whirlpool Console
1CW10784650 Whirlpool Console
1W11218415 Whirlpool Console Assembly
1AW10784651 Whirlpool Console
2CHANDLE
2BW10784648 Whirlpool Handle
2W10784645 Whirlpool Handle
2AW10784647 Whirlpool Handle Assembly
3BW10911029 Whirlpool Control Panel
3CW10911026 Whirlpool Control Panel
3AW10911024 Whirlpool Control Panel
3W10911023 Whirlpool Control Panel
4W10875909 Whirlpool Timer Knob
5W10589828 Whirlpool Screw
6W11033849 Whirlpool Wire Harness Assembly
7W10208197 Whirlpool Bracket
8W11568617 Whirlpool Screw
9W11172160 Whirlpool Channel
10W10580186 Whirlpool Wire Harness
11W11201293-includeCORE Whirlpool W11201293 Washer Electronic Control Board + Core
