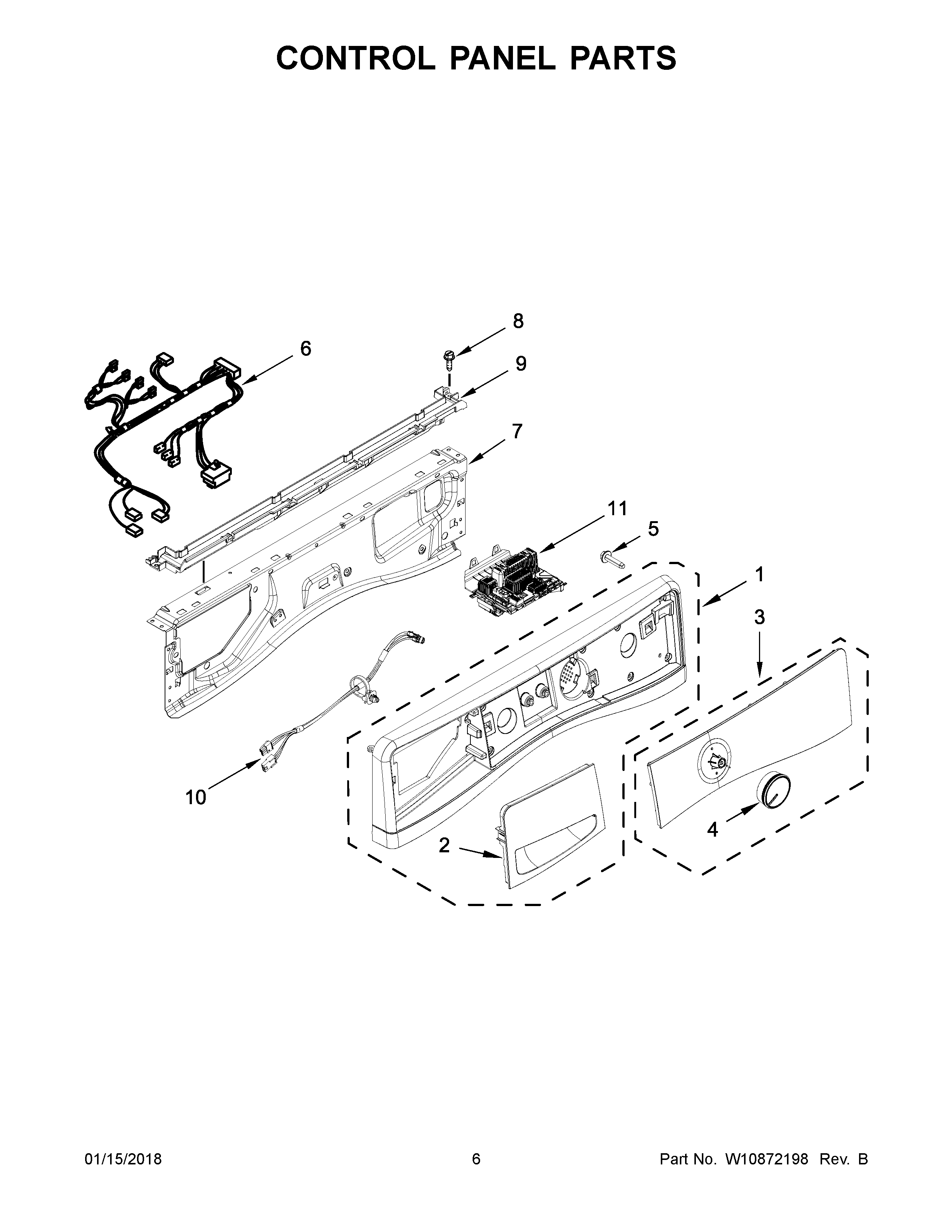

WFW92HEFU0 04 – CONTROL PANEL PARTS

Products

Position	Product
1B	W10784652 Whirlpool Console
1C	W10784650 Whirlpool Console
1	W11218415 Whirlpool Console Assembly
1A	W10784651 Whirlpool Console
2C	HANDLE
2B	W10784648 Whirlpool Handle
2	W10784645 Whirlpool Handle
2A	W10784647 Whirlpool Handle Assembly
3B	W10911029 Whirlpool Control Panel
3C	W10911026 Whirlpool Control Panel
3A	W10911024 Whirlpool Control Panel
3	W10911023 Whirlpool Control Panel
4	W10875909 Whirlpool Timer Knob
5	W10589828 Whirlpool Screw
6	W11033849 Whirlpool Wire Harness Assembly
7	W10208197 Whirlpool Bracket
8	W11568617 Whirlpool Screw
9	W11172160 Whirlpool Channel
10	W10580186 Whirlpool Wire Harness
11	W11201293-includeCORE Whirlpool W11201293 Washer Electronic Control Board + Core
