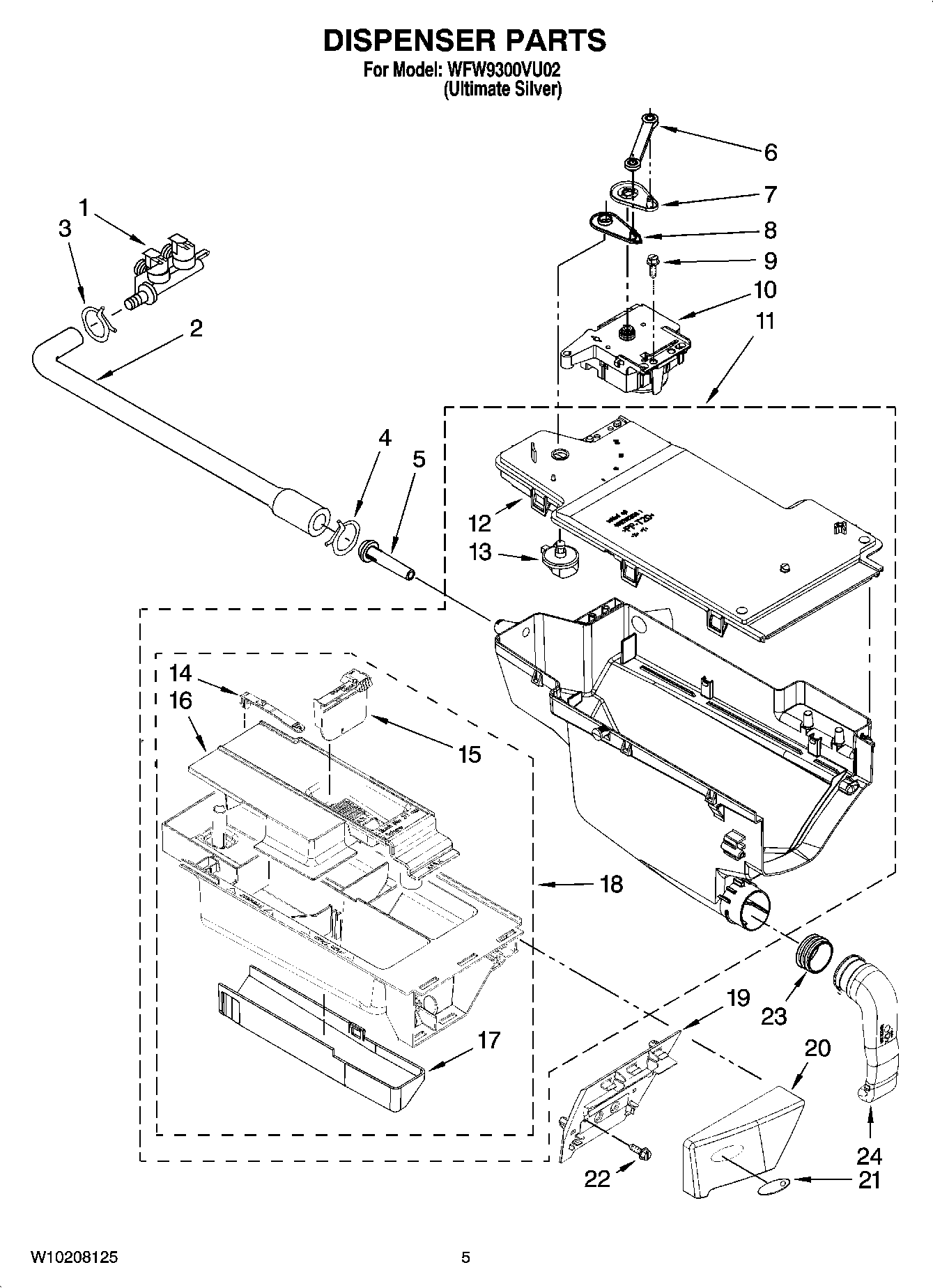

WFW9300VU02 04 – DISPENSER PARTS

Products

PositionProduct
1WP8182862 Whirlpool Valve Assembly
2Hose, Inlet Valve To Dispenser
4WP489503 Whirlpool Refrigerator Clamp
5WP8183181 Whirlpool Nozzle
6WP8183183 Whirlpool Lever
7WP8183184 Whirlpool Actuator Cam
8WPW10161052 Whirlpool Dispenser Lever Connection
9WP8540282 Whirlpool Screw
10WPW10352973 Whirlpool DIS Switch
11Dispenser, Complete (Includes Item 8)
12Plate, Distribution
13WP8181712 Whirlpool Nozzle
14WP8181721 Whirlpool Retainer
15WPW10121596 Whirlpool Divider
16W10121598 Whirlpool Dispenser Assembly
17W10003140 Whirlpool Cover
18WPW10015190 Whirlpool Drawer
19WPW10156617 Whirlpool Bracket
20Handle, Drawer (Includes Items 19 & 21) (Ultimate Silver)
21MEDALLION
22SCREW
23WP8181747 Whirlpool Seal Assembly
24WPW10005300 Whirlpool Hose
