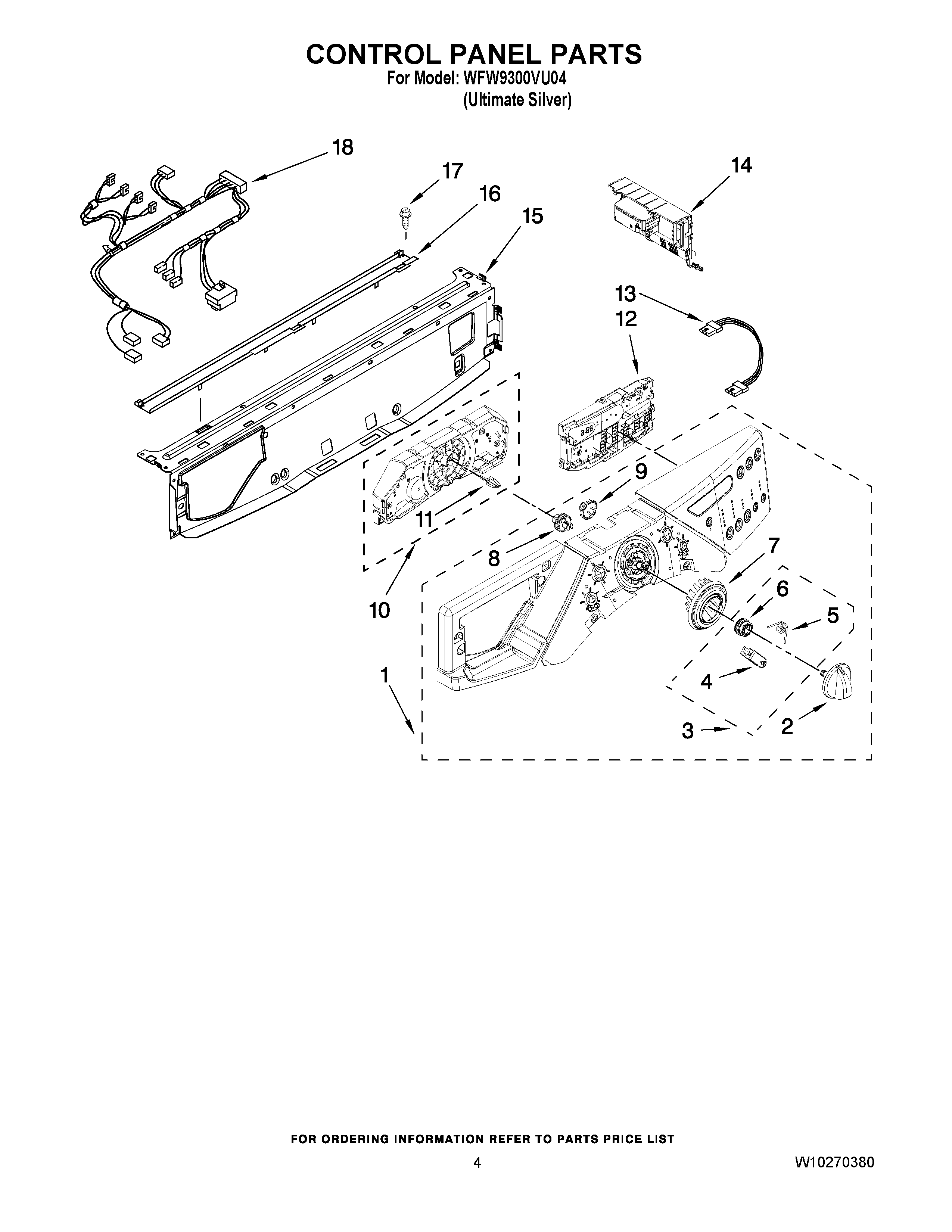

WFW9300VU04 03 – CONTROL PANEL PARTS

WFW9300VU04 03 – CONTROL PANEL PARTS

Written by

in

WFW9300VU04 03 – CONTROL PANEL PARTS

Products

PositionProduct
1Panel-Control
2W10166961 Whirlpool Knob
3Wheel, Detent Kit (Includes Item 9)
4Wheel, Rast (2) (Service In Kit Only)
5Spring, Knob (2) (Service In Kit Only)
6Wheel, Detent (Service In Kit Only)
7Ring, Knob Light (Includes Item 9)
8W10131381 Whirlpool Wheel
9Retainer, Snap
10User Interface, Center
11Adapter, Encoder Wheel
12USER INTERFACE, RIGHT
138183254 Whirlpool Wire Harness
14MICROCOMPUTER, MACHINE CONTROL
15W10059240 Whirlpool Bracket Assembly
16WP8183204 Whirlpool Diverter
17WP488729 Whirlpool Refrigerator Door Screw
18HARNESS, WIRING (UPPER MAIN)
