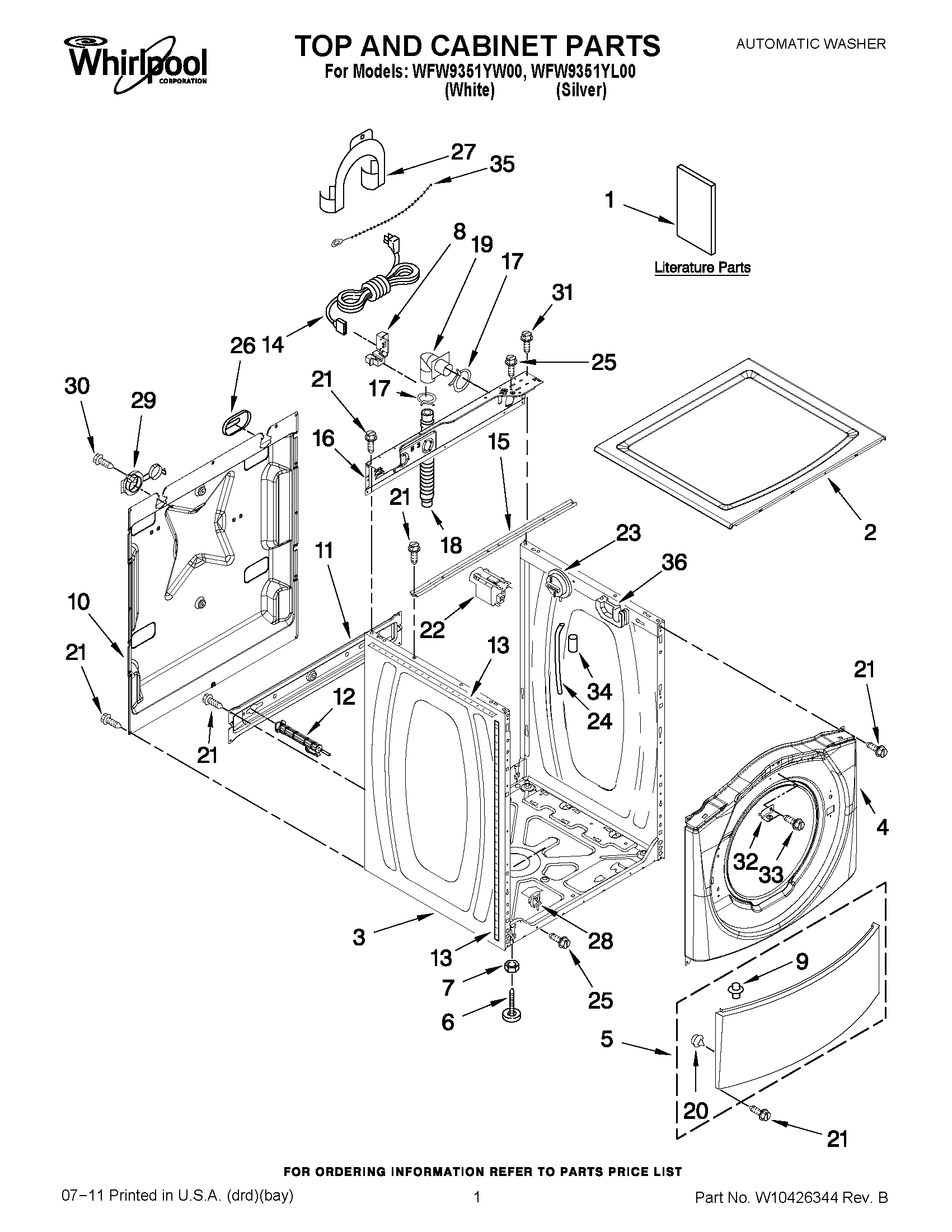

WFW9351YL00 01 – TOP AND CABINET PARTS

Products

Position	Product
1	TECH SHEET
1	ENERGY GUIDE
1	INSTALLATION INSTRUCTIONS
1	USE & CARE GUIDE
2	TOP (SILVER)
2	WPW10303994 Whirlpool Top
3	W10410294 Whirlpool Cabinet
3	WPW10410323 Whirlpool Cabinet
4	PANEL, FRONT (SILVER)
4	PANEL, FRONT (WHITE)
5	W10254153 Whirlpool Panel
5	WP8540664 Whirlpool Control Panel
6	W10862938 Whirlpool Leveling Feet
7	WP3359452 Whirlpool Nut
8	8182635 Whirlpool Strain Relief
9	8518891 Whirlpool Rivet
10	WPW10258341 Whirlpool Panel
11	W10189657 Whirlpool Brace
12	W10763471 Whirlpool Bolt
13	Seal, Foam
14	CORD, POWER
15	WP8540721 Whirlpool Brace
16	W10244560 Whirlpool Brace
17	WP356138 Whirlpool Hose Clamp
18	WP8181737 Whirlpool Hose
19	CONNECTOR
20	238614 Whirlpool Bumper Hinge
21	WP489442 Whirlpool Refrigerator Screw
22	WPW10367632 Whirlpool Filter
23	W11417623 Whirlpool Washer Water Level Switch
24	HOSE
25	8540479 Whirlpool Screw
26	WP8540268 Whirlpool Cover Assembly
27	WPW10280024 Whirlpool Retainer
28	WPW10085220 Whirlpool Switch
29	W11116978 Whirlpool Grommet
30	8182201 Whirlpool Screw
31	8540329 Whirlpool Screw
32	BRACKET, CONSOLE RETAINER
33	WP98006631 Whirlpool Screw
34	SLEEVE
35	WPW10339879 Whirlpool Wire Tie
36	8540644 Whirlpool Bracket
