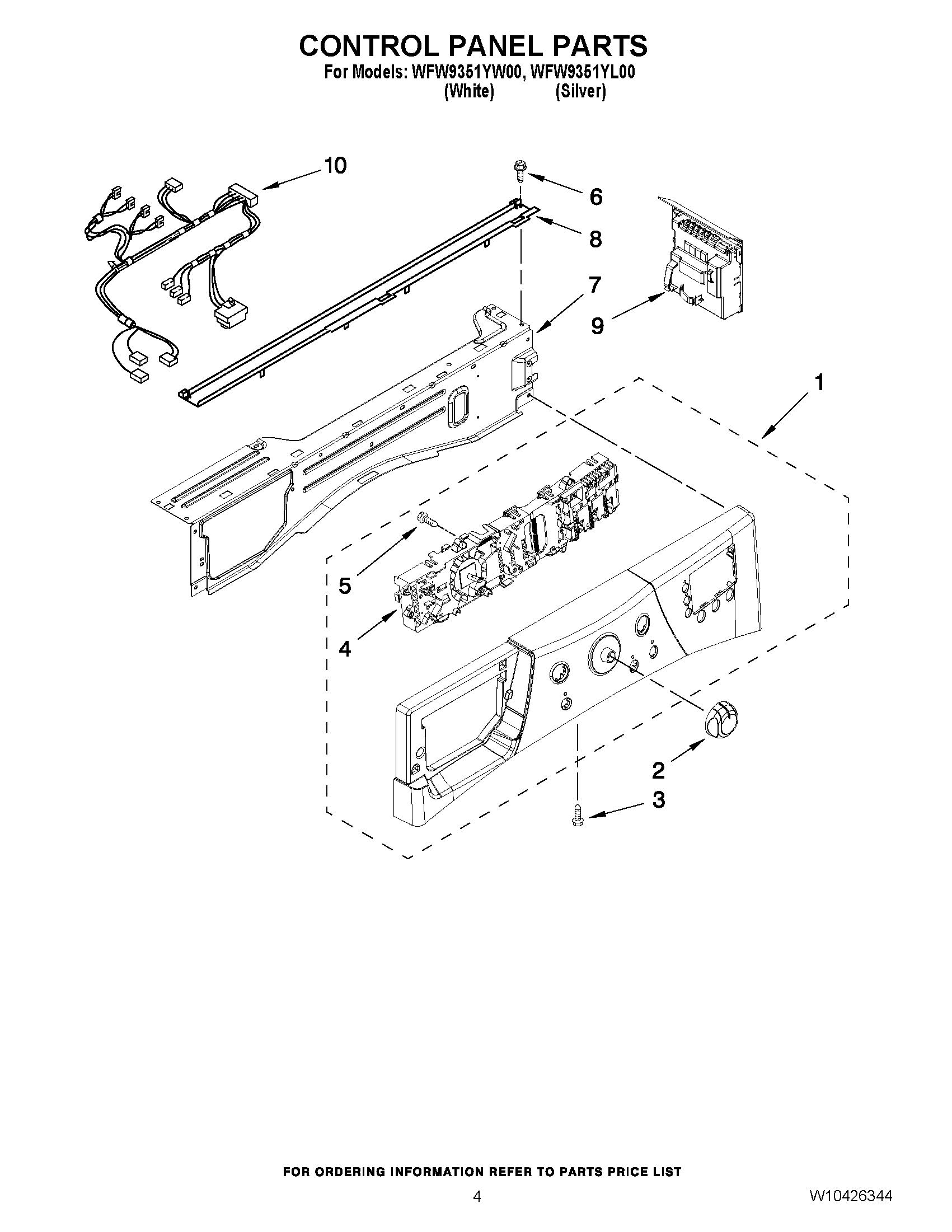

WFW9351YL00 03 – CONTROL PANEL PARTS

WFW9351YL00 03 – CONTROL PANEL PARTS

Written by

in

WFW9351YL00 03 – CONTROL PANEL PARTS

Products

PositionProduct
1CONSOLE (SILVER)
1WPW10370315 Whirlpool Console Assembly
2WPW10251394 Whirlpool Knob
3WP8540282 Whirlpool Screw
4USER INTERFACE
5W10006580 Whirlpool Screw
6WP489442 Whirlpool Refrigerator Screw
7W10846488 Whirlpool Bracket
8CHANNEL, WATER
9WPW10525373-includeCORE Whirlpool WPW10525373 Washer Electronic Control Board + Core
10W10323100 Whirlpool Wire Harness
