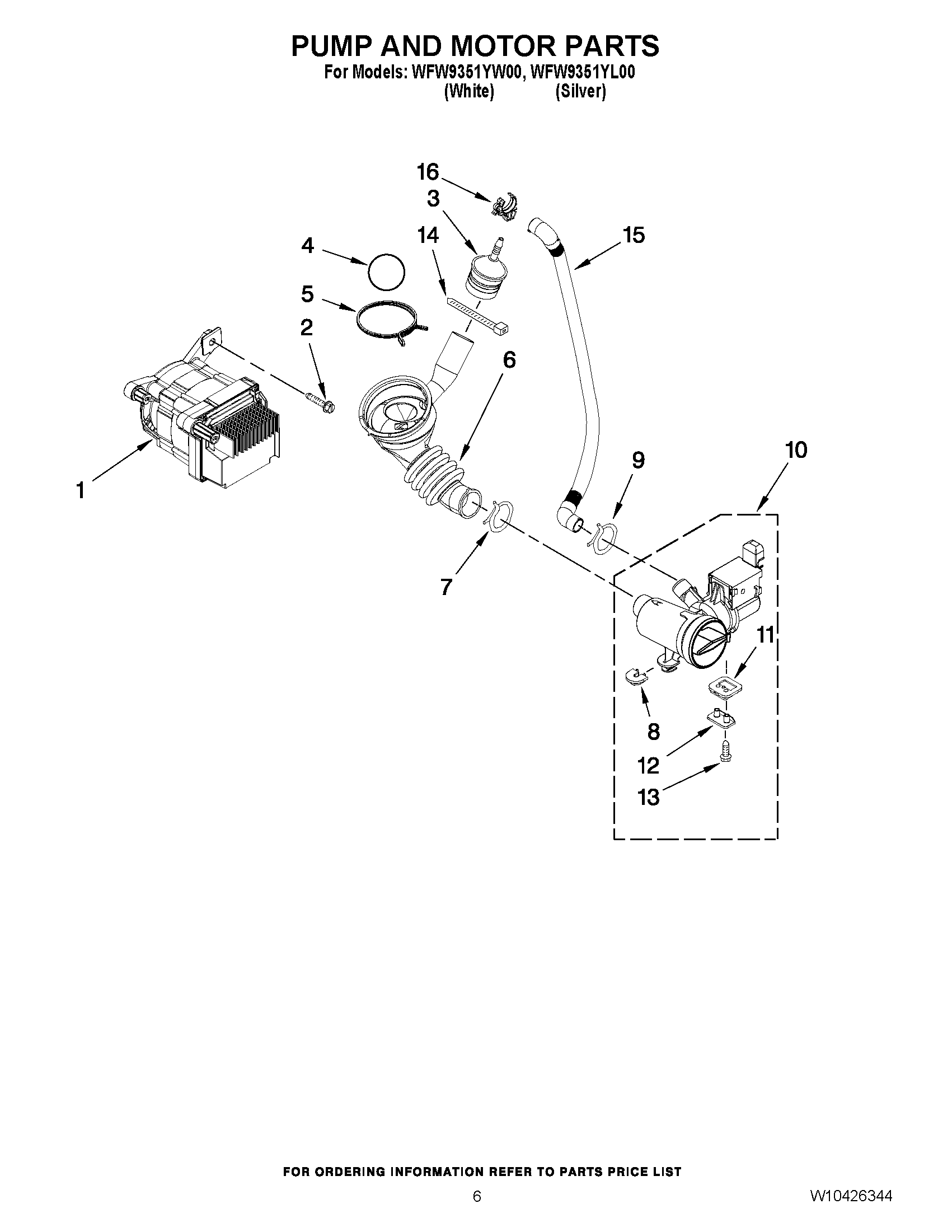

WFW9351YL00 05 – PUMP AND MOTOR PARTS

WFW9351YL00 05 – PUMP AND MOTOR PARTS

Written by

in

WFW9351YL00 05 – PUMP AND MOTOR PARTS

Products

PositionProduct
1MOTOR, DRIVE
28540134 Whirlpool Screw
3WPW10405608 Whirlpool Trap
4BALL
5WP696392 Whirlpool Hose Clamp
6W11366249 Whirlpool Washer Tub to Pump Hose
7WP616099 Whirlpool Clamp
8W10034820 Whirlpool Grommet
9WP285655 Whirlpool Hose Clamp
10WPW10730972 Whirlpool Washer Water Pump
11W10034830 Whirlpool Grommet
128540033 Whirlpool Cap
138533964 Whirlpool Screw
14WP2262071 Whirlpool Wire Tie
15WPW10272563 Whirlpool Hose
168182209 Whirlpool Clip
