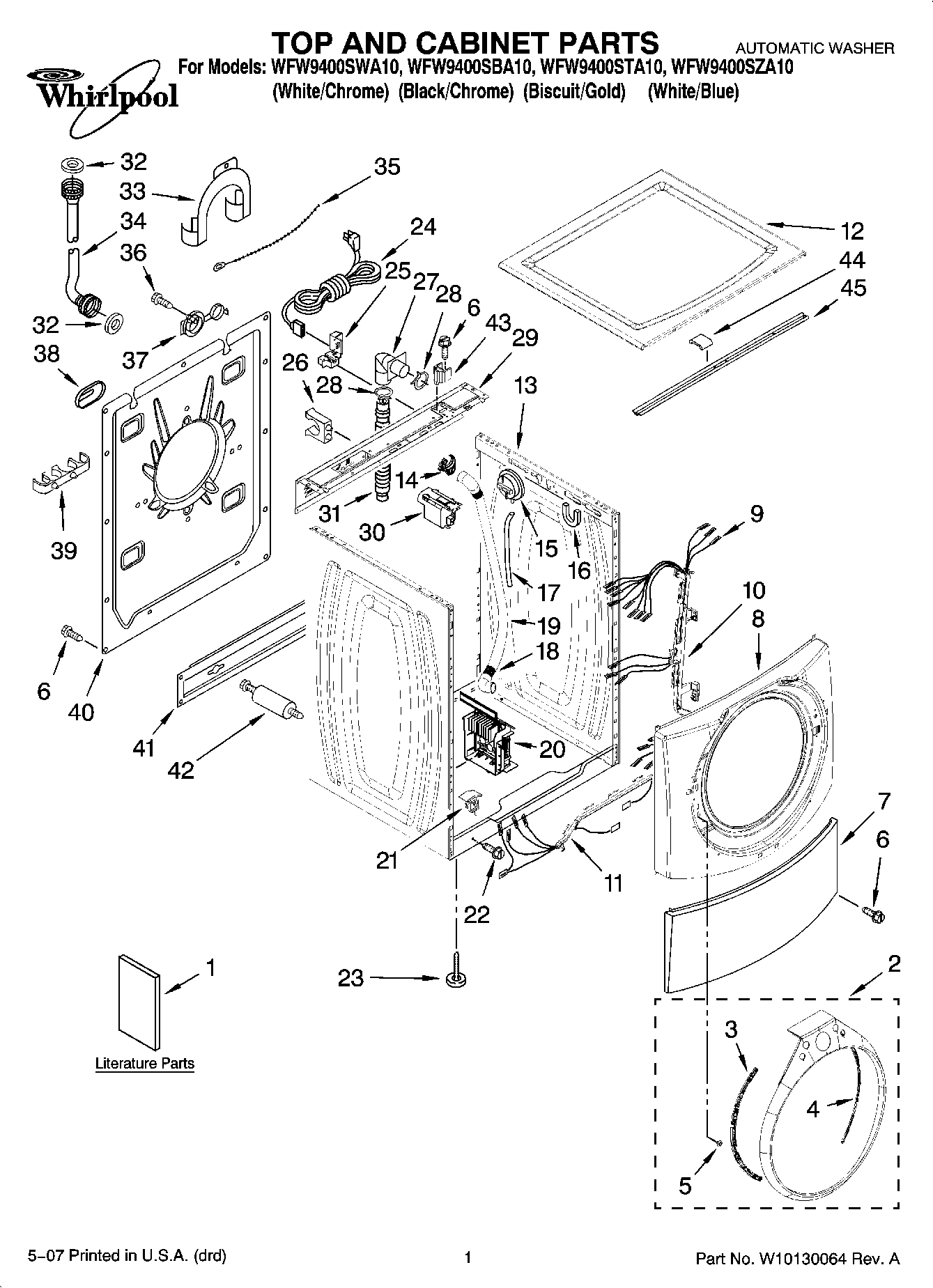

WFW9400STA10 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Use & Care Guide
1Tech Sheet
1Quick Start Guide
1Energy Guide
2Trim Ring, Teardrop Assembly (Blue)
2Trim Ring, Teardrop Assembly (Black)
2Trim Ring, Teardrop Assembly (Biscuit)
2Trim Ring, Teardrop Assembly (White)
3Bracket, Trim Fixation (Left)
4Bracket, Trim Fixation (Right)
5WP8183210 Whirlpool Clip
6WP489442 Whirlpool Refrigerator Screw
7Toe Panel (Black)
7Toe Panel (Biscuit)
7Toe Panel
8Panel, Front
8Panel, Front (Biscuit)
8Panel, Front (Black)
9W10116562 Whirlpool Wire Harness
10W10216383 Whirlpool Retainer
11W10168549 Whirlpool Retainer
12Top (Black)
12Top (White)
12Top (Biscuit)
13Cabinet
13Cabinet (Black)
13Cabinet (Biscuit)
148182209 Whirlpool Clip
15W11417622 Whirlpool Washer Water Level Switch
16WP8181763 Whirlpool Bracket Assembly
17WPW10004260 Whirlpool Pressure Switch Hose
18WPW10003250 Whirlpool Hose
19Sleeve, Drain Hose
20WPW10384846-includeCORE Whirlpool WPW10384846 Refrigerator Electronic Control Board + Core
21WPW10085220 Whirlpool Switch
228540479 Whirlpool Screw
23W10862938 Whirlpool Leveling Feet
24WP8183009 Whirlpool Power Cord
258182635 Whirlpool Strain Relief
26Clip, Outer Hose Holder
27CONNECTOR
28WP356138 Whirlpool Hose Clamp
29Brace, Rear
30WPW10367632 Whirlpool Filter
31WP8181737 Whirlpool Hose
32WP16123 Whirlpool Washer
33WPW10280024 Whirlpool Retainer
34WP89503 Whirlpool Washer Fill Hose
34FILL HOSE 5' W/WASHER
35WPW10339879 Whirlpool Wire Tie
368182201 Whirlpool Screw
37W11116978 Whirlpool Grommet
38WP8540268 Whirlpool Cover Assembly
398182701 Whirlpool Clip
40W10003030 Whirlpool Panel
41WPW10003040 Whirlpool Brace
42W10289554A Whirlpool Bolt Kit
43WPL W10123373
44WP8283273 Whirlpool Pad
45WP8540720 Whirlpool Brace Assembly
