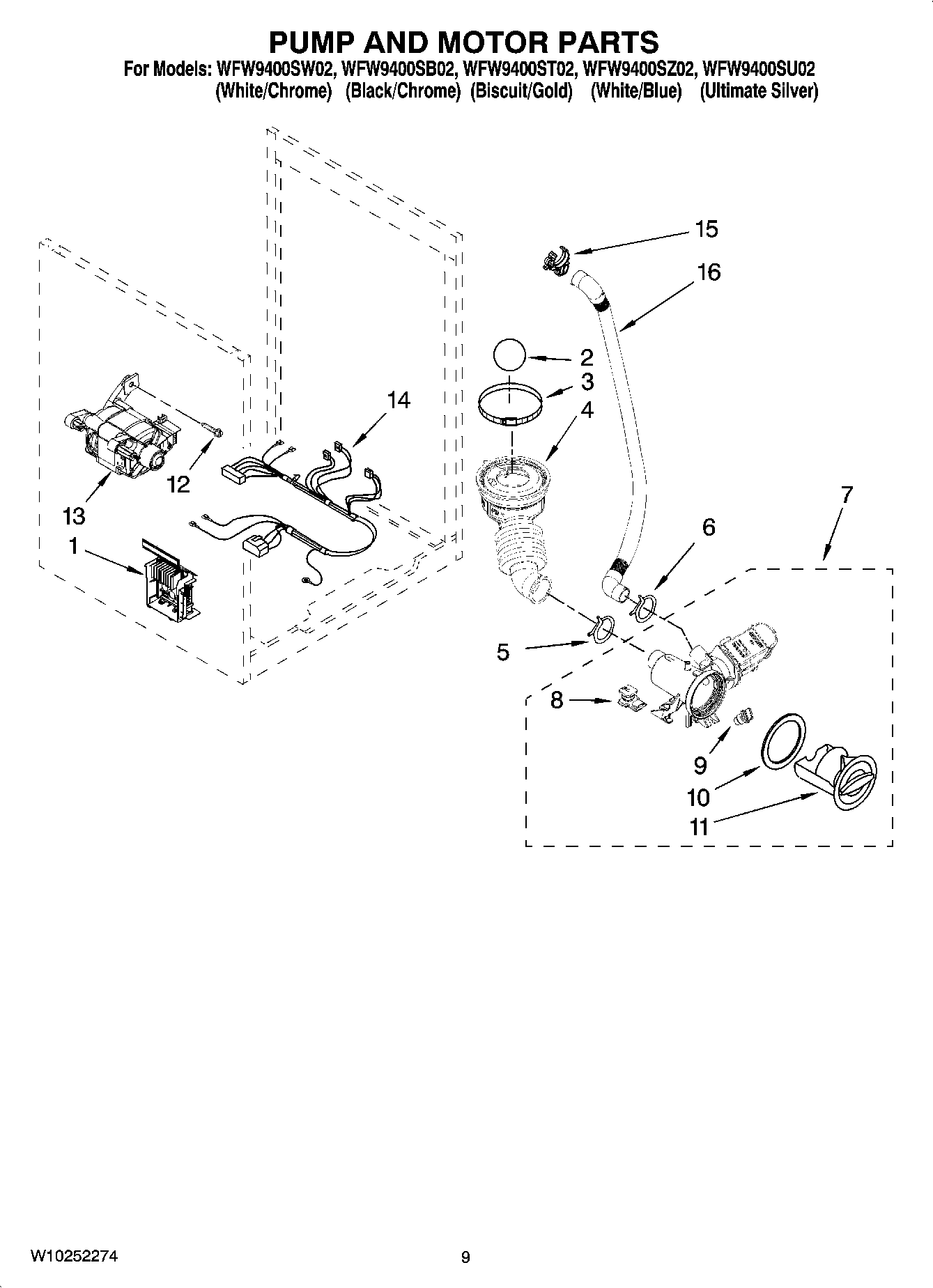

WFW9400SU02 06 – PUMP AND MOTOR PARTS

WFW9400SU02 06 – PUMP AND MOTOR PARTS

Written by

in

WFW9400SU02 06 – PUMP AND MOTOR PARTS

Products

PositionProduct
1WP8183196 Whirlpool Electronic Control Board + Core
2W10121657 Whirlpool Ball
3WP696392 Whirlpool Hose Clamp
4WPW10467168 Whirlpool Hose Assembly
5WP285655 Whirlpool Hose Clamp
6WP3367052 Whirlpool Hose Clamp
7280187 Whirlpool Washer Electronic Water Drain Pump
8Grommet, Damper (Rear)
9WPW10526202 Whirlpool Grommet
10Seal, Filter Cap
11Cap, Filter
12Bolt, Motor
13Motor
14WPW10189680 Whirlpool Wire Harness
158182209 Whirlpool Clip
16WPW10003250 Whirlpool Hose
