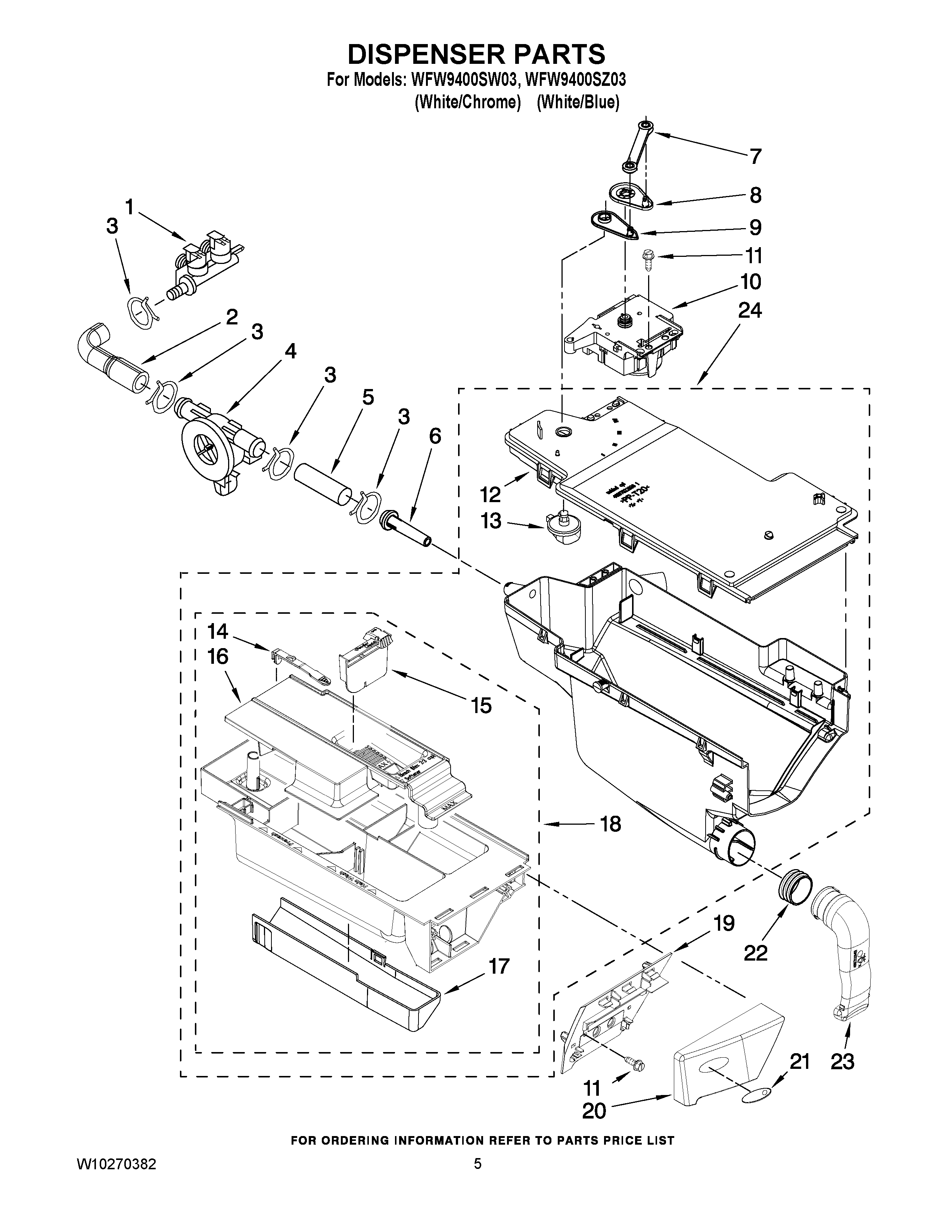

WFW9400SW03 04 – DISPENSER PARTS

Products

Position	Product
1	WP8182862 Whirlpool Valve Assembly
2	8183182 Whirlpool Hose
3	WP489503 Whirlpool Refrigerator Clamp
4	FLOWMETER WASHER INLET
5	Hose, Nozzle Inlet
6	WP8183181 Whirlpool Nozzle
7	WP8183183 Whirlpool Lever
8	WP8183184 Whirlpool Actuator Cam
9	WPW10161052 Whirlpool Dispenser Lever Connection
10	WPW10352973 Whirlpool DIS Switch
11	WP8540282 Whirlpool Screw
12	Plate, Distribution
13	WP8181712 Whirlpool Nozzle
14	WP8181721 Whirlpool Retainer
15	WPW10121596 Whirlpool Divider
16	Syphon, Bleach/Softener
17	W10003140 Whirlpool Cover
18	Drawer, Detergent (Complete)
19	WPW10156617 Whirlpool Bracket
20	Handle, Drawer (Includes Items 18 & 20)
21	MEDALLION
22	WP8181747 Whirlpool Seal Assembly
23	WPW10005300 Whirlpool Hose
24	Dispenser, Complete (Includes Item 9)
