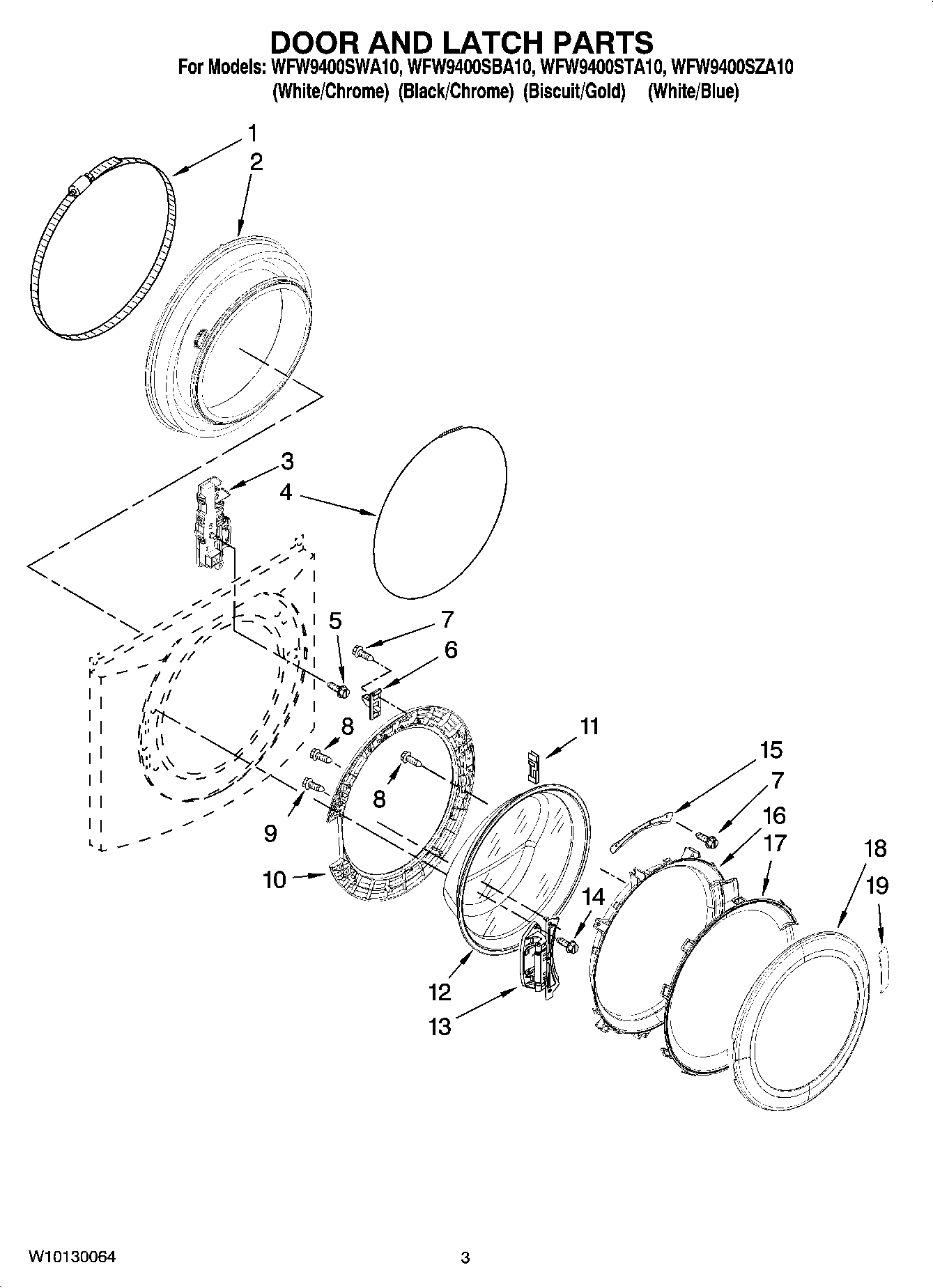

WFW9400SWA10 02 – DOOR AND LATCH PARTS

WFW9400SWA10 02 – DOOR AND LATCH PARTS

Written by

in

WFW9400SWA10 02 – DOOR AND LATCH PARTS

Products

PositionProduct
1WP8182210 Whirlpool Clamp
2WP8182119 Whirlpool Washer Door Boot Bellows
3WPW10253483 Whirlpool Latch
4W10902779 Whirlpool Clamp Assembly
5WP8540725 Whirlpool Screw Assembly
7W11230114 Whirlpool Screw Assembly
8WP8540282 Whirlpool Screw
9WP8181660 Whirlpool Screw
10WPW10488048 Whirlpool Strike
11CLAMP, GLASS SUPPORT
12Glass, Door
13WP8183202 Whirlpool Door Hinge
14WP489442 Whirlpool Refrigerator Screw
15W10295703 Whirlpool Clamp Assembly
16WP8183256 Whirlpool Frame Assembly
17Screen, Door
18WPW10069120 Whirlpool Trim Ring
18Trim Ring, Outer Door (Includes Item 19) (Blue)
18Trim Ring, Outer Door (Includes Item 19) (Gold)
19W10121607 Whirlpool Cushion
