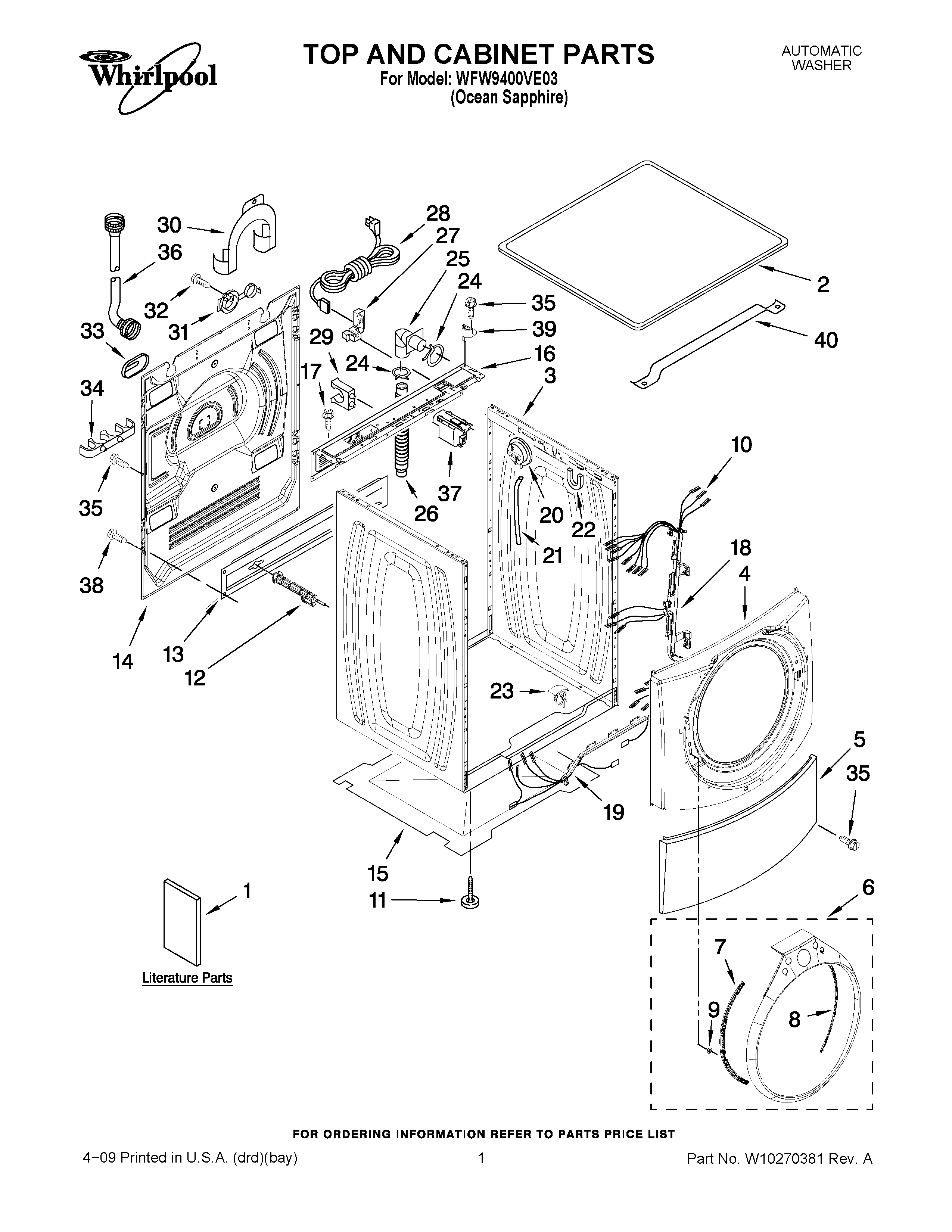

WFW9400VE03 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Tech Sheet
1	Energy Guide
1	Quick Start Guide
1	Use & Care Guide
2	Top
3	CABINET
4	Panel, Front
5	Toe Panel
6	Trim Ring, Teardrop Assembly
7	Bracket, Trim Fixation (Left)
8	Bracket, Trim Fixation (Right)
9	WP8183210 Whirlpool Clip
10	WP8183189 Whirlpool Wire Harness
11	Foot, Leveling
12	W10289554A Whirlpool Bolt Kit
13	WPW10003040 Whirlpool Brace
14	Panel, Rear
15	Pan, Bottom
16	Brace, Rear
17	WP488729 Whirlpool Refrigerator Door Screw
18	Channel, Harness (Side)
19	Channel, Harness (Bottom)
20	WPW10271610 Whirlpool Washer Water Level Switch
21	WPW10004260 Whirlpool Pressure Switch Hose
22	WP8181763 Whirlpool Bracket Assembly
23	WPW10085220 Whirlpool Switch
24	WP3367052 Whirlpool Hose Clamp
25	Connector, Drain Hose
26	WP8181737 Whirlpool Hose
27	8182635 Whirlpool Strain Relief
28	WP8183009 Whirlpool Power Cord
29	Clip, Outer Hose Holder
30	WPW10280024 Whirlpool Retainer
31	W11116978 Whirlpool Grommet
32	8182201 Whirlpool Screw
33	WP8540268 Whirlpool Cover Assembly
34	8182701 Whirlpool Clip
36	WP89503 Whirlpool Washer Fill Hose
37	WPW10367632 Whirlpool Filter
38	Screw, 4.2 x 1
39	Spacer, Top (2)
40	Brace, Top
