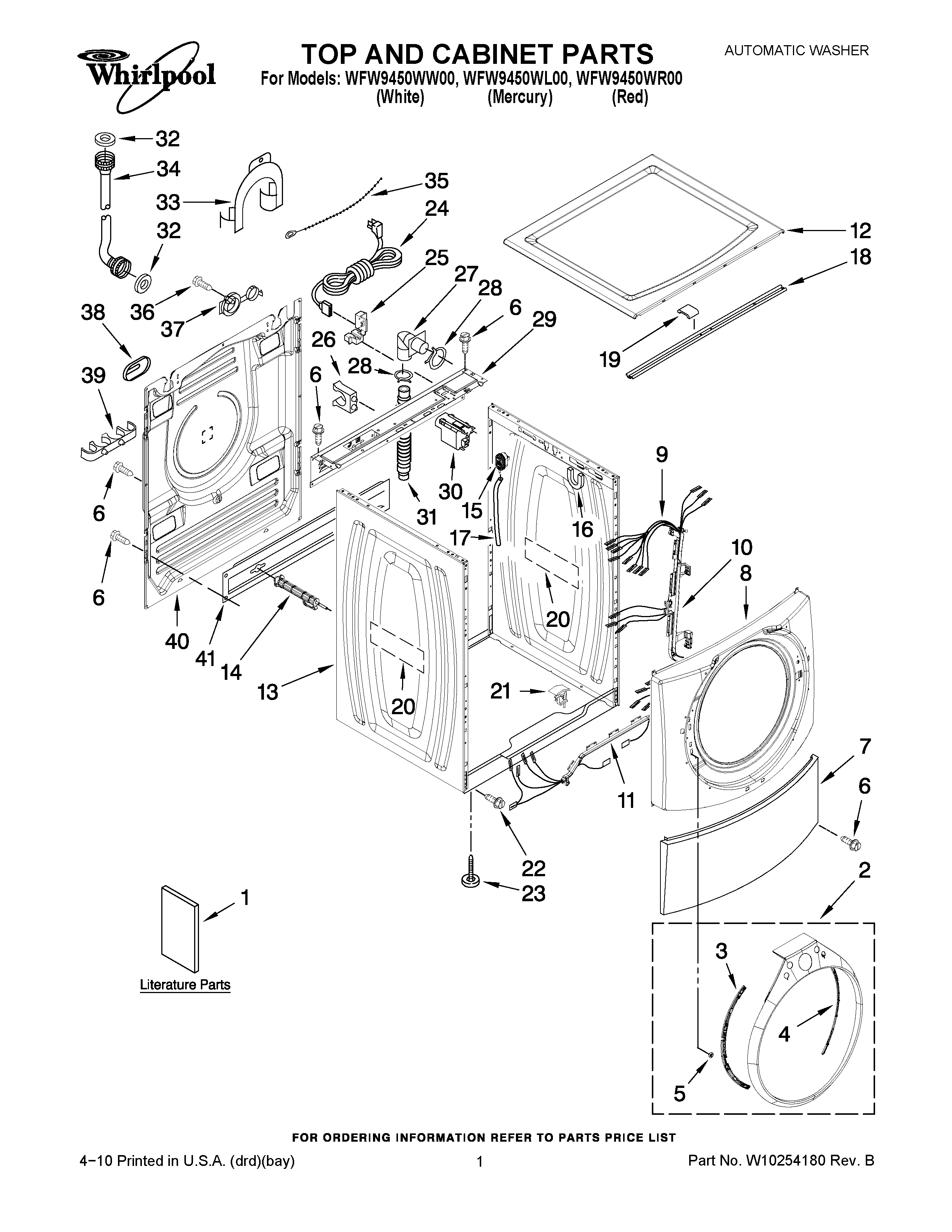

WFW9450WL00 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Tech Sheet
1	ENERGY GUIDE
1	USE & CARE GUIDE
2	TRIM RING, TEARDROP ASSEMBLY (RED)
2	TRIM RING, TEARDROP ASSEMBLY (MERCURY)
2	TRIM RING, TEARDROP ASSEMBLY (WHITE)
3	Bracket, Trim Fixation (Left)
4	Bracket, Trim Fixation (Right)
5	WP8183210 Whirlpool Clip
6	WP489442 Whirlpool Refrigerator Screw
7	Toe Panel
7	TOE PANEL (RED)
7	TOE PANEL (MERCURY)
8	PANEL, FRONT (RED)
8	PANEL, FRONT (MERCURY)
8	Panel, Front
9	W10221500 Whirlpool Wire Harness
10	W10216383 Whirlpool Retainer
11	W10168549 Whirlpool Retainer
12	TOP (RED)
12	TOP (MERCURY)
12	Top
13	CABINET (MERCURY)
13	W10171708 Whirlpool Cabinet
13	CABINET (RED)
14	Bolt, Shipping (Lower (2))
14	W10289554A Whirlpool Bolt Kit
15	W11417623 Whirlpool Washer Water Level Switch
16	WP8181763 Whirlpool Bracket Assembly
17	WPW10004260 Whirlpool Pressure Switch Hose
18	WP8540720 Whirlpool Brace Assembly
19	WP8283273 Whirlpool Pad
20	Cabinet – Sound Damper
21	WPW10085220 Whirlpool Switch
22	8540479 Whirlpool Screw
23	W10862938 Whirlpool Leveling Feet
24	WP8183009 Whirlpool Power Cord
25	8182635 Whirlpool Strain Relief
26	Clip, Outer Hose Holder
27	CONNECTOR
28	WP356138 Whirlpool Hose Clamp
29	Brace, Rear
30	WPW10367632 Whirlpool Filter
31	WP8181737 Whirlpool Hose
32	WP16123 Whirlpool Washer
33	WPW10280024 Whirlpool Retainer
34	FILL HOSE 5' W/WASHER
34	WP89503 Whirlpool Washer Fill Hose
35	WPW10339879 Whirlpool Wire Tie
36	8182201 Whirlpool Screw
37	W11116978 Whirlpool Grommet
38	WP8540268 Whirlpool Cover Assembly
39	8182701 Whirlpool Clip
40	WPL W10165713
41	WPW10003040 Whirlpool Brace
41	WPL W10165710
