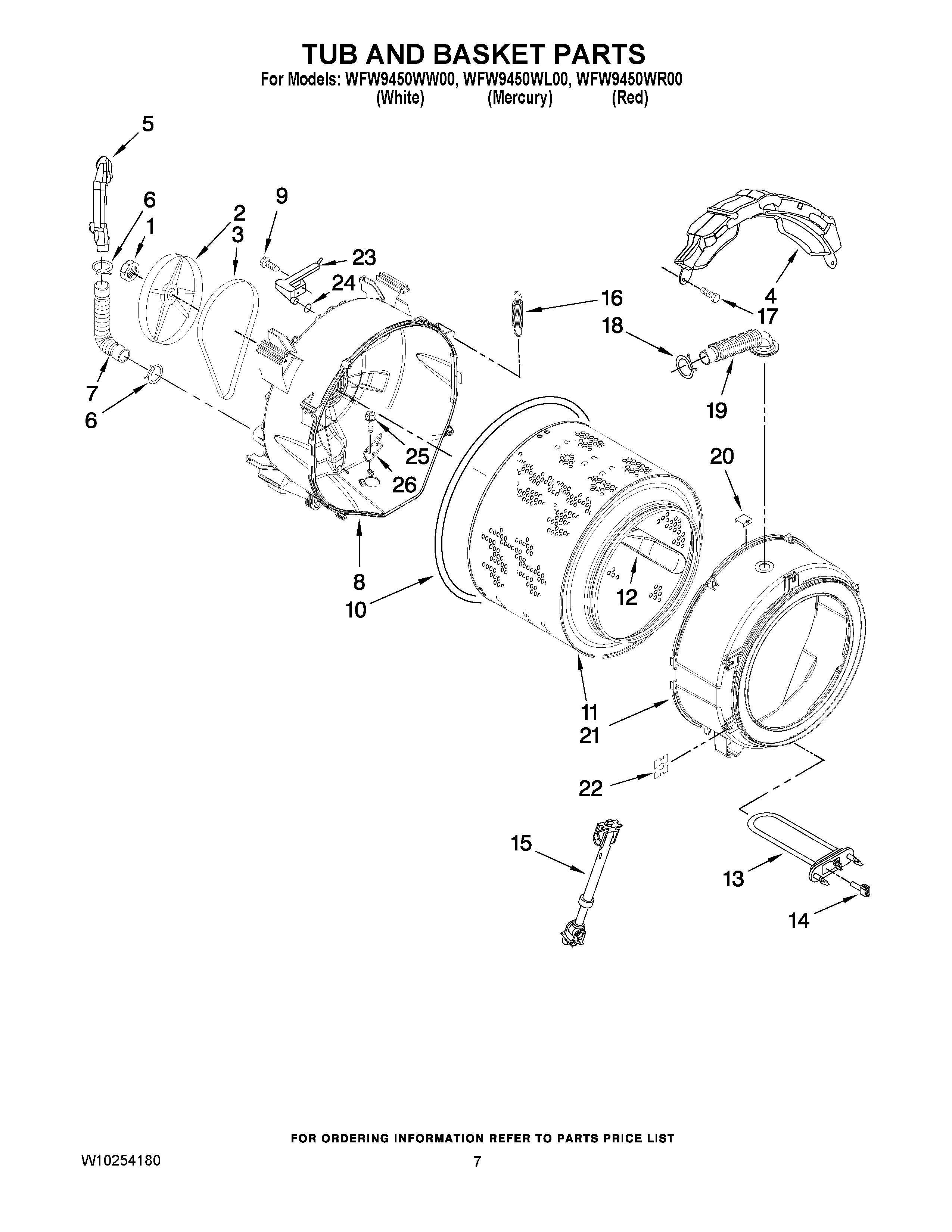

WFW9450WL00 05 – TUB AND BASKET PARTS

WFW9450WL00 05 – TUB AND BASKET PARTS

Written by

in

WFW9450WL00 05 – TUB AND BASKET PARTS

Products

PositionProduct
1WPW10283361 Whirlpool Nut
2WP8182650 Whirlpool Pulley
3WPW10388414 Whirlpool Washer Drive Belt
4Counterweight, Front (2)
5W10112169 Whirlpool Vent Pipe
68540010 Whirlpool Clamp
7WP8181743 Whirlpool Hose Assembly
8W10261338 Whirlpool Outer Tub
9W11230114 Whirlpool Screw Assembly
10WPW10036350 Whirlpool Gasket
11WPW10159904 Whirlpool Spin Basket Drum Assembly
12WPW10110114 Whirlpool Baffle
13WPW10426377 Whirlpool Heater Assembly
14WPW10467289 Whirlpool Sensor
15W10822553 Whirlpool Washer Shock Absorber
16W10243909 Whirlpool Spring
17W11685857 Whirlpool Screw Assembly
183363365 Whirlpool Clamp
19WP8540015 Whirlpool Hose Assembly
20WP8540092 Whirlpool Clamp
21Tub, Front (Includes Items 10 & 22)
22WP8182512 Whirlpool Nut Assembly
23Air Trap
24WPW10250553 Whirlpool O-Ring
26W10250558 Whirlpool Bracket Assembly
