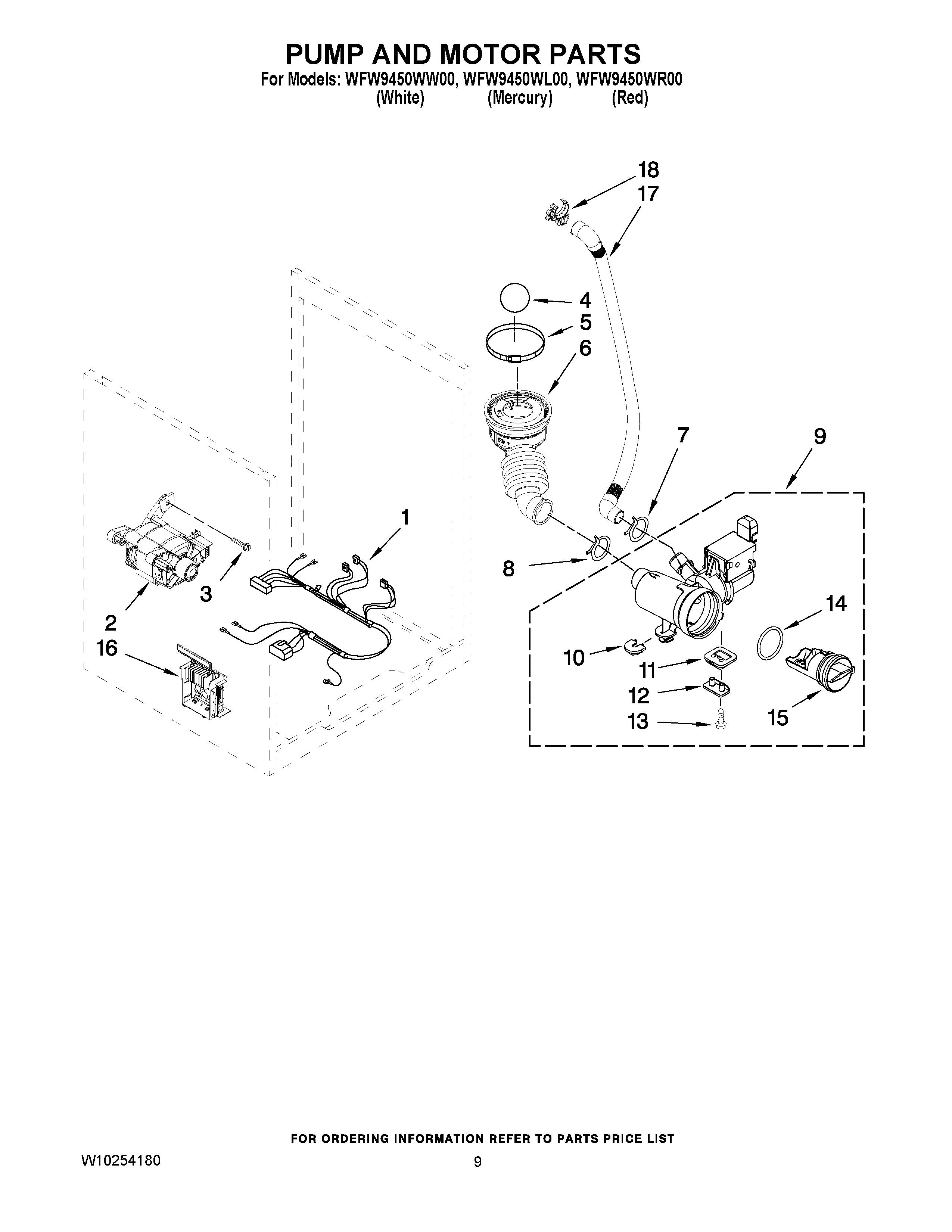

WFW9450WW00 06 – PUMP AND MOTOR PARTS

Products

Position	Product
1	Harness, Motor
2	WPW10140583 Whirlpool Drive Motor
3	8540134 Whirlpool Screw
4	W10121657 Whirlpool Ball
5	WP696392 Whirlpool Hose Clamp
6	WPW10467168 Whirlpool Hose Assembly
7	WP356138 Whirlpool Hose Clamp
8	WP616099 Whirlpool Clamp
10	W10034820 Whirlpool Grommet
11	W10034830 Whirlpool Grommet
12	8540033 Whirlpool Cap
13	8533964 Whirlpool Screw
14	WPW10730972 Whirlpool Washer Water Pump
16	WPW10384846-includeCORE Whirlpool WPW10384846 Refrigerator Electronic Control Board + Core
17	WPW10003250 Whirlpool Hose
18	8182209 Whirlpool Clip
