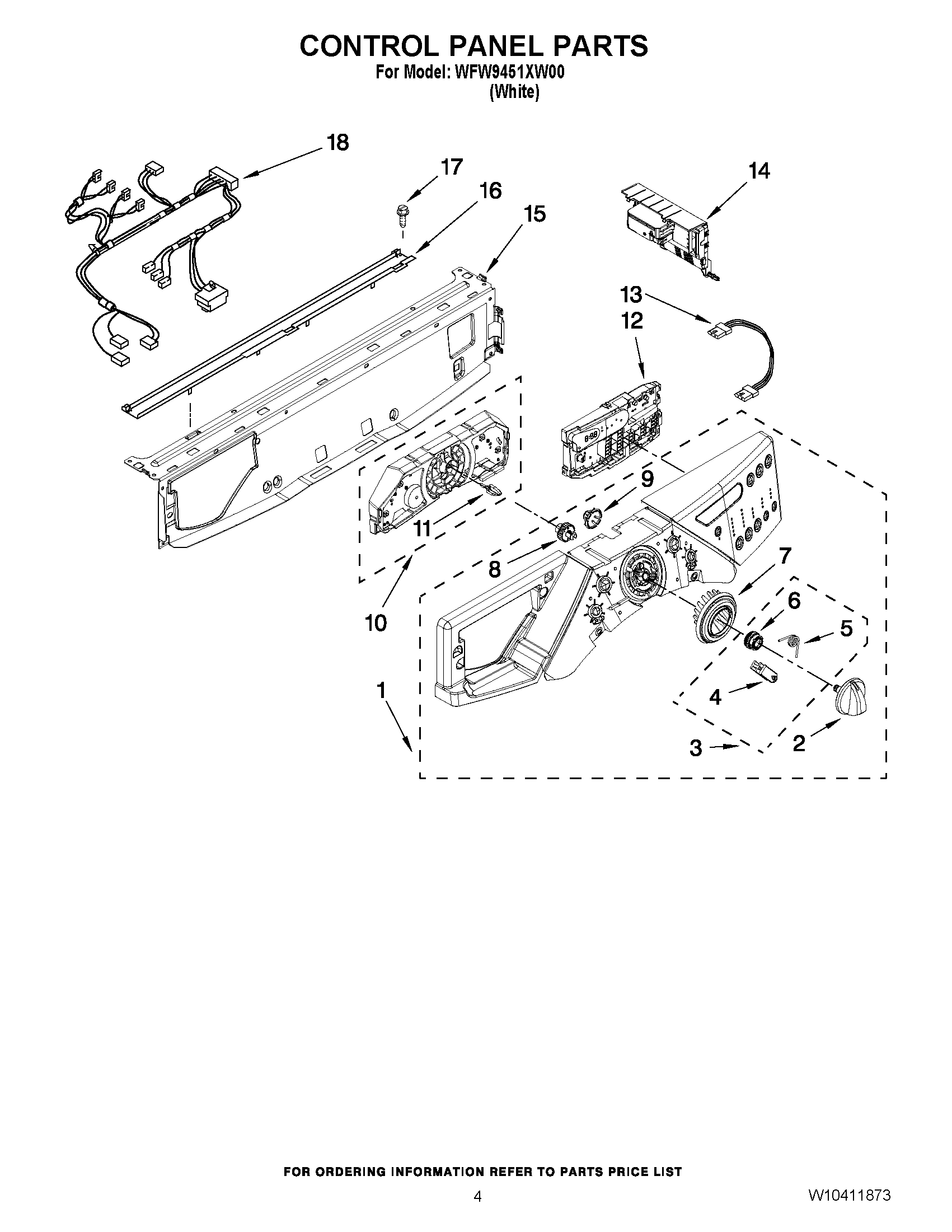

WFW9451XW00 03 – CONTROL PANEL PARTS

Products

Position	Product
1	PANEL-CONTROL
2	W10190685 Whirlpool Knob Assembly
3	Wheel, Detent Kit (Includes Item 9)
4	Wheel, Rast (2) (Service In Kit Only)
5	Spring, Knob (2) (Service In Kit Only)
6	Wheel, Detent (Service In Kit Only)
7	Ring, Knob Light (Includes Item 9)
8	W10131381 Whirlpool Wheel
9	Retainer, Snap
10	USER INTERFACE, CENTER
11	Adapter, Encoder Wheel
13	W10852624 Whirlpool Wire Harness
14	WPW10489668 Whirlpool Electronic Control Board
15	W10059240 Whirlpool Bracket Assembly
16	WP8183204 Whirlpool Diverter
17	WP488729 Whirlpool Refrigerator Door Screw
18	W10294894 Whirlpool Wire Harness
