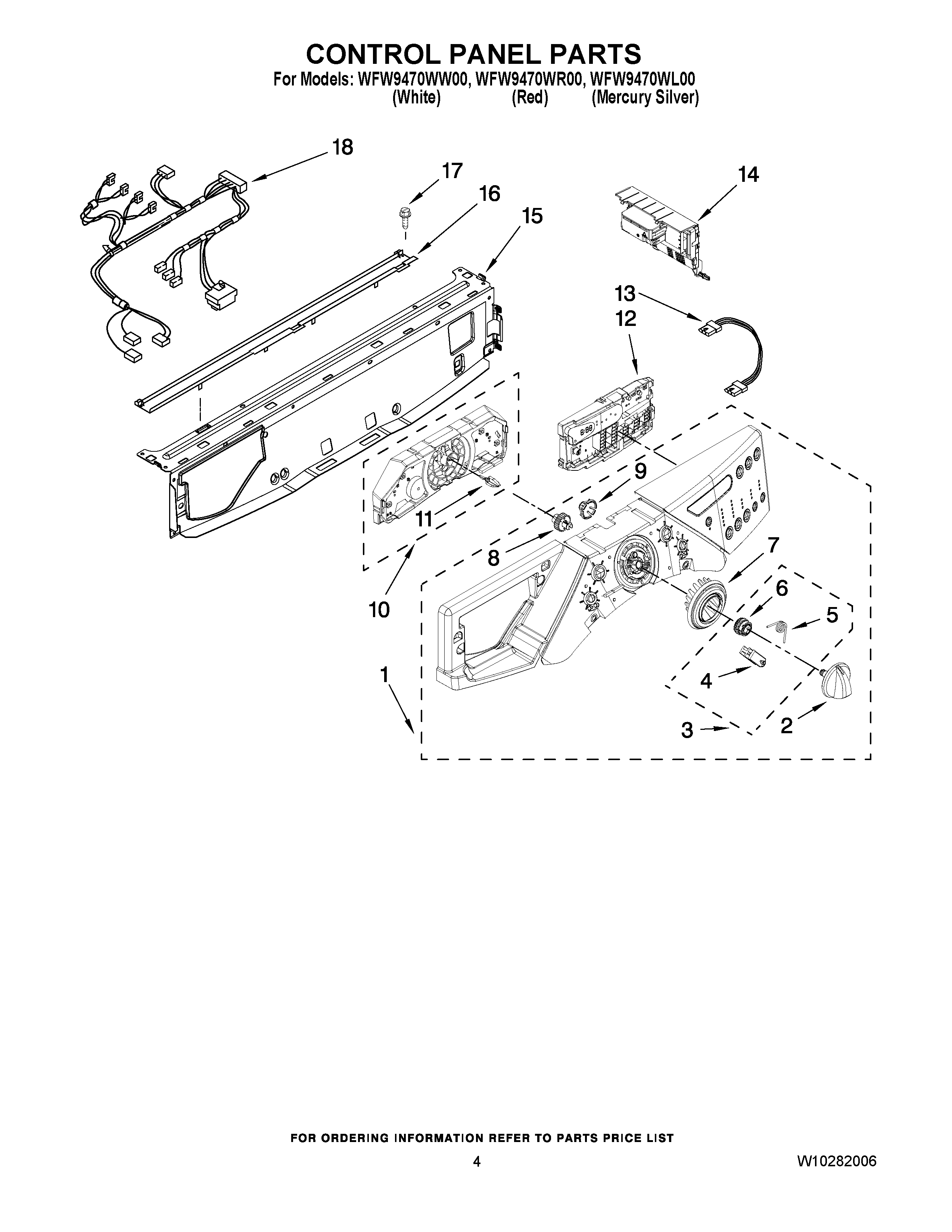

WFW9470WR00 03 – CONTROL PANEL PARTS

Products

Position	Product
1	PANEL-CONTROL (MERCURY SILVER)
1	PANEL-CONTROL (RED)
1	PANEL-CONTROL (WHITE)
2	W10190685 Whirlpool Knob Assembly
3	Wheel, Detent Kit (Includes Item 9)
4	Wheel, Rast (2) (Service In Kit Only)
5	Spring, Knob (2) (Service In Kit Only)
6	Wheel, Detent (Service In Kit Only)
7	Ring, Knob Light (Includes Item 9)
8	W10131381 Whirlpool Wheel
9	Retainer, Snap
10	USER INTERFACE, CENTER
11	Adapter, Encoder Wheel
13	W10852624 Whirlpool Wire Harness
14	MICROCOMPUTER, MACHINE CONTROL
15	W10059240 Whirlpool Bracket Assembly
16	WP8183204 Whirlpool Diverter
17	WP488729 Whirlpool Refrigerator Door Screw
18	W10283495 Whirlpool Wire Harness
