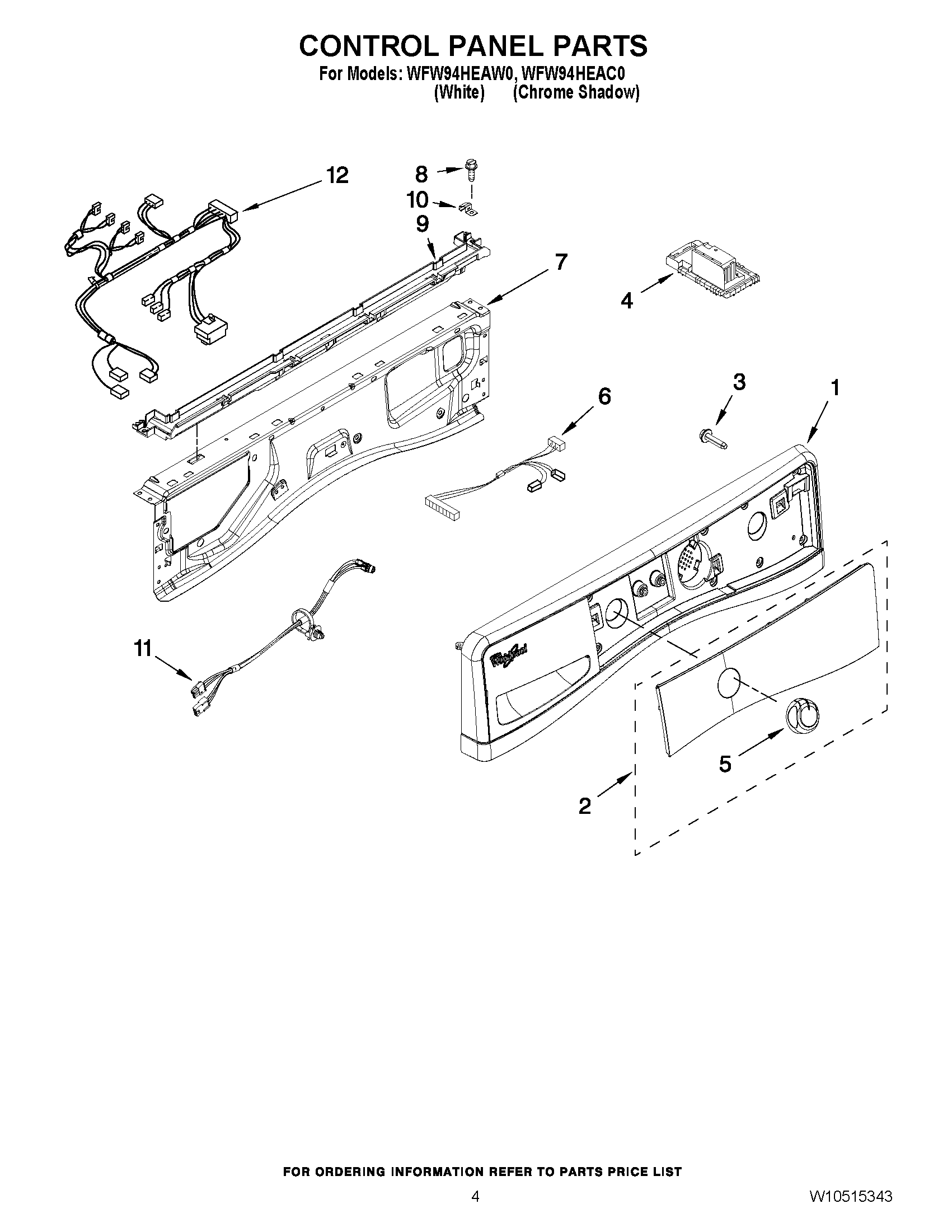

WFW94HEAC0 03 – CONTROL PANEL PARTS

WFW94HEAC0 03 – CONTROL PANEL PARTS

Written by

in

WFW94HEAC0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1ASSEMBLY, CONSOLE (WHITE)
1WPW10463516 Whirlpool Console
2WPW10446418 Whirlpool Control Panel
2W10446420 Whirlpool Control Panel
3W10853898 Whirlpool Screw
4W10422889-includeCORE Whirlpool W10422889 Washer Electronic Control Board + Core
5KNOB ASSEMBLY
6HARNESS, UI JUMPER
7W10208197 Whirlpool Bracket
8WP489464 Whirlpool Refrigerator Screw
9WPW10653575 Whirlpool Channel
10W10317566 Whirlpool Clip
11W10485684 Whirlpool Wire Harness
12W10422437 Whirlpool Wire Harness
