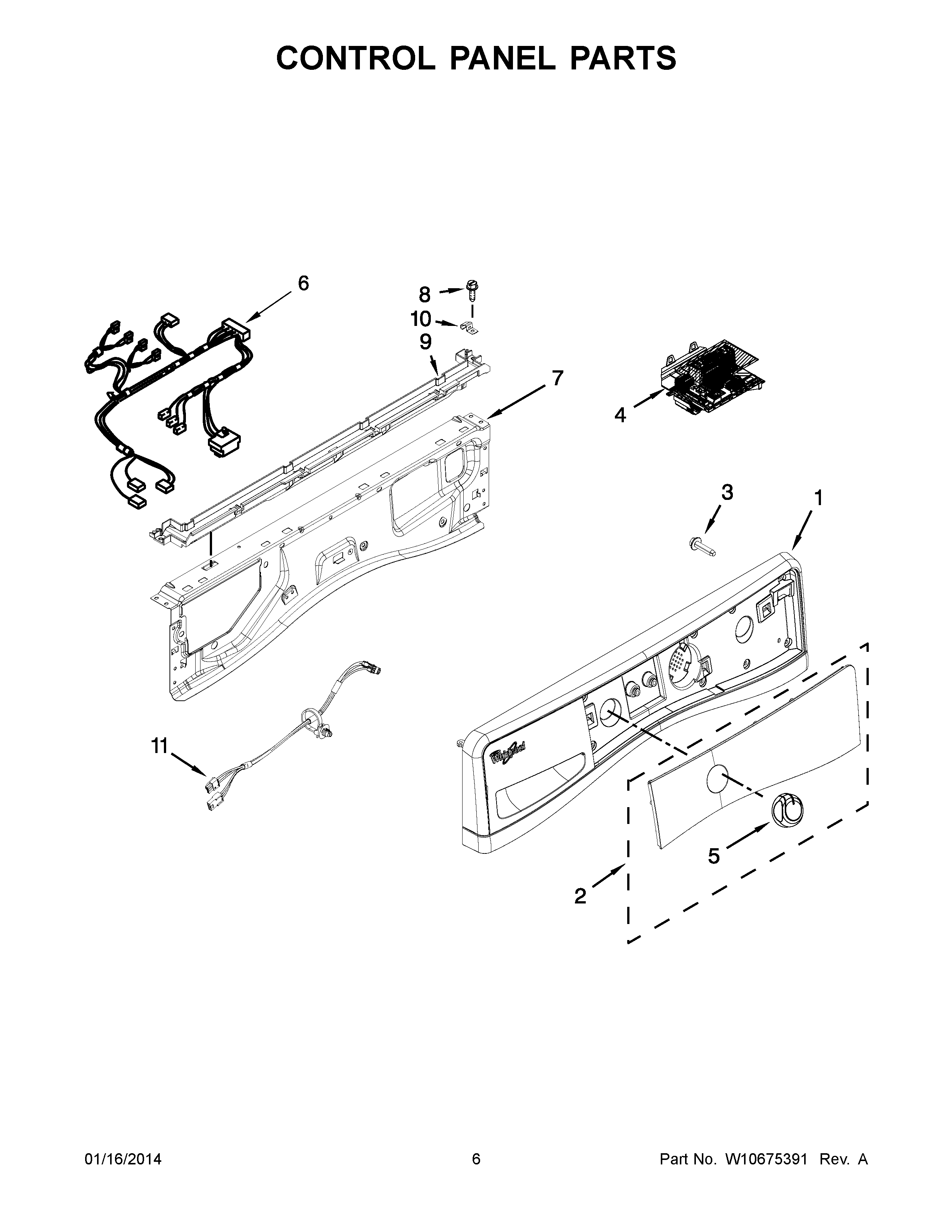

WFW94HEAW2 04 – CONTROL PANEL PARTS

Products

Position	Product
1	ASSEMBLY, CONSOLE (WHITE)
1	WPW10463516 Whirlpool Console
2	ASSEMBLY, IML (WHITE)
2	W10630507 Whirlpool Control Panel
3	W10589828 Whirlpool Screw
4	WPW10692384-includeCORE Whirlpool WPW10692384 Refrigerator Electronic Control Board + Core
5	KNOB ASSEMBLY
6	W10685628 Whirlpool Wire Harness
7	W10208197 Whirlpool Bracket
8	WP489464 Whirlpool Refrigerator Screw
9	WPW10653575 Whirlpool Channel
10	W10317566 Whirlpool Clip
11	W10580186 Whirlpool Wire Harness
