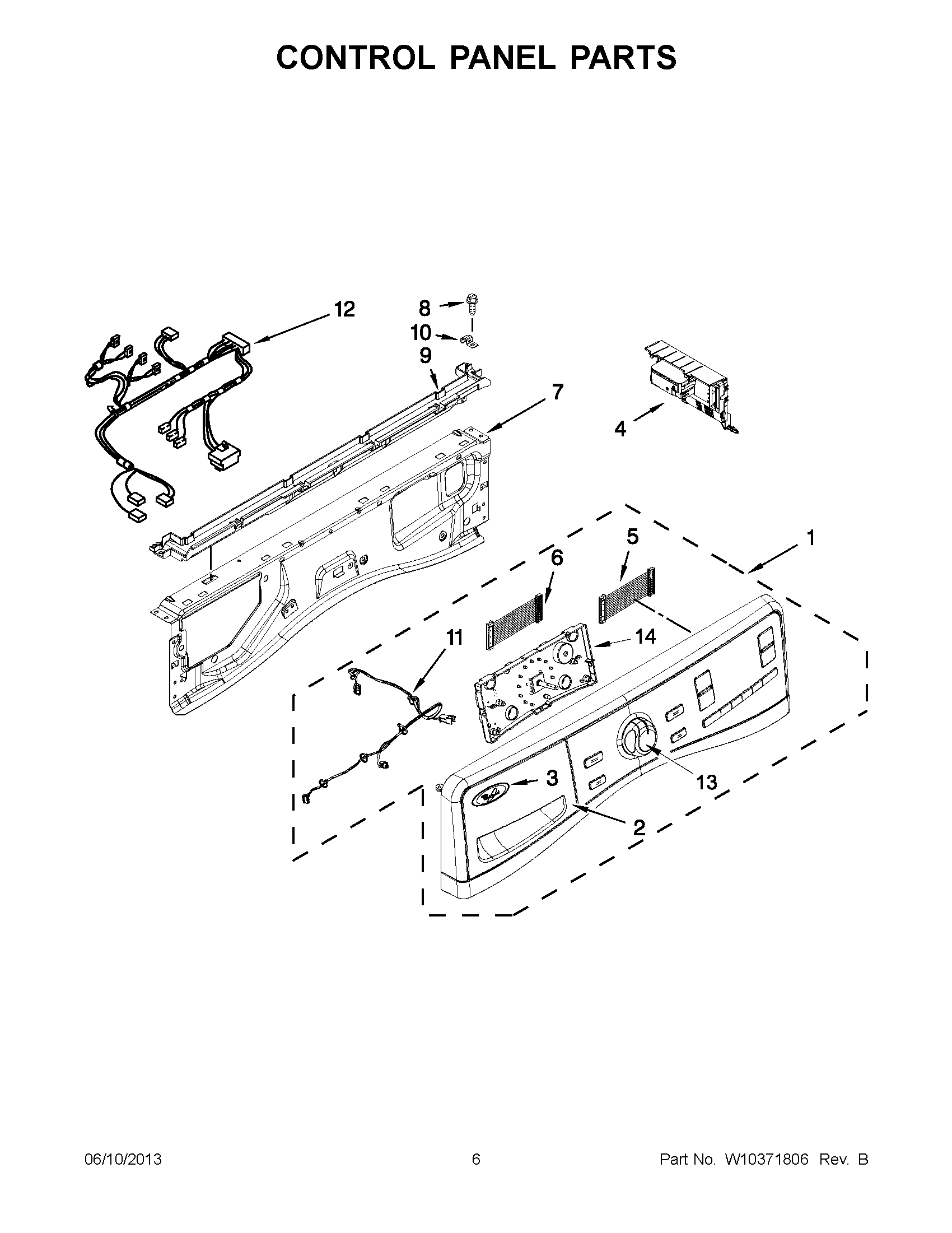

WFW94HEXL1 03 – CONTROL PANEL PARTS

Products

Position	Product
1	CONSOLE ASSSEMBLY (WHITE)
1	CONSOLE ASSSEMBLY (SILVER)
1	CONSOLE ASSSEMBLY (RED)
2	W10839403 Whirlpool Drawer Handle White
2	HANDLE, DISPENSER DRAWER (INCLUDES BADGE) (RED)
2	HANDLE, DISPENSER DRAWER (INCLUDES BADGE) (SILVER)
3	Medallion
4	W10427967 Whirlpool Washer Electronic Control Board + Core
5	W10267937 Whirlpool Wire Harness
6	HARNESS, JUMPER UI
7	W10208197 Whirlpool Bracket
8	WP489464 Whirlpool Refrigerator Screw
9	WPW10653575 Whirlpool Channel
10	W10317566 Whirlpool Clip
11	W10271989 Whirlpool Wire Harness
12	HARNESS, WIRING (UPPER MAIN)
13	WPW10251394 Whirlpool Knob
14	UI, CENTER (INCLUDES KNOB)
