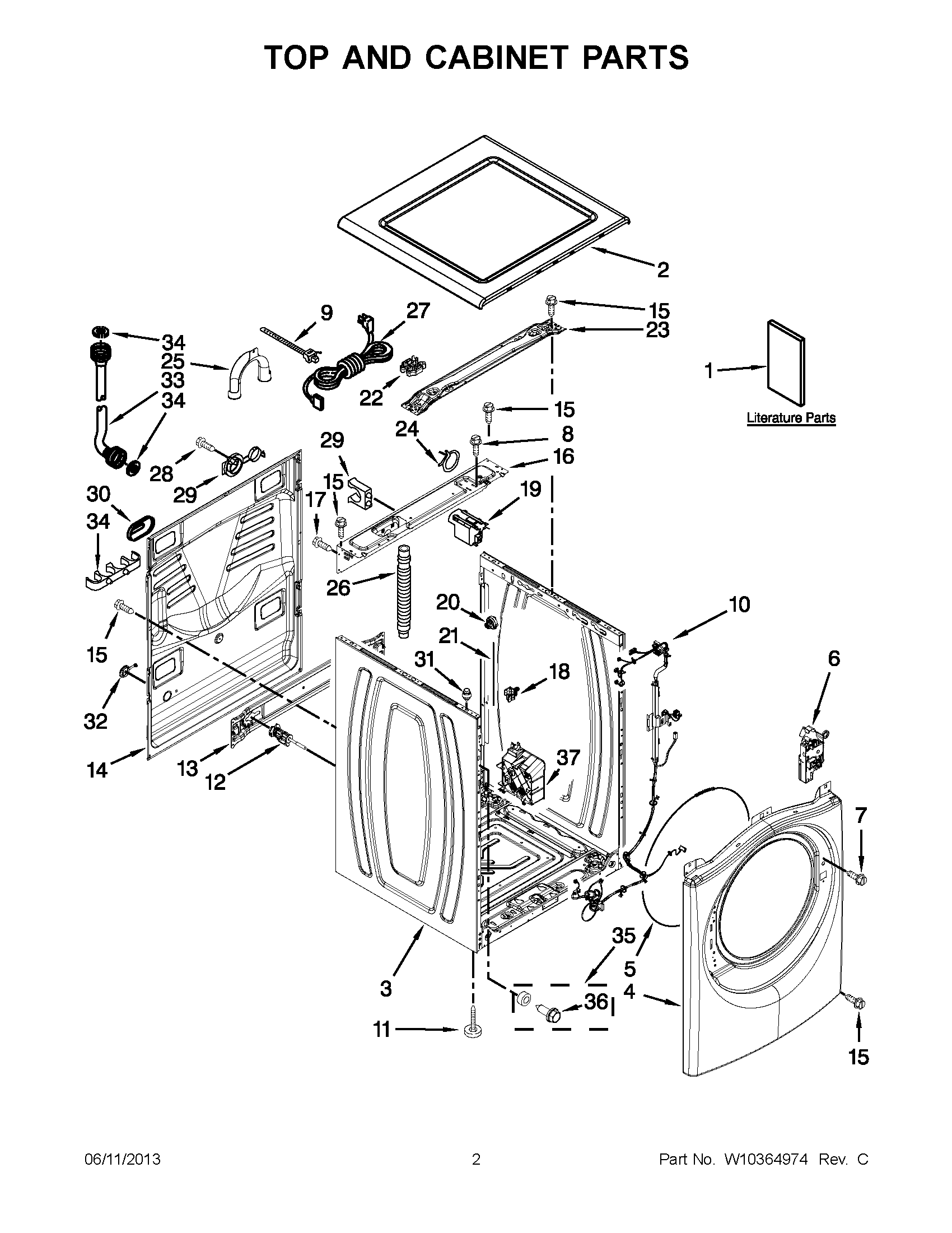

WFW94HEXR0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1TECH SHEET
1ENERGY GUIDE
1INSTALLATION INSTRUCTIONS
1OWNERS MANUAL
2WPW10208373 Whirlpool Top
2WPW10316283 Whirlpool Top Cover
2TOP (RED)
3W11166598 Whirlpool Cabinet
3CABINET (RED)
3W11166595 Whirlpool Cabinet Assembly
4PANEL, FRONT (SILVER)
4PANEL, FRONT (RED)
4WPW10441116 Whirlpool Panel
5CLAMP
6WPW10306374 Whirlpool Latch
7WP8540282 Whirlpool Screw
88540329 Whirlpool Screw
9WPW10339879 Whirlpool Wire Tie
10HARNESS, WIRING (LOWER MAIN)
11WP8563585 Whirlpool Foot Assembly
12W10763470 Whirlpool Bolt
13W10237498 Whirlpool Bracket Assembly
14W11199206 Whirlpool Panel
15WP489464 Whirlpool Refrigerator Screw
16BRACE, REAR
17SCREW, M4.1-1.8 X 57
18WPW10181028 Whirlpool Clip
19WPW10367632 Whirlpool Filter
20WPW10304342 Whirlpool Washer Water Level Switch
21W11044559 Whirlpool Hose
22W10245452 Whirlpool Retainer
23W10467484 Whirlpool Bracket
24WP356138 Whirlpool Hose Clamp
25WPW10280024 Whirlpool Retainer
26W11281268 Whirlpool Hose
27W11035353 Whirlpool Washer Power Cord
28WP3351614 Whirlpool Screw
29W10854051 Whirlpool Cover Assembly
30WP8540268 Whirlpool Cover Assembly
31W10208380 Whirlpool Screw
32W10304004 Whirlpool Cover
33FILL HOSE 5' W/WASHER
33WP89503 Whirlpool Washer Fill Hose
34WP16123 Whirlpool Washer
35W10298211 Whirlpool Stud
36W10323182 Whirlpool Spacer
37WPW10374126 Whirlpool Control Board + Core
