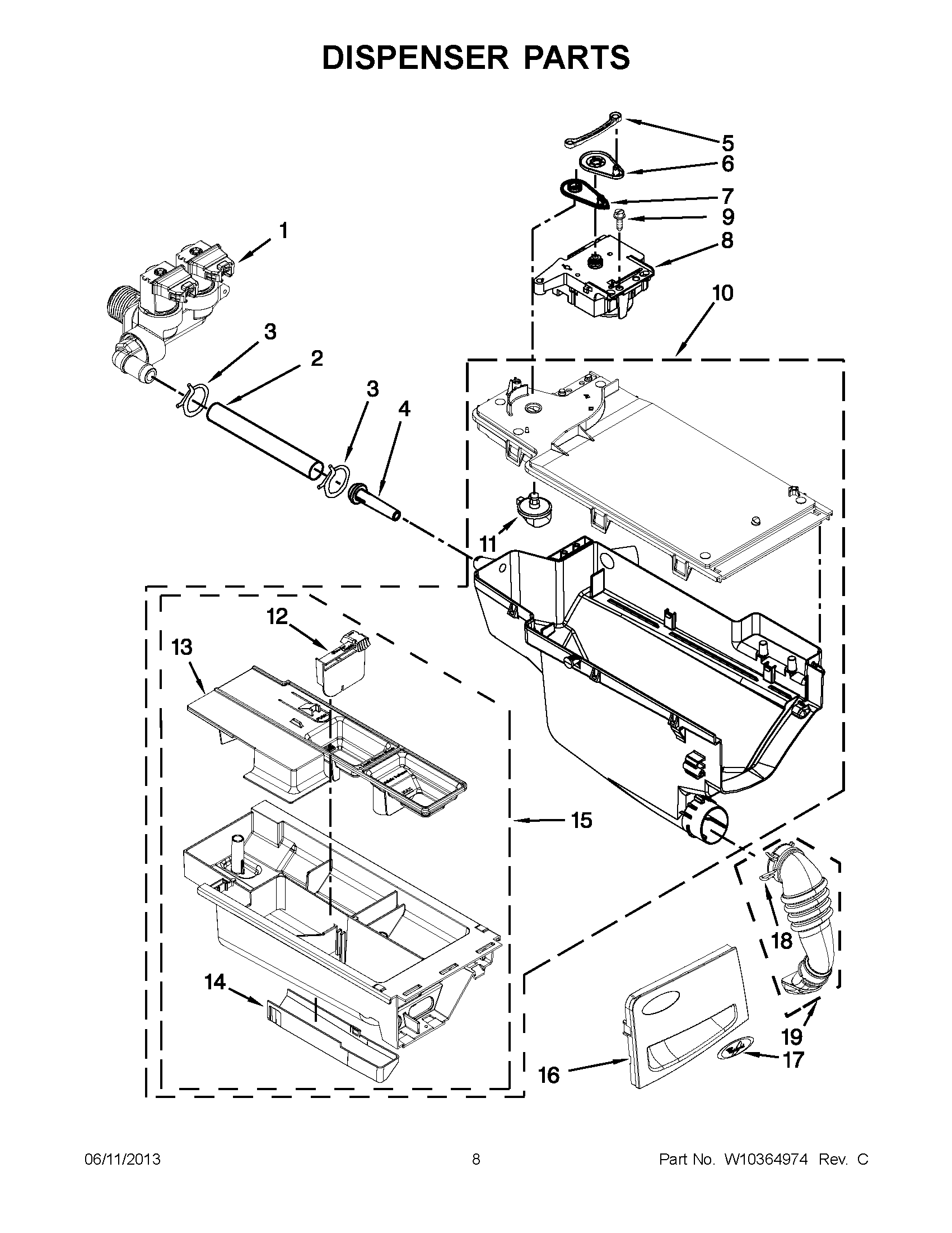

WFW94HEXR0 04 – DISPENSER PARTS

Products

Position	Product
1	WPW10289387 Whirlpool Washer Valve
2	W10538835 Whirlpool Hose
3	WP596669 Whirlpool Hose Clamp
4	WP8183181 Whirlpool Nozzle
5	WP8183183 Whirlpool Lever
6	WP8183184 Whirlpool Actuator Cam
7	WPW10183517 Whirlpool Lever
8	WPW10352973 Whirlpool DIS Switch
9	WP8540282 Whirlpool Screw
10	HOUSING, DISPENSER ASSEMBLY
11	WP8181712 Whirlpool Nozzle
12	WPW10121596 Whirlpool Divider
13	SIPHON, BLEACH/SOFTENER
14	W10003140 Whirlpool Cover
15	WPW10256686 Whirlpool Drawer
16	HANDLE, DISPENSER DRAWER (INCLUDES BADGE) (RED)
16	W10839403 Whirlpool Drawer Handle White
16	HANDLE, DISPENSER DRAWER (INCLUDES BADGE) (SILVER)
17	Medallion
18	W10239910 Whirlpool Clamp
19	WPW10239966 Whirlpool Hose
