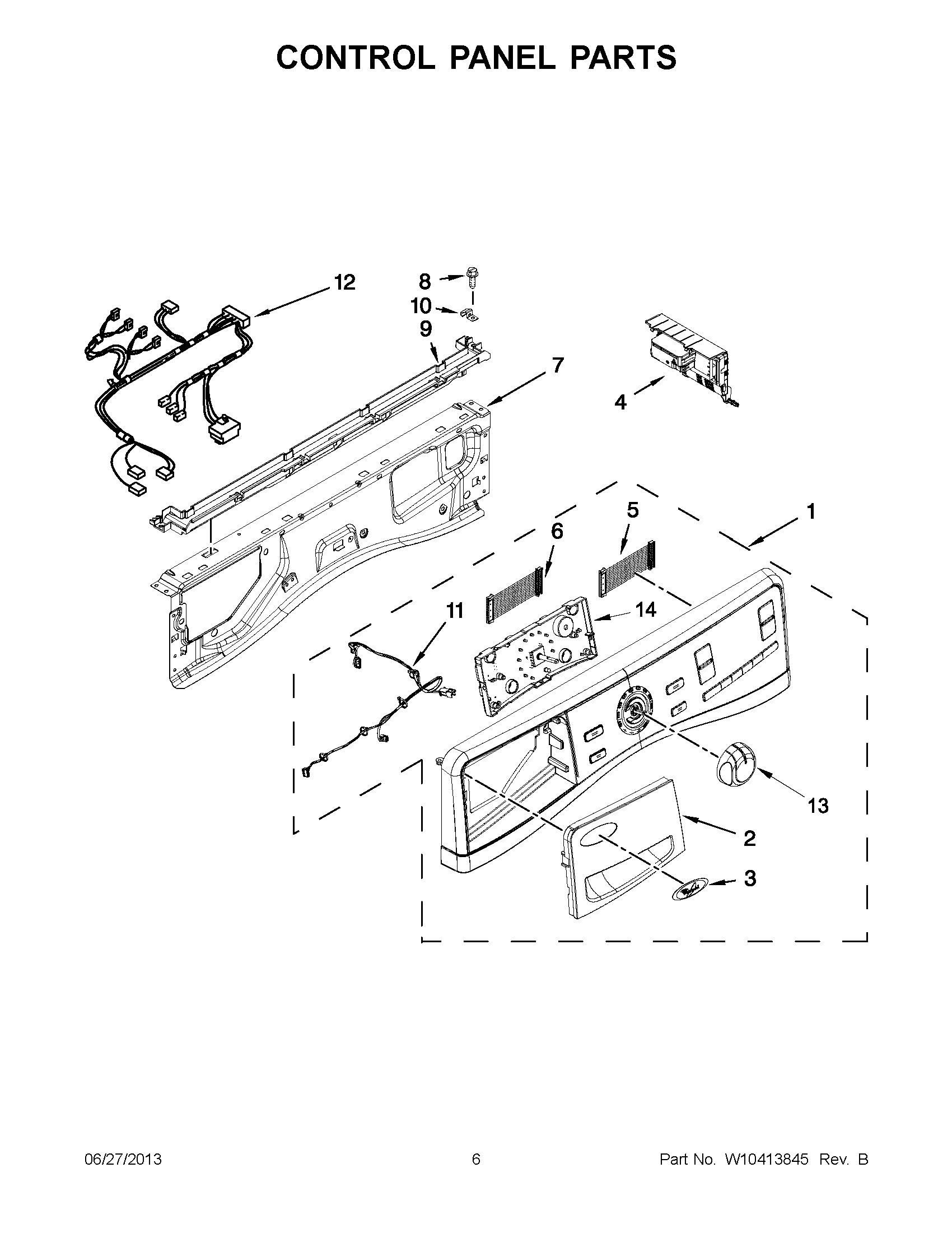

WFW94HEXW2 03 – CONTROL PANEL PARTS

WFW94HEXW2 03 – CONTROL PANEL PARTS

Written by

in

WFW94HEXW2 03 – CONTROL PANEL PARTS

Products

PositionProduct
1CONSOLE ASSSEMBLY (RED)
1CONSOLE ASSSEMBLY (WHITE)
1CONSOLE ASSSEMBLY (SILVER)
2HANDLE, DISPENSER DRAWER (INCLUDES BADGE) (SILVER)
2HANDLE, DISPENSER DRAWER (INCLUDES BADGE) (RED)
2W10839403 Whirlpool Drawer Handle White
3Medallion
4W10427967 Whirlpool Washer Electronic Control Board + Core
5W10267937 Whirlpool Wire Harness
6HARNESS, JUMPER UI
7W10208197 Whirlpool Bracket
8WP489464 Whirlpool Refrigerator Screw
9WPW10653575 Whirlpool Channel
10W10317566 Whirlpool Clip
11W10271989 Whirlpool Wire Harness
12HARNESS, WIRING (UPPER MAIN)
13WPW10251394 Whirlpool Knob
14UI, CENTER (INCLUDES KNOB)
