WFW94HEXW2 04 – DISPENSER PARTS

WFW94HEXW2 04 – DISPENSER PARTS

Written by

in

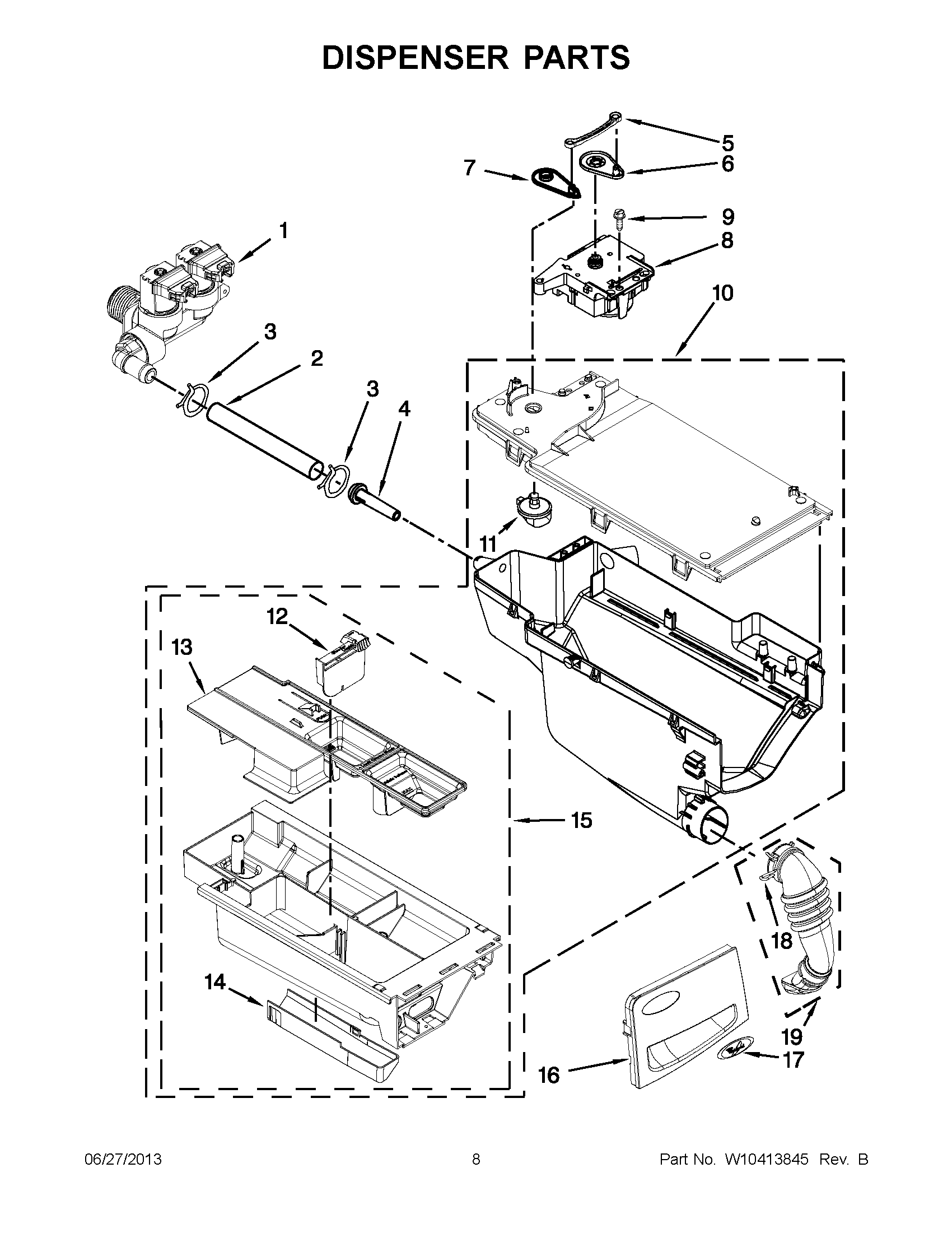

WFW94HEXW2 04 – DISPENSER PARTS

Products

PositionProduct
1WPW10289387 Whirlpool Washer Valve
2W10538835 Whirlpool Hose
3WP596669 Whirlpool Hose Clamp
4WP8183181 Whirlpool Nozzle
5WP8183183 Whirlpool Lever
6WP8183184 Whirlpool Actuator Cam
7WPW10183517 Whirlpool Lever
8WPW10352973 Whirlpool DIS Switch
9WP8540282 Whirlpool Screw
10HOUSING, DISPENSER ASSEMBLY
11WP8181712 Whirlpool Nozzle
12WPW10121596 Whirlpool Divider
13SIPHON, BLEACH/SOFTENER
14W10003140 Whirlpool Cover
15WPW10256686 Whirlpool Drawer
16HANDLE, DISPENSER DRAWER (INCLUDES BADGE) (RED)
16W10839403 Whirlpool Drawer Handle White
16HANDLE, DISPENSER DRAWER (INCLUDES BADGE) (SILVER)
17Medallion
18W10239910 Whirlpool Clamp
19WPW10239966 Whirlpool Hose
