WFW94HEXW2 06 – PUMP PARTS – Aparts

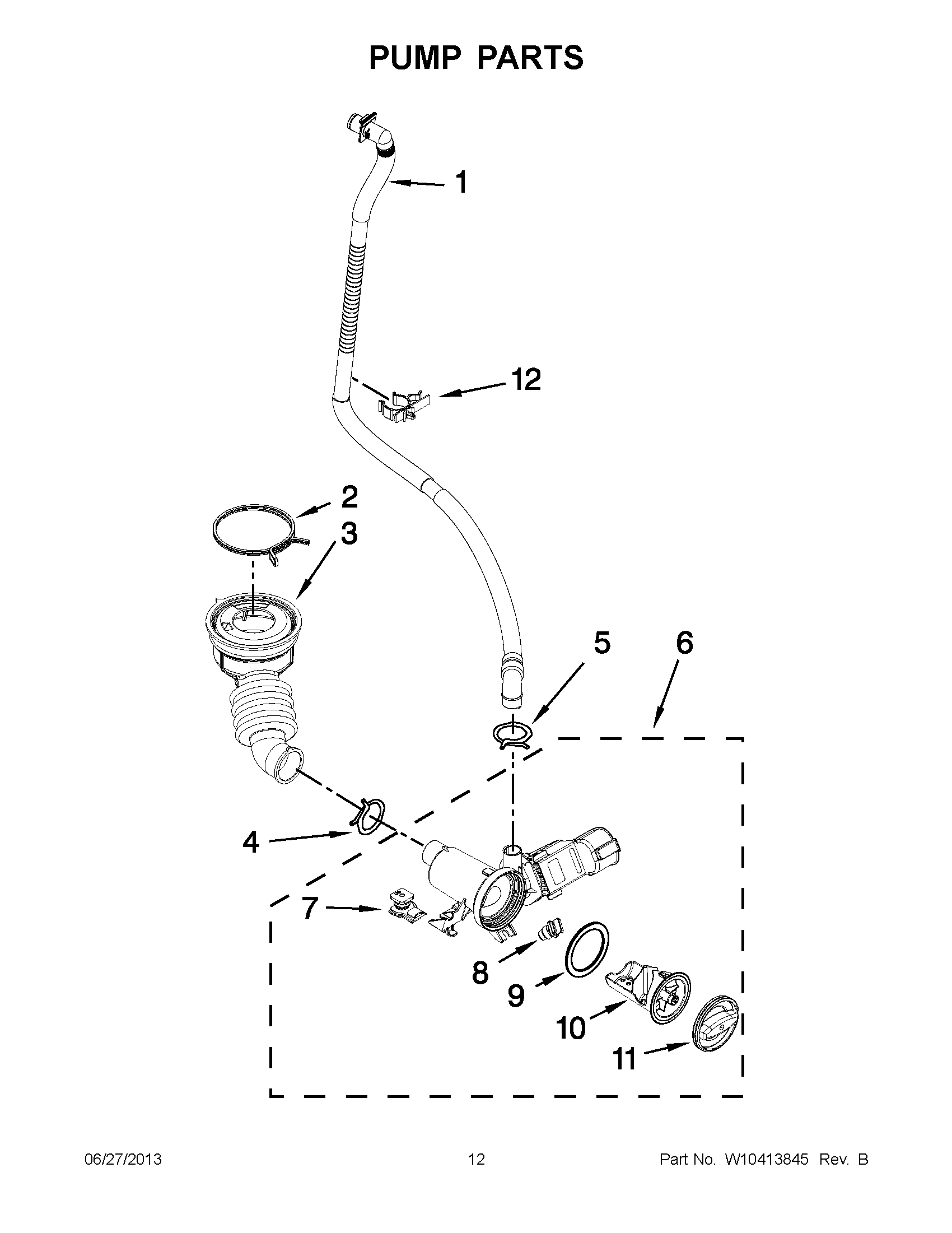

WFW94HEXW2 06 – PUMP PARTS

Products

Position	Product
1	WPW10267642 Whirlpool Hose
2	WP696392 Whirlpool Hose Clamp
3	WPW10467168 Whirlpool Hose Assembly
4	W10273036 Whirlpool Hose Clamp
5	WP356138 Whirlpool Hose Clamp
6	WPW10241025 Whirlpool Water Pump
7	GROMMET, DAMPER (REAR)
8	WPW10526202 Whirlpool Grommet
9	Seal, Filter Cap
10	W10241027 Whirlpool Filter
11	CAP, FILTER
12	W10441646 Whirlpool Clip Assembly
