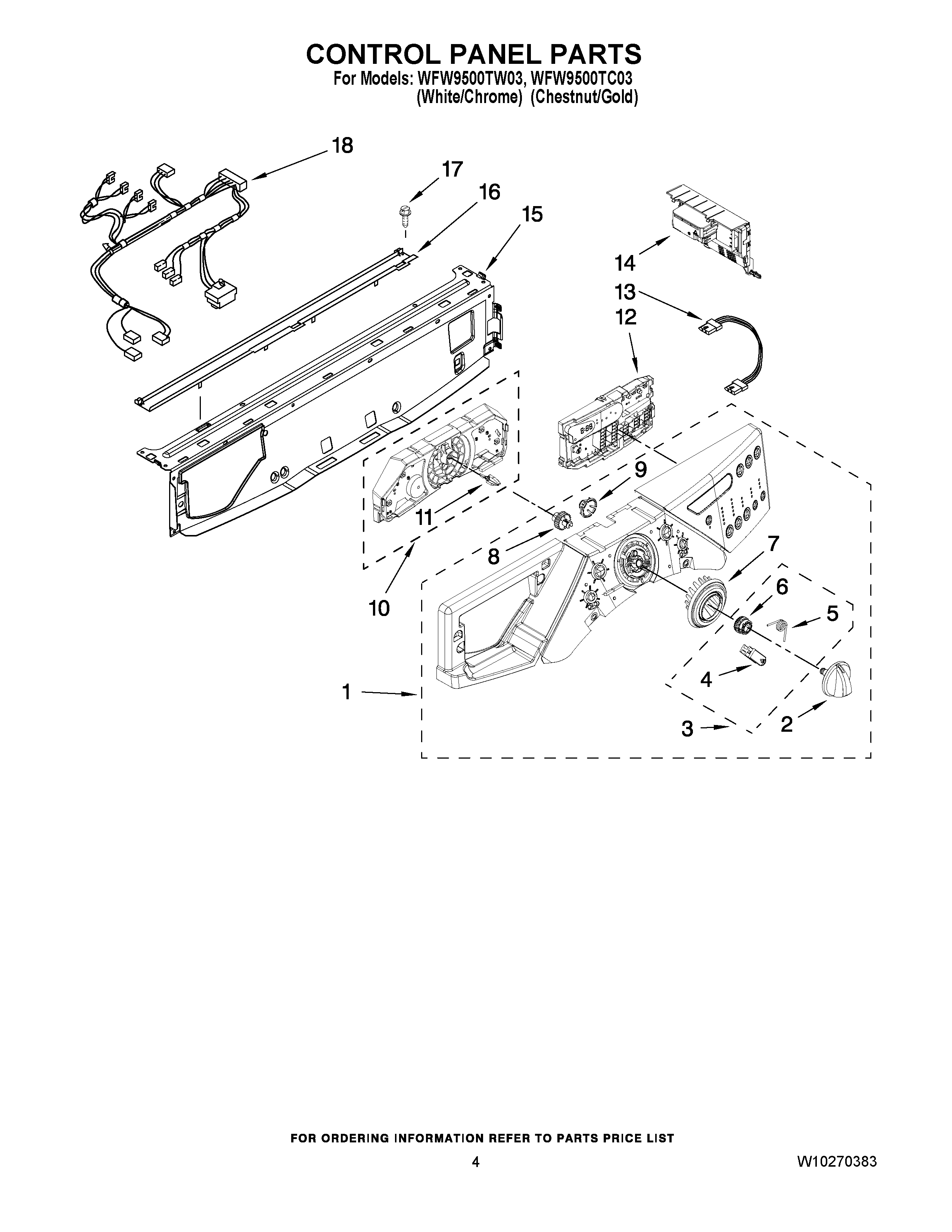

WFW9500TC03 03 – CONTROL PANEL PARTS

Products

Position	Product
1	Panel, Control (Chestnut)
1	Panel, Control (White)
2	Knob, Control (Includes Item 9) (White)
2	Knob, Control (Includes Item 9) (Chestnut)
3	Wheel, Detent Kit (Includes Item 9)
4	Wheel, Rast (2) (Service In Kit Only)
5	Spring, Knob (2) (Service In Kit Only)
6	Wheel, Detent (Service In Kit Only)
7	Ring, Knob Light (Includes Item 9)
8	W10131381 Whirlpool Wheel
9	Retainer, Snap
10	User Interface, Center
11	Adapter, Encoder Wheel
12	User Interface, Right
13	Harness, Wiring (User Interface)
14	Microcomputer, Machine Control
15	W10059240 Whirlpool Bracket Assembly
16	WP8183204 Whirlpool Diverter
17	WP488729 Whirlpool Refrigerator Door Screw
18	Harness, Wiring (Upper Main)
