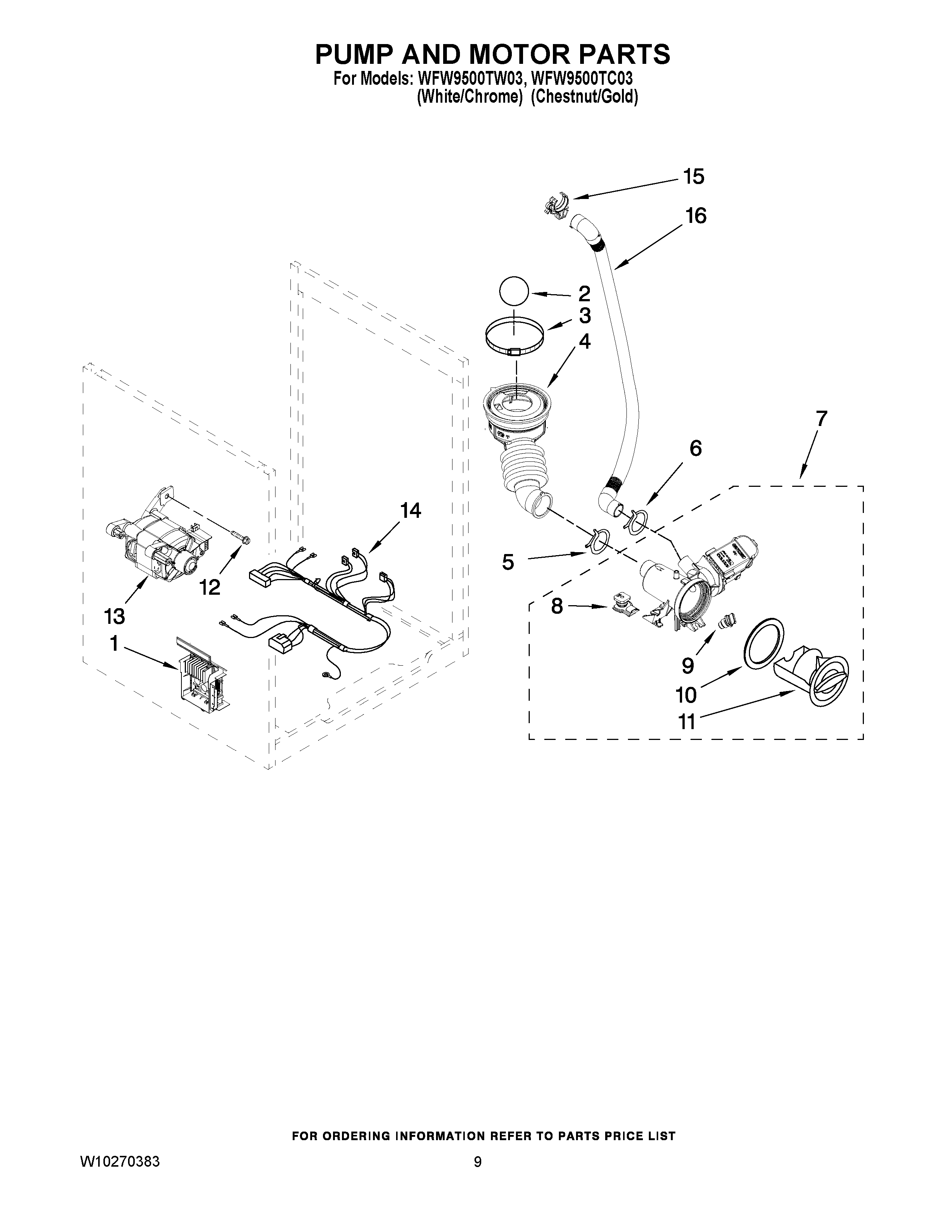

WFW9500TC03 06 – PUMP AND MOTOR PARTS

Products

Position	Product
1	WP8183196 Whirlpool Electronic Control Board + Core
2	W10121657 Whirlpool Ball
3	WP696392 Whirlpool Hose Clamp
4	WPW10467168 Whirlpool Hose Assembly
5	WP285655 Whirlpool Hose Clamp
6	WP3367052 Whirlpool Hose Clamp
7	280187 Whirlpool Washer Electronic Water Drain Pump
8	Grommet, Damper (Rear)
9	WPW10526202 Whirlpool Grommet
10	Seal, Filter Cap
11	Cap, Filter
12	Bolt, Motor
13	Motor
14	WPW10189680 Whirlpool Wire Harness
15	8182209 Whirlpool Clip
16	WPW10003250 Whirlpool Hose
