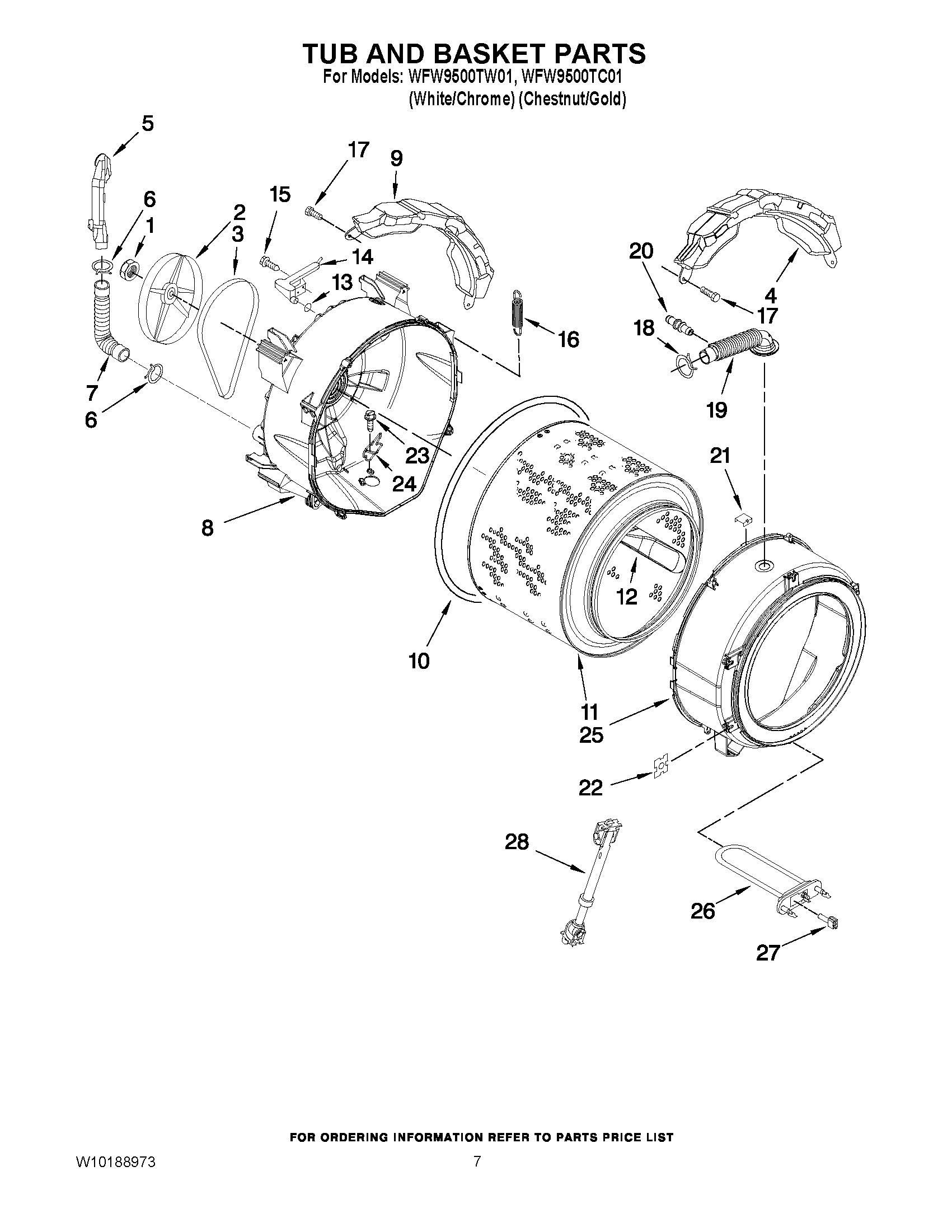

WFW9500TW01 05 – TUB AND BASKET PARTS

Products

Position	Product
1	WPW10283361 Whirlpool Nut
2	WP8182650 Whirlpool Pulley
3	WPW10388414 Whirlpool Washer Drive Belt
4	WPW10008880 Whirlpool Counterweight Assembly
5	Pipe, Ventilation
6	Clamp
7	WP8181743 Whirlpool Hose Assembly
8	W10772614 Whirlpool Outer Tub Assembly
9	Counterweight, Rear
10	Gasket, Tub
11	Basket
12	WP8182233 Whirlpool Baffle Assembly
13	WPW10250553 Whirlpool O-Ring
14	Airtrap
15	SCREW
16	W10135004 Whirlpool Spring Assembly
17	Bolt
18	WP3367052 Whirlpool Hose Clamp
19	HOSE, INLET VALVE TO STEAMER SIPHON
20	Connector, Overflow Hose
21	WP8540092 Whirlpool Clamp
22	WP8182512 Whirlpool Nut Assembly
23	SCREW
24	W10250558 Whirlpool Bracket Assembly
25	W10772607 Whirlpool Outer Tub
26	WPW10426377 Whirlpool Heater Assembly
27	WPW10467289 Whirlpool Sensor
28	W10822553 Whirlpool Washer Shock Absorber
