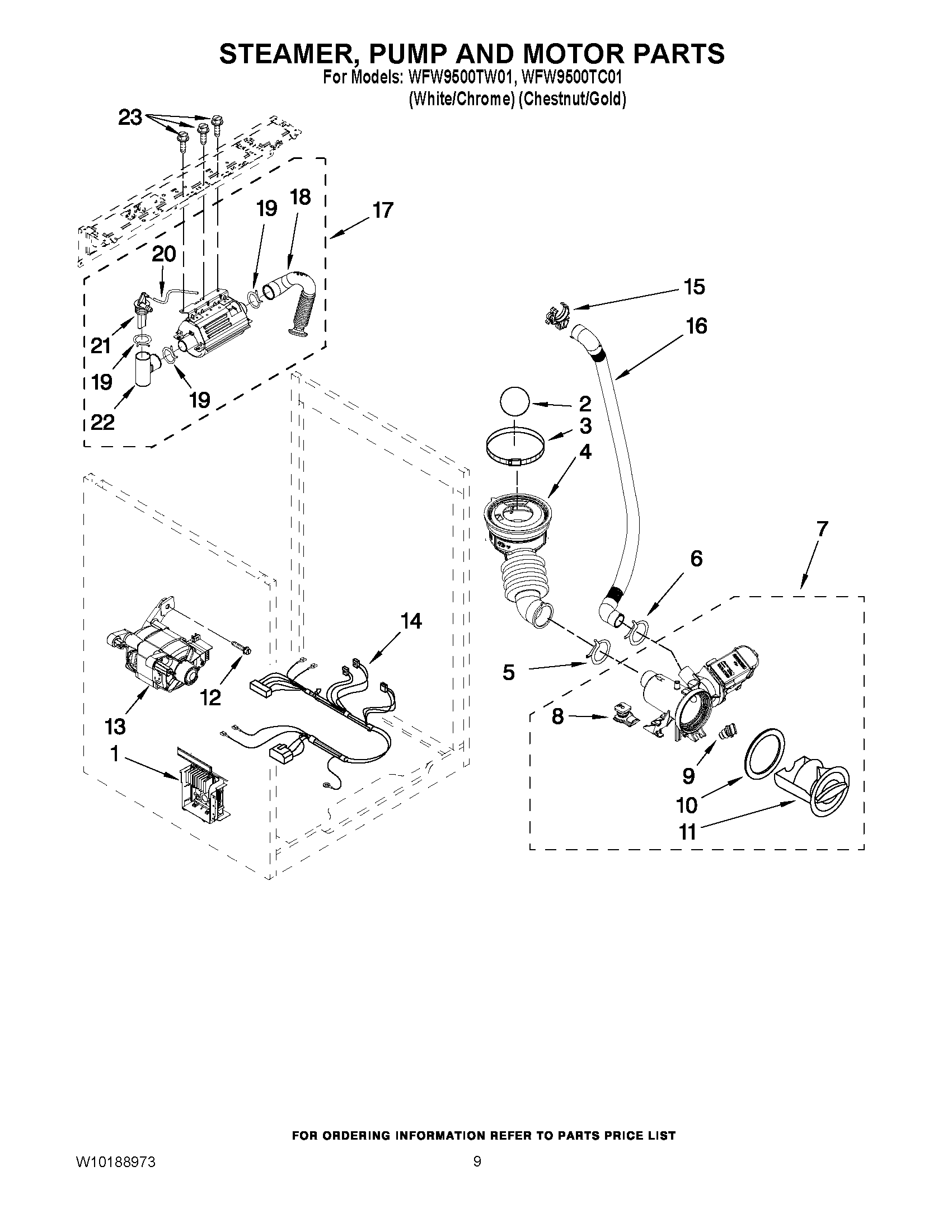

WFW9500TW01 06 – STEAMER, PUMP AND MOTOR PARTS

Products

Position	Product
1	WP8183196 Whirlpool Electronic Control Board + Core
2	W10121657 Whirlpool Ball
3	WP696392 Whirlpool Hose Clamp
4	WPW10467168 Whirlpool Hose Assembly
5	WP285655 Whirlpool Hose Clamp
6	WP3367052 Whirlpool Hose Clamp
7	280187 Whirlpool Washer Electronic Water Drain Pump
8	Grommet, Damper (Rear)
9	WPW10526202 Whirlpool Grommet
10	Seal, Filter Cap
11	Cap, Filter
12	Bolt, Motor
13	Motor
14	WPW10189680 Whirlpool Wire Harness
15	8182209 Whirlpool Clip
16	WPW10003250 Whirlpool Hose
17	Steamer, Complete Assembly (Includes Item 20 On Page 7)
18	W10156132 Whirlpool Hose
20	Hose, Overflow
21	W10156250 Whirlpool Cap
22	W10156251 Whirlpool Tank
23	WP488729 Whirlpool Refrigerator Door Screw
