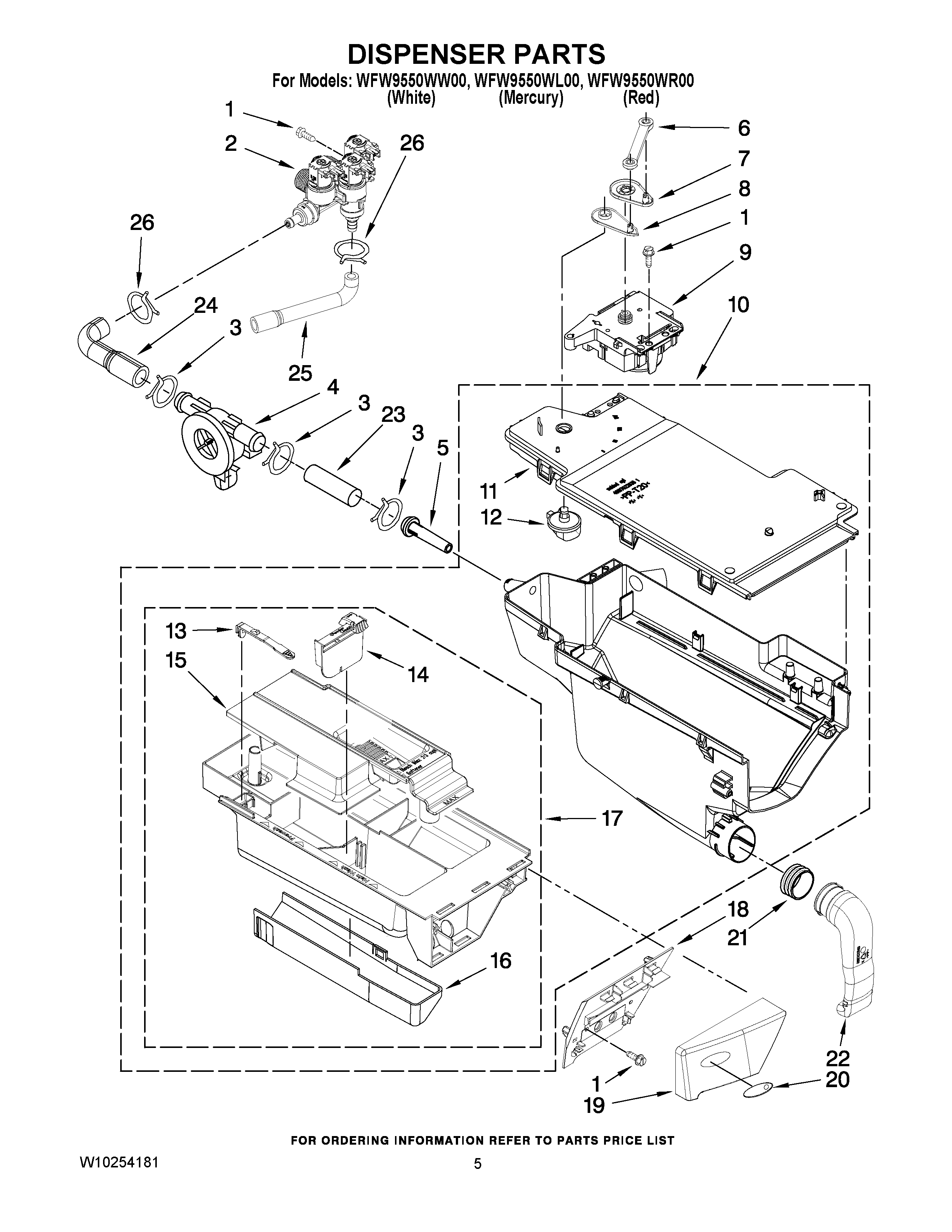

WFW9550WR00 04 – DISPENSER PARTS

Products

Position	Product
1	WP8540282 Whirlpool Screw
2	WPW10247305 Whirlpool Valve
3	WP596669 Whirlpool Hose Clamp
4	FLOWMETER WASHER INLET
5	WP8183181 Whirlpool Nozzle
6	WP8183183 Whirlpool Lever
7	WP8183184 Whirlpool Actuator Cam
8	WPW10161052 Whirlpool Dispenser Lever Connection
9	WPW10352973 Whirlpool DIS Switch
10	Dispenser, Complete (Includes Item 8)
11	Plate, Distribution
12	WP8181712 Whirlpool Nozzle
13	WP8181721 Whirlpool Retainer
14	WPW10121596 Whirlpool Divider
15	W10121598 Whirlpool Dispenser Assembly
16	W10003140 Whirlpool Cover
17	WPW10015190 Whirlpool Drawer
18	WPW10156617 Whirlpool Bracket
19	HANDLE, DRAWER (INCLUDES ITEMS 18 & 20) (WHITE)
19	HANDLE, DRAWER (INCLUDES ITEMS 18 & 20) (RED)
19	HANDLE, DRAWER (INCLUDES ITEMS 18 & 20) (MERCURY)
20	Medallion
21	WP8181747 Whirlpool Seal Assembly
22	WPW10005300 Whirlpool Hose
23	Hose, Nozzle Inlet
24	8183182 Whirlpool Hose
25	WP8181710 Whirlpool Hose Assembly
26	WP489503 Whirlpool Refrigerator Clamp
