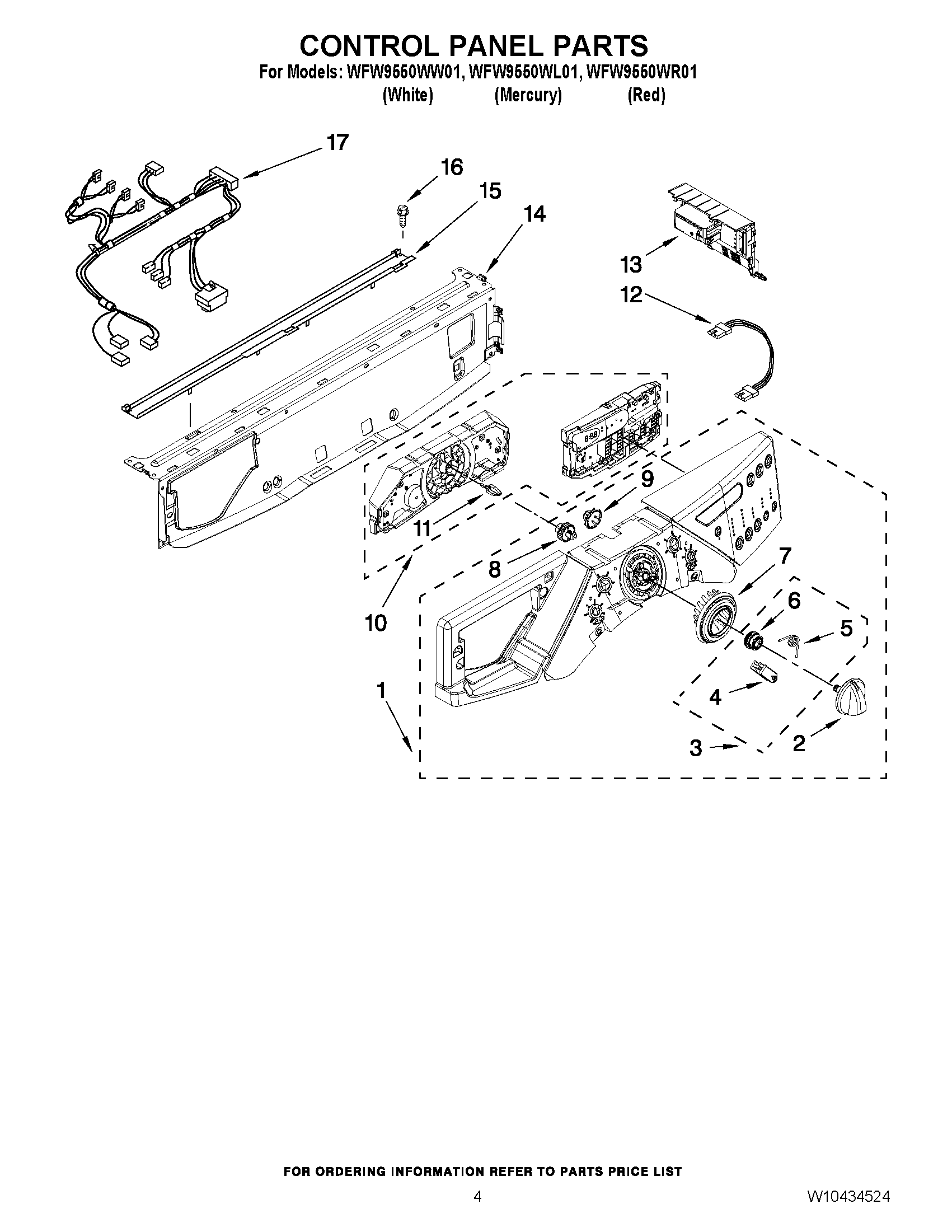

WFW9550WR01 03 – CONTROL PANEL PARTS

Products

Position	Product
1	PANEL, CONTROL (RED)
1	PANEL, CONTROL (MERCURY)
1	PANEL, CONTROL (WHITE)
2	W10190685 Whirlpool Knob Assembly
3	Wheel, Detent Kit (Includes Item 9)
4	Wheel, Rast (2) (Service In Kit Only)
5	Spring, Knob (2) (Service In Kit Only)
6	Wheel, Detent (Service In Kit Only)
7	Ring, Knob Light (Includes Item 9)
8	W10131381 Whirlpool Wheel
9	Retainer, Snap
10	USER INTERFACE, CENTER & RIGHT
11	Adapter, Encoder Wheel
12	W10284710 Whirlpool Wire Harness
13	MICROCOMPUTER, MACHINE CONTROL
14	W10059240 Whirlpool Bracket Assembly
15	WP8183204 Whirlpool Diverter
16	WP489442 Whirlpool Refrigerator Screw
17	W10210828 Whirlpool Wire Harness
