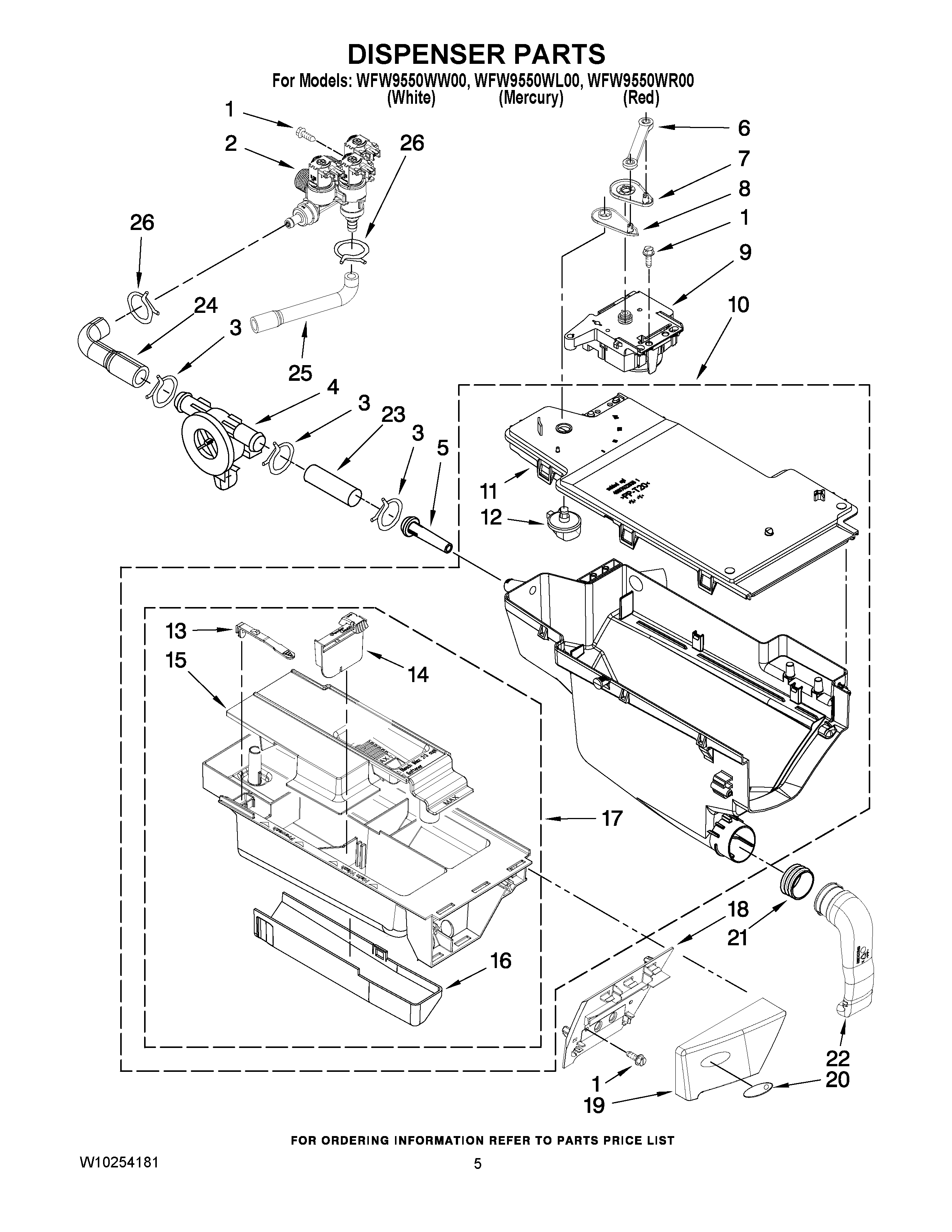

WFW9550WW00 04 – DISPENSER PARTS

WFW9550WW00 04 – DISPENSER PARTS

Written by

in

WFW9550WW00 04 – DISPENSER PARTS

Products

PositionProduct
1WP8540282 Whirlpool Screw
2WPW10247305 Whirlpool Valve
3WP596669 Whirlpool Hose Clamp
4FLOWMETER WASHER INLET
5WP8183181 Whirlpool Nozzle
6WP8183183 Whirlpool Lever
7WP8183184 Whirlpool Actuator Cam
8WPW10161052 Whirlpool Dispenser Lever Connection
9WPW10352973 Whirlpool DIS Switch
10Dispenser, Complete (Includes Item 8)
11Plate, Distribution
12WP8181712 Whirlpool Nozzle
13WP8181721 Whirlpool Retainer
14WPW10121596 Whirlpool Divider
15W10121598 Whirlpool Dispenser Assembly
16W10003140 Whirlpool Cover
17WPW10015190 Whirlpool Drawer
18WPW10156617 Whirlpool Bracket
19HANDLE, DRAWER (INCLUDES ITEMS 18 & 20) (WHITE)
19HANDLE, DRAWER (INCLUDES ITEMS 18 & 20) (RED)
19HANDLE, DRAWER (INCLUDES ITEMS 18 & 20) (MERCURY)
20Medallion
21WP8181747 Whirlpool Seal Assembly
22WPW10005300 Whirlpool Hose
23Hose, Nozzle Inlet
248183182 Whirlpool Hose
25WP8181710 Whirlpool Hose Assembly
26WP489503 Whirlpool Refrigerator Clamp
