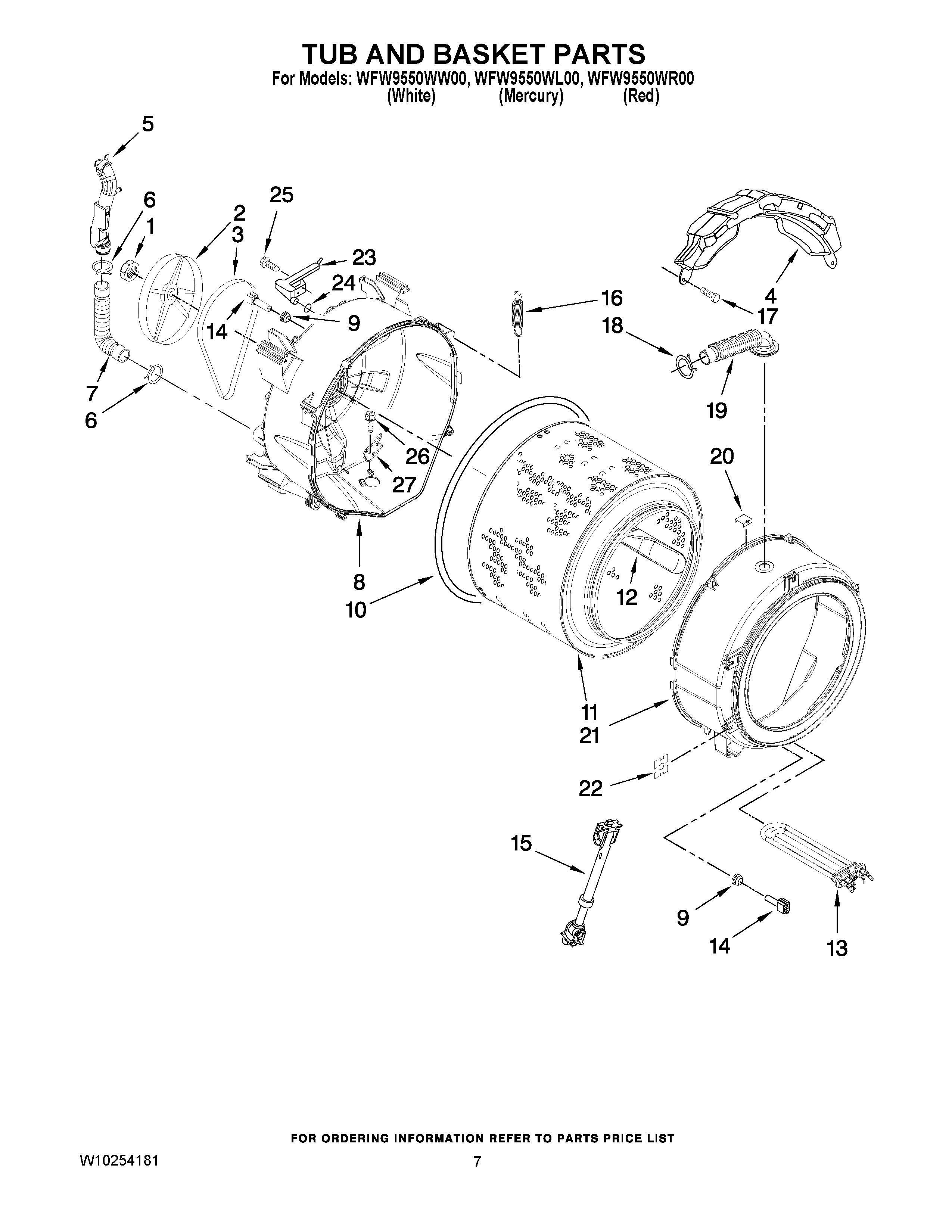

WFW9550WW00 05 – TUB AND BASKET PARTS

Products

Position	Product
1	WPW10283361 Whirlpool Nut
2	WP8182650 Whirlpool Pulley
3	WPW10388414 Whirlpool Washer Drive Belt
4	Counterweight, Front (2)
5	W10249838 Whirlpool Vent Pipe
6	8540010 Whirlpool Clamp
7	WP8181743 Whirlpool Hose Assembly
8	Tub, Rear (Includes Items 10, 22, 26 & 27)
9	W11590578 Whirlpool Seal
10	WPW10036350 Whirlpool Gasket
11	WPW10159904 Whirlpool Spin Basket Drum Assembly
12	WPW10110114 Whirlpool Baffle
13	WPW10249844 Whirlpool Heater Assembly
14	WPW10467289 Whirlpool Sensor
15	W10822553 Whirlpool Washer Shock Absorber
16	W10243909 Whirlpool Spring
17	W11685857 Whirlpool Screw Assembly
18	3363365 Whirlpool Clamp
19	WP8540015 Whirlpool Hose Assembly
20	WP8540092 Whirlpool Clamp
21	Tub, Front (Includes Items 10 & 22)
22	WP8182512 Whirlpool Nut Assembly
23	Air Trap
24	WPW10250553 Whirlpool O-Ring
25	W11230114 Whirlpool Screw Assembly
27	W10250558 Whirlpool Bracket Assembly
