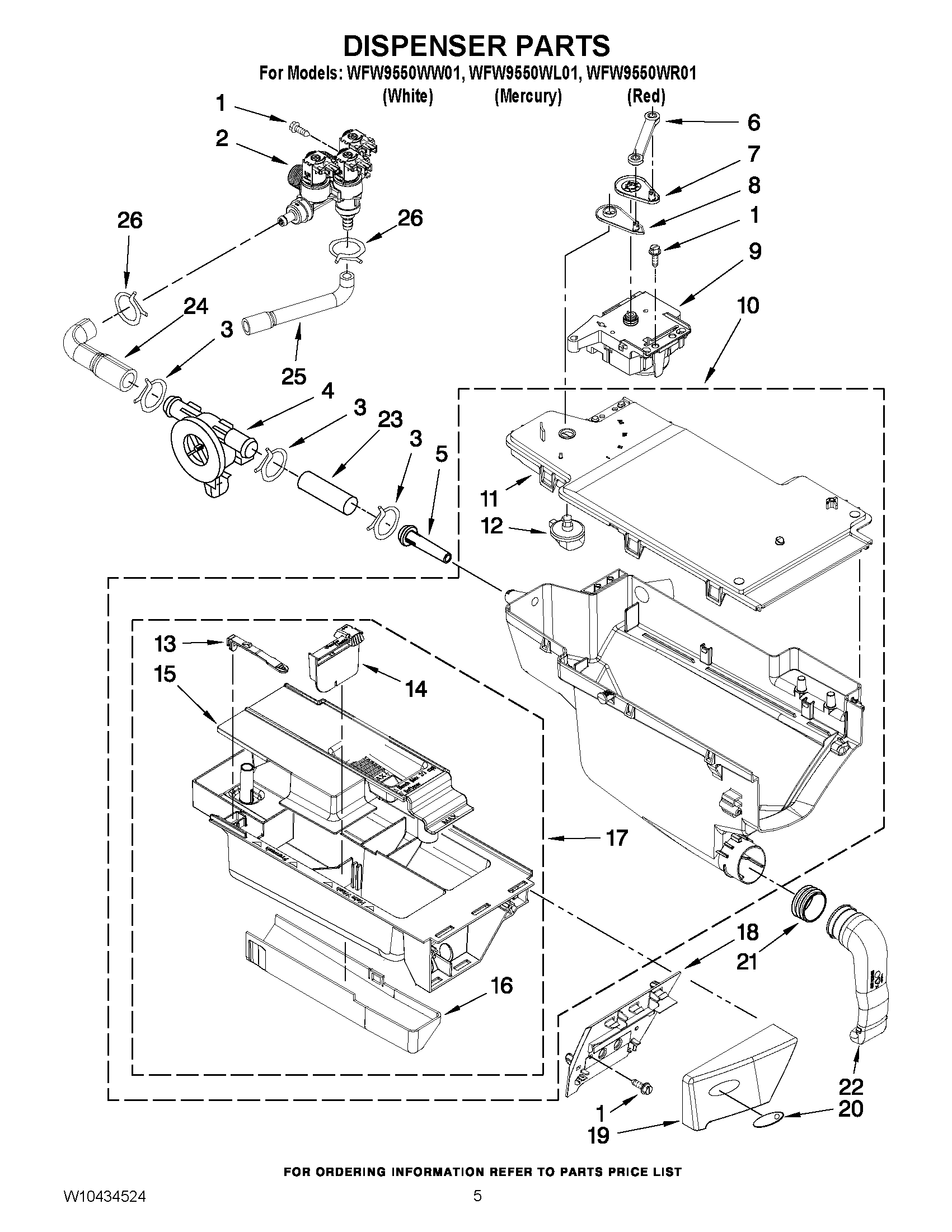

WFW9550WW01 04 – DISPENSER PARTS

Products

Position	Product
1	WP8540282 Whirlpool Screw
2	WPW10247305 Whirlpool Valve
3	WP596669 Whirlpool Hose Clamp
4	FLOWMETER WASHER INLET
5	WP8183181 Whirlpool Nozzle
6	WP8183183 Whirlpool Lever
7	WP8183184 Whirlpool Actuator Cam
8	WPW10183517 Whirlpool Lever
9	WPW10352973 Whirlpool DIS Switch
10	DISPENSER, COMPLETE (INCLUDES ITEM 8)
11	PLATE, DISTRIBUTION
12	WP8181712 Whirlpool Nozzle
13	WP8181721 Whirlpool Retainer
14	WPW10121596 Whirlpool Divider
15	SYPHON, BLEACH/SOFTENER
16	W10003140 Whirlpool Cover
17	DRAWER, DETERGENT (COMPLETE)
18	WPW10156617 Whirlpool Bracket
19	HANDLE, DRAWER (INCLUDES ITEMS 18 & 20) (MERCURY)
19	HANDLE, DRAWER (INCLUDES ITEMS 18 & 20) (RED)
19	HANDLE, DRAWER (INCLUDES ITEMS 18 & 20) (WHITE)
20	Medallion
21	WP8181747 Whirlpool Seal Assembly
22	WPW10005300 Whirlpool Hose
23	Hose, Nozzle Inlet
24	8183182 Whirlpool Hose
25	WP8181710 Whirlpool Hose Assembly
26	WP489503 Whirlpool Refrigerator Clamp
