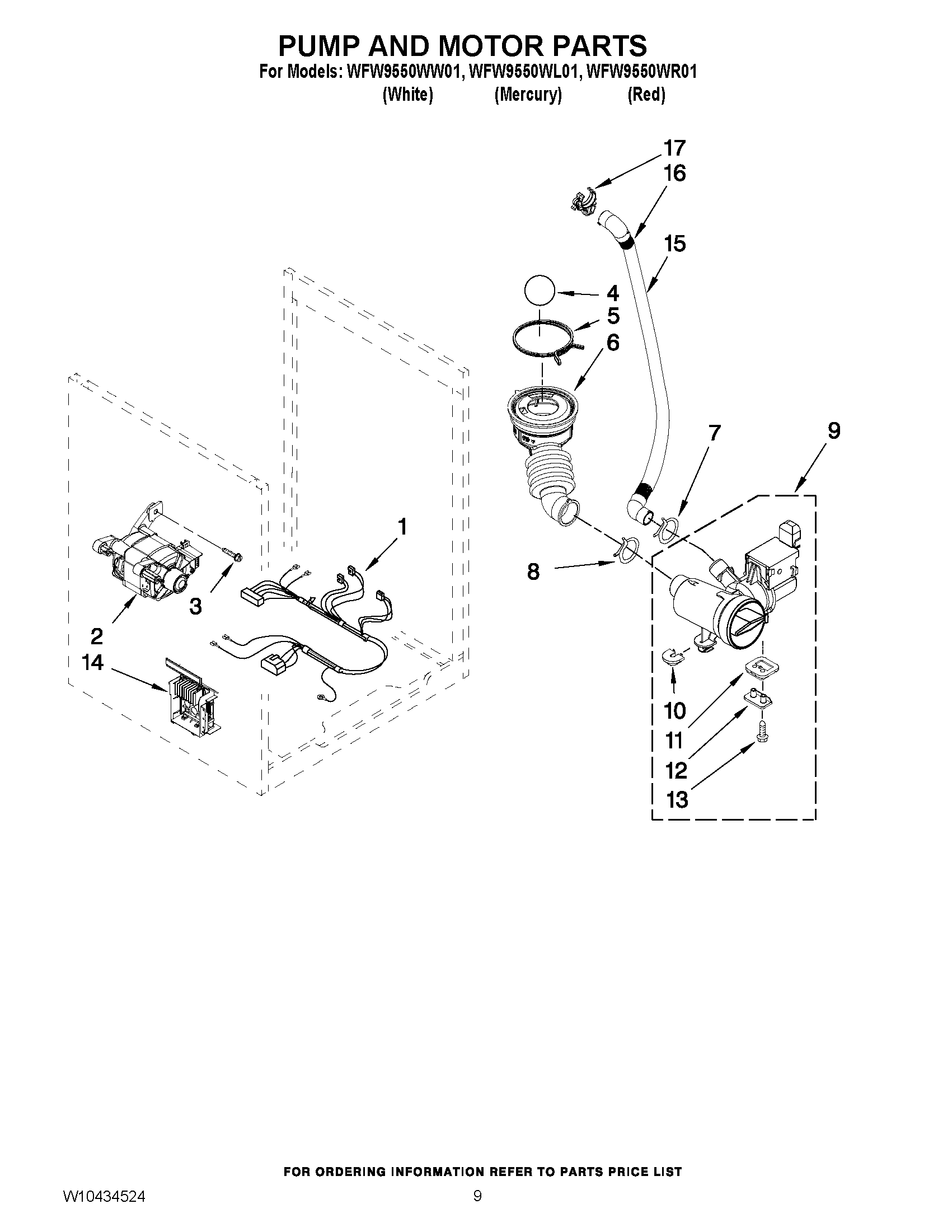

WFW9550WW01 06 – PUMP AND MOTOR PARTS

WFW9550WW01 06 – PUMP AND MOTOR PARTS

Written by

in

WFW9550WW01 06 – PUMP AND MOTOR PARTS

Products

PositionProduct
1HARNESS, MOTOR
2WPW10140583 Whirlpool Drive Motor
38540134 Whirlpool Screw
4W10121657 Whirlpool Ball
5WP696392 Whirlpool Hose Clamp
6WPW10467168 Whirlpool Hose Assembly
7WP356138 Whirlpool Hose Clamp
8WP616099 Whirlpool Clamp
9WPW10730972 Whirlpool Washer Water Pump
10W10034820 Whirlpool Grommet
11W10034830 Whirlpool Grommet
128540033 Whirlpool Cap
138533964 Whirlpool Screw
14WPW10384846-includeCORE Whirlpool WPW10384846 Refrigerator Electronic Control Board + Core
15Sleeve, Drain Hose
16WPW10003250 Whirlpool Hose
178182209 Whirlpool Clip
