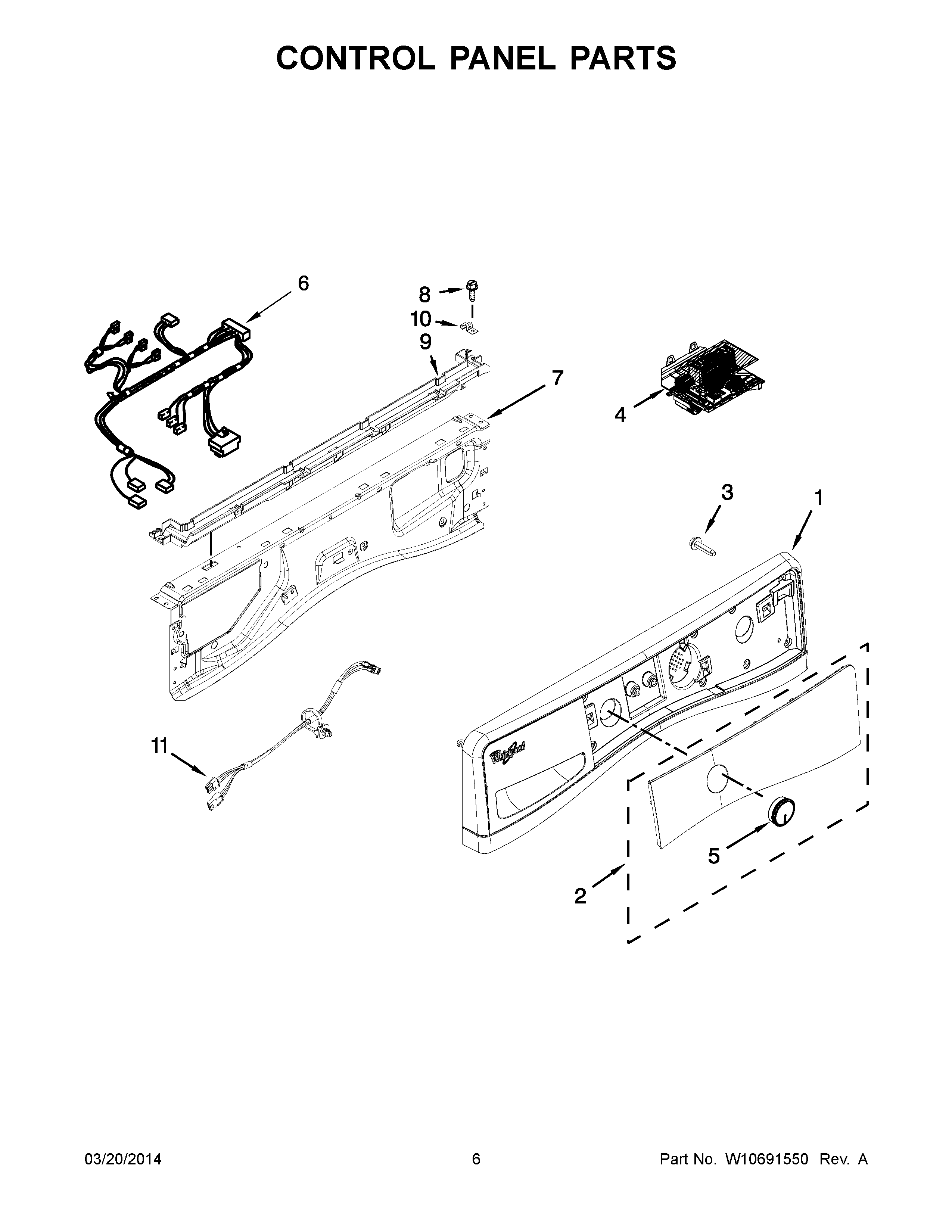

WFW95HEDU0 04 – CONTROL PANEL PARTS

WFW95HEDU0 04 – CONTROL PANEL PARTS

Written by

in

WFW95HEDU0 04 – CONTROL PANEL PARTS

Products

PositionProduct
1ASSEMBLY, CONSOLE (WHITE)
1W10858319 Whirlpool Console
1WPW10463516 Whirlpool Console
2W10814583 Whirlpool Control Panel
2ASSEMBLY, IML (SILVER)
2W10750482 Whirlpool Control Panel
3W10589828 Whirlpool Screw
4W11032117 Whirlpool Washer Electronic Control Board + Core
5WPW10631127 Whirlpool Knob
5W10631128 Whirlpool Knob Assembly
5W10875909 Whirlpool Timer Knob
6W10685628 Whirlpool Wire Harness
7W10208197 Whirlpool Bracket
8WP489464 Whirlpool Refrigerator Screw
9WPW10653575 Whirlpool Channel
10W10317566 Whirlpool Clip
11W10580186 Whirlpool Wire Harness
