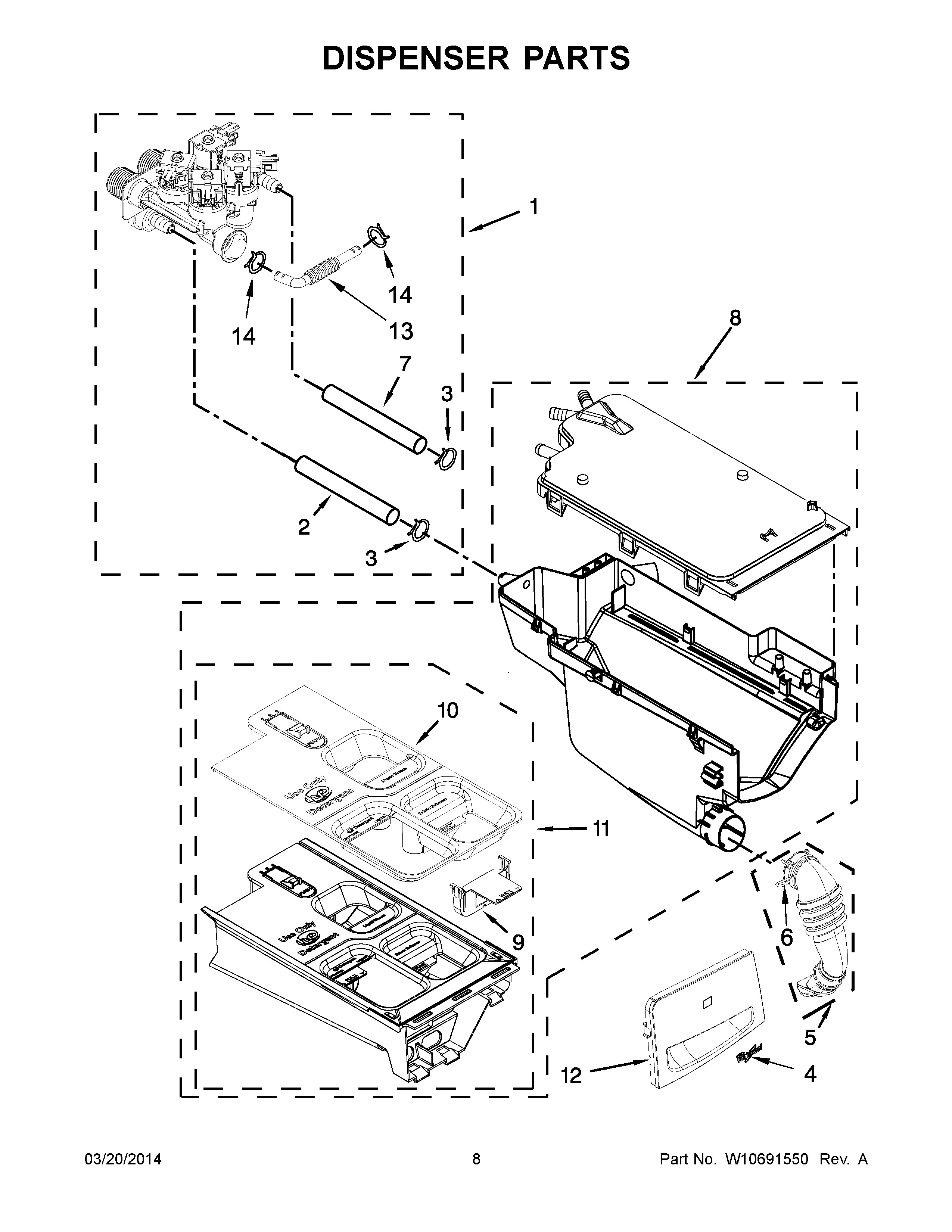

WFW95HEDU0 05 – DISPENSER PARTS

Products

PositionProduct
1WPW10435242 Whirlpool Water Inlet Valve
2WPW10577770 Whirlpool Hose
3WP596669 Whirlpool Hose Clamp
4W11178521 Whirlpool Dishwasher Nameplate
4W10510982 Whirlpool Nameplate
5WPW10239966 Whirlpool Hose
6W10239910 Whirlpool Clamp
7WPW10577787 Whirlpool Hose Assembly
8W10575334 Whirlpool Washer Detergent Dispenser
9W11084830 Whirlpool Detergent Divider
10WPW10365887 Whirlpool Dispenser Cover Housing
11WPW10365885 Whirlpool Washer Dispenser Drawer Assembly
12WPW10446403 Whirlpool Handle
12HANDLE, DRAWER (INCLUDES ITEM 13) (SILVER)
12WPW10446405 Whirlpool Handle Assembly
13W10435238 Whirlpool Hose
