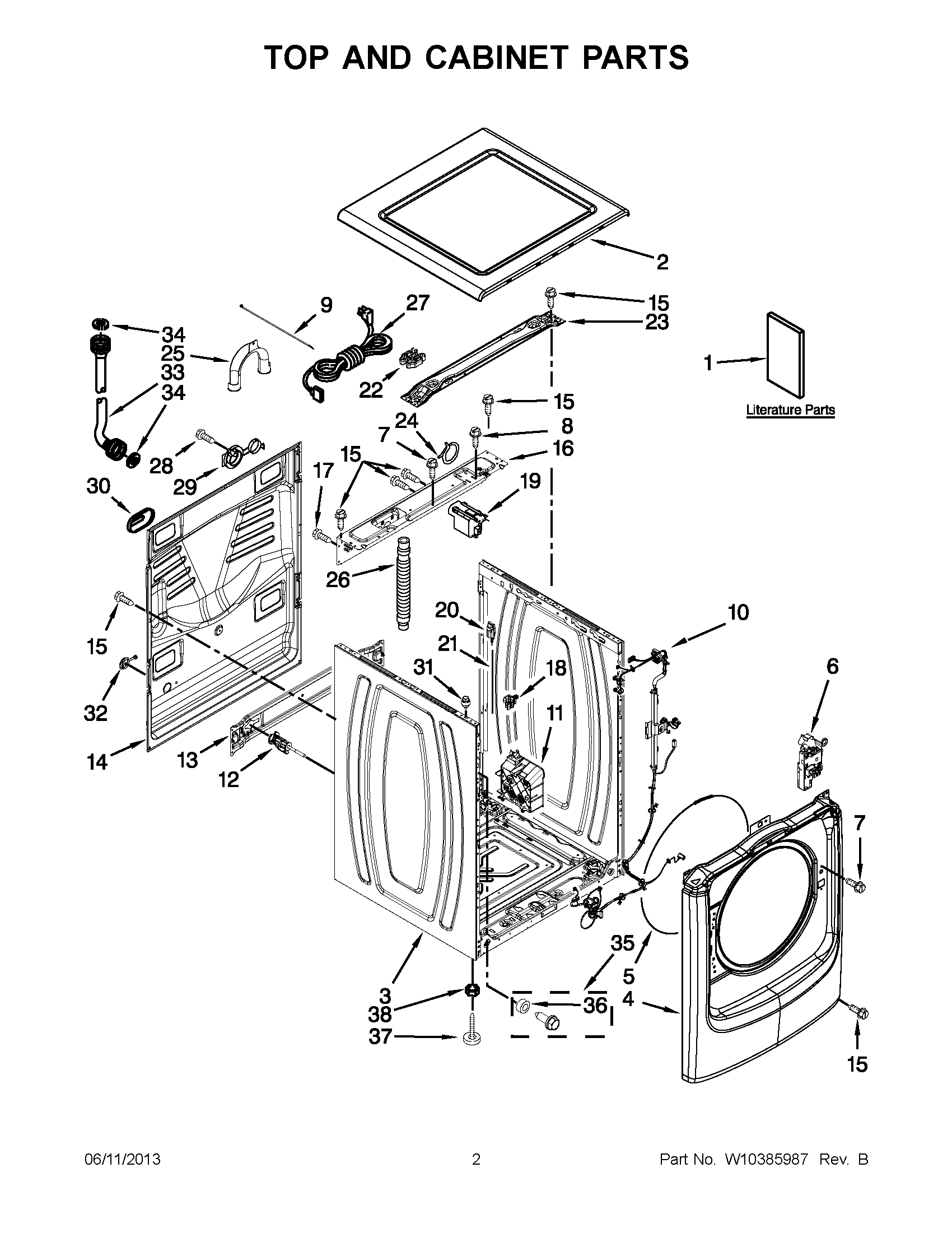

WFW95HEXL1 01 – TOP AND CABINET PARTS

Products

Position	Product
1	ENERGY GUIDE
1	TECH SHEET
1	INSTALLATION INSTRUCTIONS
1	OWNERS MANUAL
2	WPW10316283 Whirlpool Top Cover
2	TOP (RED)
2	WPW10208373 Whirlpool Top
3	W11166595 Whirlpool Cabinet Assembly
3	W11166598 Whirlpool Cabinet
3	CABINET (RED)
4	WPW10441116 Whirlpool Panel
4	PANEL, FRONT (RED)
4	PANEL, FRONT (SILVER)
5	CLAMP
6	WPW10306374 Whirlpool Latch
7	WP8540282 Whirlpool Screw
8	8540329 Whirlpool Screw
9	WPW10339879 Whirlpool Wire Tie
10	HARNESS, WIRING (LOWER MAIN)
11	WPW10374126 Whirlpool Control Board + Core
12	W10763470 Whirlpool Bolt
13	W10237498 Whirlpool Bracket Assembly
14	W11199206 Whirlpool Panel
15	WP489464 Whirlpool Refrigerator Screw
16	WPW10467483 Whirlpool Bracket
17	SCREW, M4.1-1.8 X 57
18	WPW10181028 Whirlpool Clip
19	WPW10367632 Whirlpool Filter
20	WPW10312527 Whirlpool Washer Water Level Switch
21	W11044559 Whirlpool Hose
22	W10245452 Whirlpool Retainer
23	W10467484 Whirlpool Bracket
24	WP356138 Whirlpool Hose Clamp
25	WPW10280024 Whirlpool Retainer
26	W11281268 Whirlpool Hose
27	W11035353 Whirlpool Washer Power Cord
28	WP3351614 Whirlpool Screw
29	W10854051 Whirlpool Cover Assembly
30	WP8540268 Whirlpool Cover Assembly
31	W10208380 Whirlpool Screw
32	W10304004 Whirlpool Cover
33	FILL HOSE 5' W/WASHER
33	WP89503 Whirlpool Washer Fill Hose
34	WP16123 Whirlpool Washer
35	W10298211 Whirlpool Stud
36	W10323182 Whirlpool Spacer
37	WPW10001130 Whirlpool Leveling Leg
38	WP3359452 Whirlpool Nut
