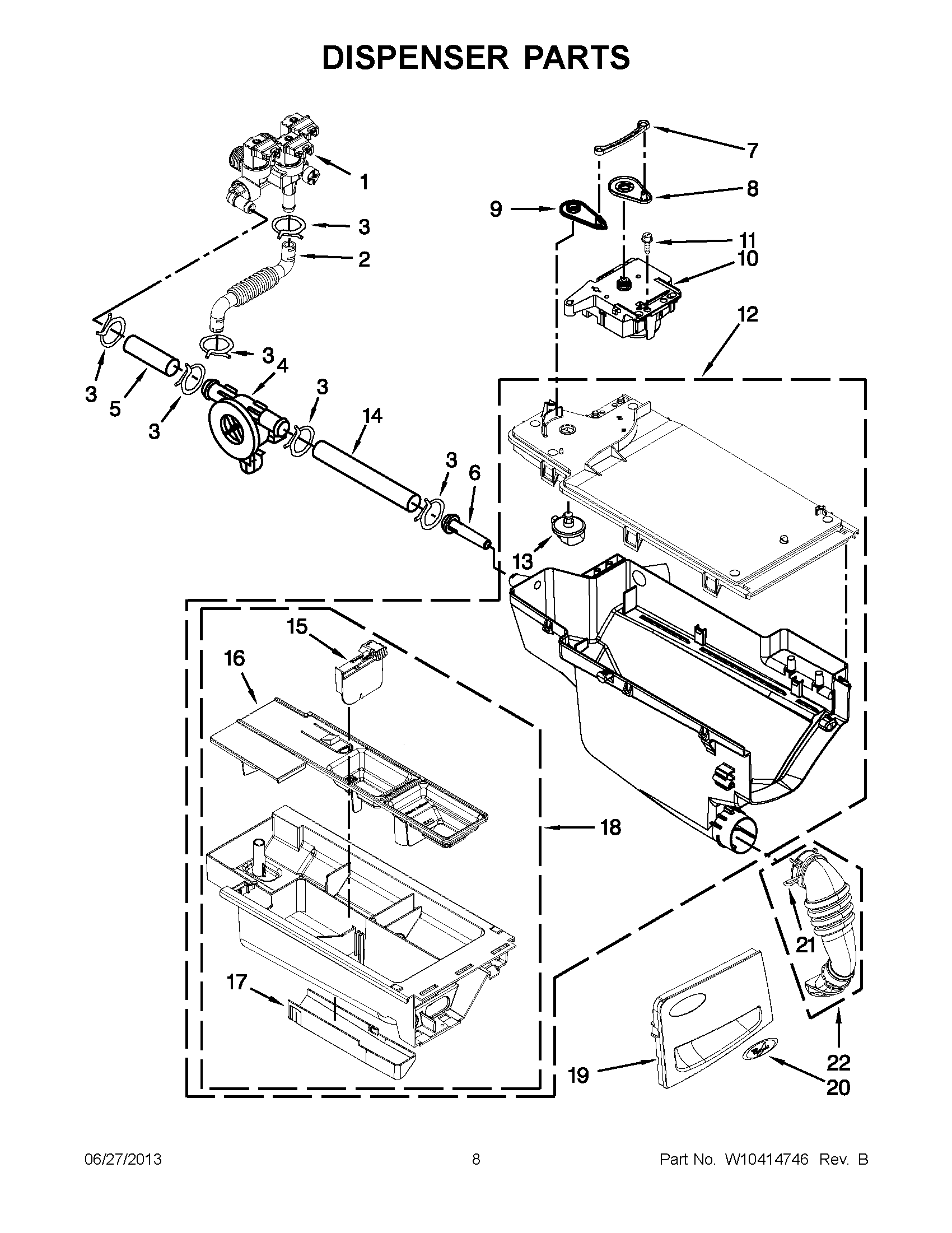

WFW95HEXL2 04 – DISPENSER PARTS

Products

Position	Product
1	WPW10247306 Whirlpool Valve
2	W10239949 Whirlpool Hose
3	WP596669 Whirlpool Hose Clamp
4	FLOWMETER WASHER INLET
5	W10538825 Whirlpool Hose
6	WP8183181 Whirlpool Nozzle
7	WP8183183 Whirlpool Lever
8	WP8183184 Whirlpool Actuator Cam
9	WPW10183517 Whirlpool Lever
10	WPW10352973 Whirlpool DIS Switch
11	WP8540282 Whirlpool Screw
12	HOUSING, DISPENSER ASSEMBLY
13	WP8181712 Whirlpool Nozzle
14	W10538827 Whirlpool Hose Appliance
15	WPW10121596 Whirlpool Divider
16	W10256661 Whirlpool Dispenser
17	W10003140 Whirlpool Cover
18	DRAWER, DETERGENT (COMPLETE)
19	W10839403 Whirlpool Drawer Handle White
19	HANDLE, DISPENSER DRAWER (INCLUDES BADGE) (RED)
19	HANDLE, DISPENSER DRAWER (INCLUDES BADGE) (SILVER)
20	Medallion
21	W10239910 Whirlpool Clamp
22	WPW10239966 Whirlpool Hose
