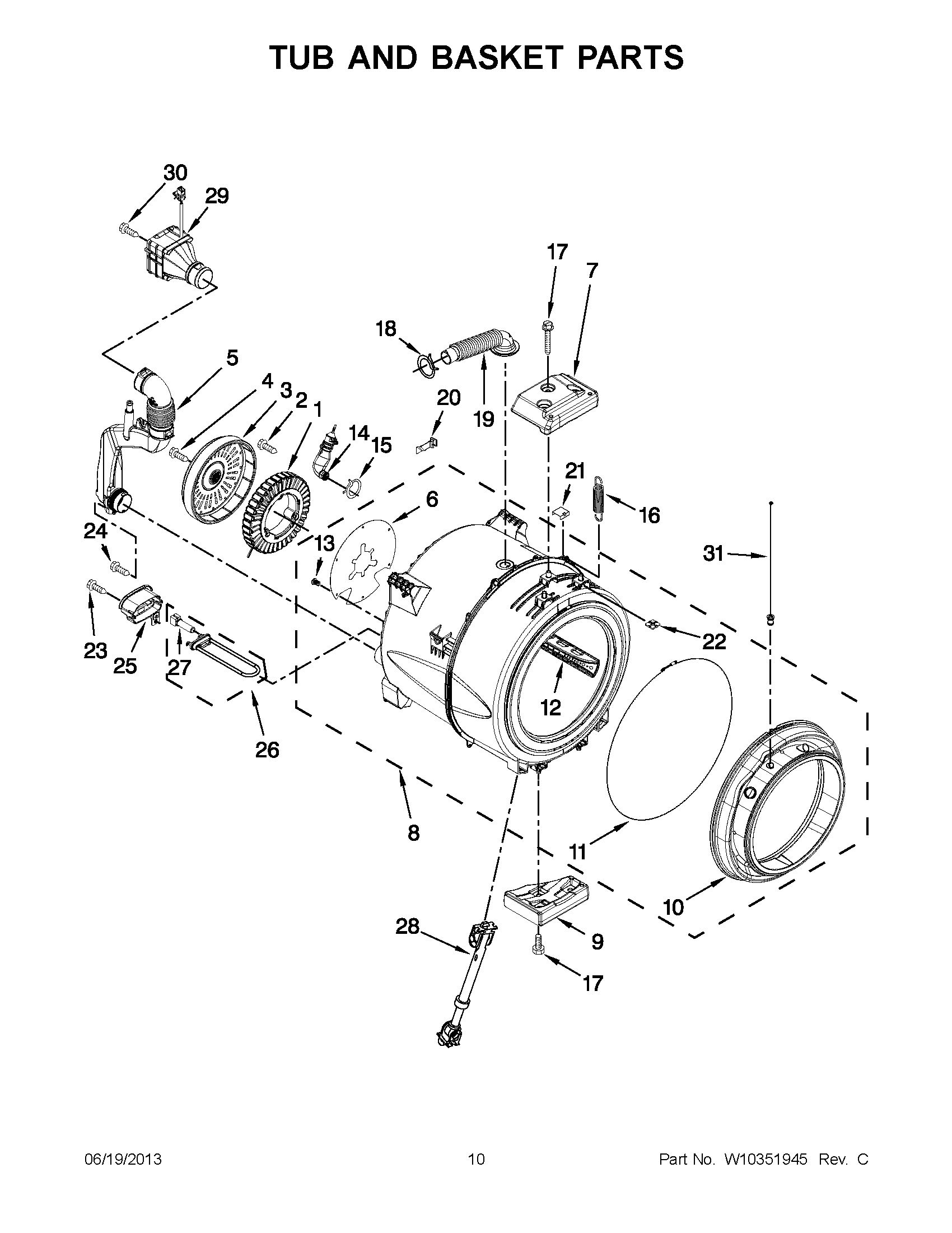

WFW95HEXW0 05 – TUB AND BASKET PARTS

WFW95HEXW0 05 – TUB AND BASKET PARTS

Written by

in

WFW95HEXW0 05 – TUB AND BASKET PARTS

Products

PositionProduct
1W10365754 Whirlpool Stator
2WPW10253476 Whirlpool Screw
3W10365755 Whirlpool Rotor
4W11253212 Whirlpool Dryer Screw
5PIPE, VENTILATION ASSEMBLY
6SHIELD, MOTOR
7W10253014 Whirlpool Counterweight
8W10434231 Whirlpool Outer Tub
9W10237535 Whirlpool Counterweight
10WPW10237493 Whirlpool Bellow
11W11218344 Whirlpool Boot Seal Retaining Ring
12W10697830 Whirlpool Baffle
13RETAINER, PUSH IN
14WPW10260500 Whirlpool Trap Assembly
15CLAMP, HOSE
16W11266650 Whirlpool Spring
17W10261496 Whirlpool Screw
18W10273033 Whirlpool Hose Clamp
19WP8540015 Whirlpool Hose Assembly
20W10316388 Whirlpool Clip Assembly
21WP8540092 Whirlpool Clamp
22WP8182512 Whirlpool Nut Assembly
23WP9740848 Whirlpool Dishwasher Screw
24W10306501 Whirlpool Screw
25W10318155 Whirlpool Cover
26WPW10426377 Whirlpool Heater Assembly
27WPW10467289 Whirlpool Sensor
28SHOCK-ABSR
29WPW10261587 Whirlpool Fan Assembly
30SCREW, M4.1-1.8 X 57
31LIGHT, LED ASSEMBLY
