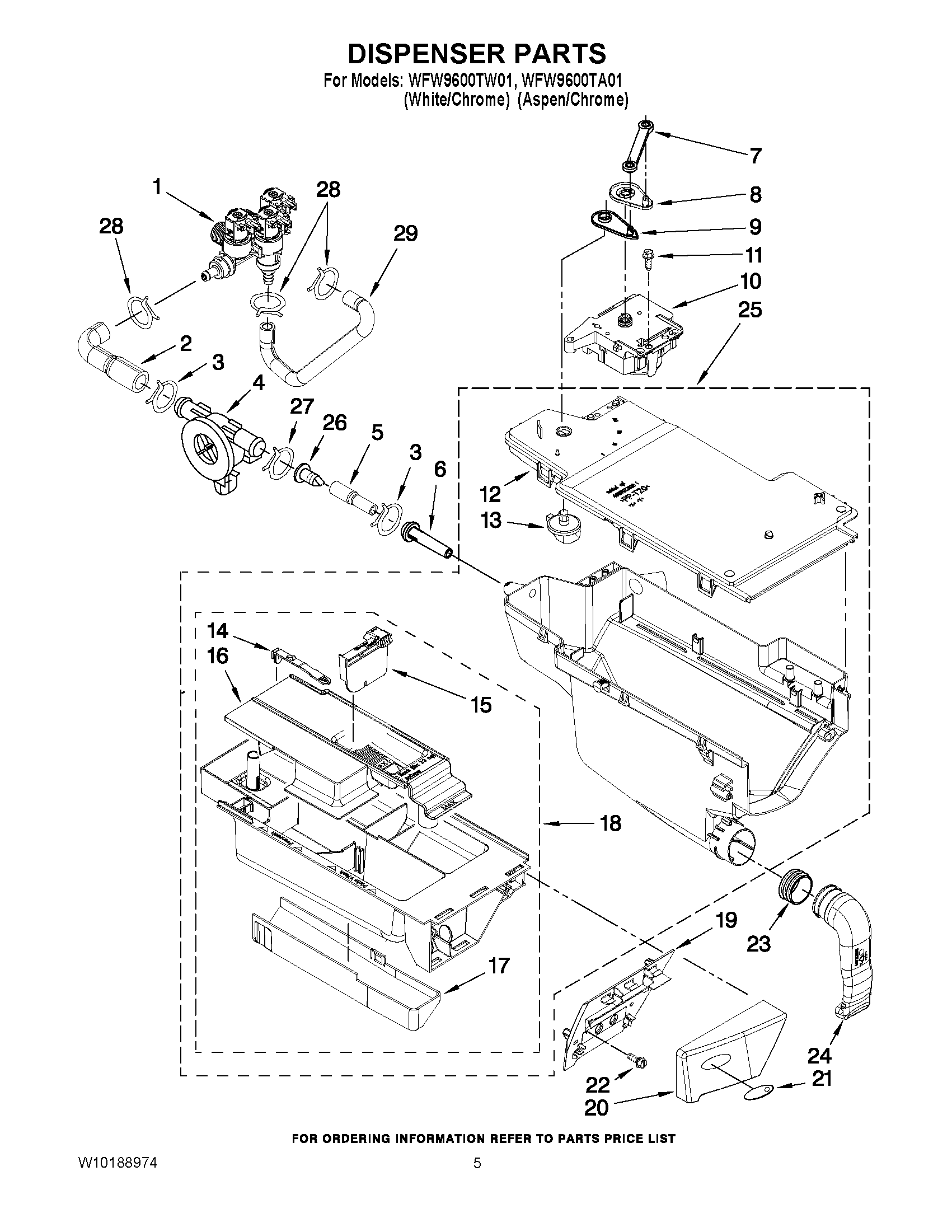

WFW9600TA01 04 – DISPENSER PARTS

WFW9600TA01 04 – DISPENSER PARTS

Written by

in

WFW9600TA01 04 – DISPENSER PARTS

Products

PositionProduct
1WPW10156253 Whirlpool Valve
28183182 Whirlpool Hose
3WP489503 Whirlpool Refrigerator Clamp
4FLOWMETER WASHER INLET
5W10156255 Whirlpool Hose
6WP8183181 Whirlpool Nozzle
7WP8183183 Whirlpool Lever
8WP8183184 Whirlpool Actuator Cam
9WPW10161052 Whirlpool Dispenser Lever Connection
10WPW10352973 Whirlpool DIS Switch
11WP8540282 Whirlpool Screw
12Plate, Distribution
13WP8181712 Whirlpool Nozzle
14WP8181721 Whirlpool Retainer
15WPW10121596 Whirlpool Divider
16Siphon, Bleach/Softener
17W10003140 Whirlpool Cover
18Drawer, Detergent (Complete)
19WPW10156617 Whirlpool Bracket
20Handle, Drawer (Includes Items 19 & 21) (White)
20Handle, Drawer (Includes Items 19 & 21) (Aspen)
21MEDALLION
22SCREW
23WP8181747 Whirlpool Seal Assembly
24WPW10005300 Whirlpool Hose
25Dispenser, Complete (Includes Item 9)
26Check Valve, Duckbill
29HOSE, INLET VALVE TO STEAMER SIPHON
