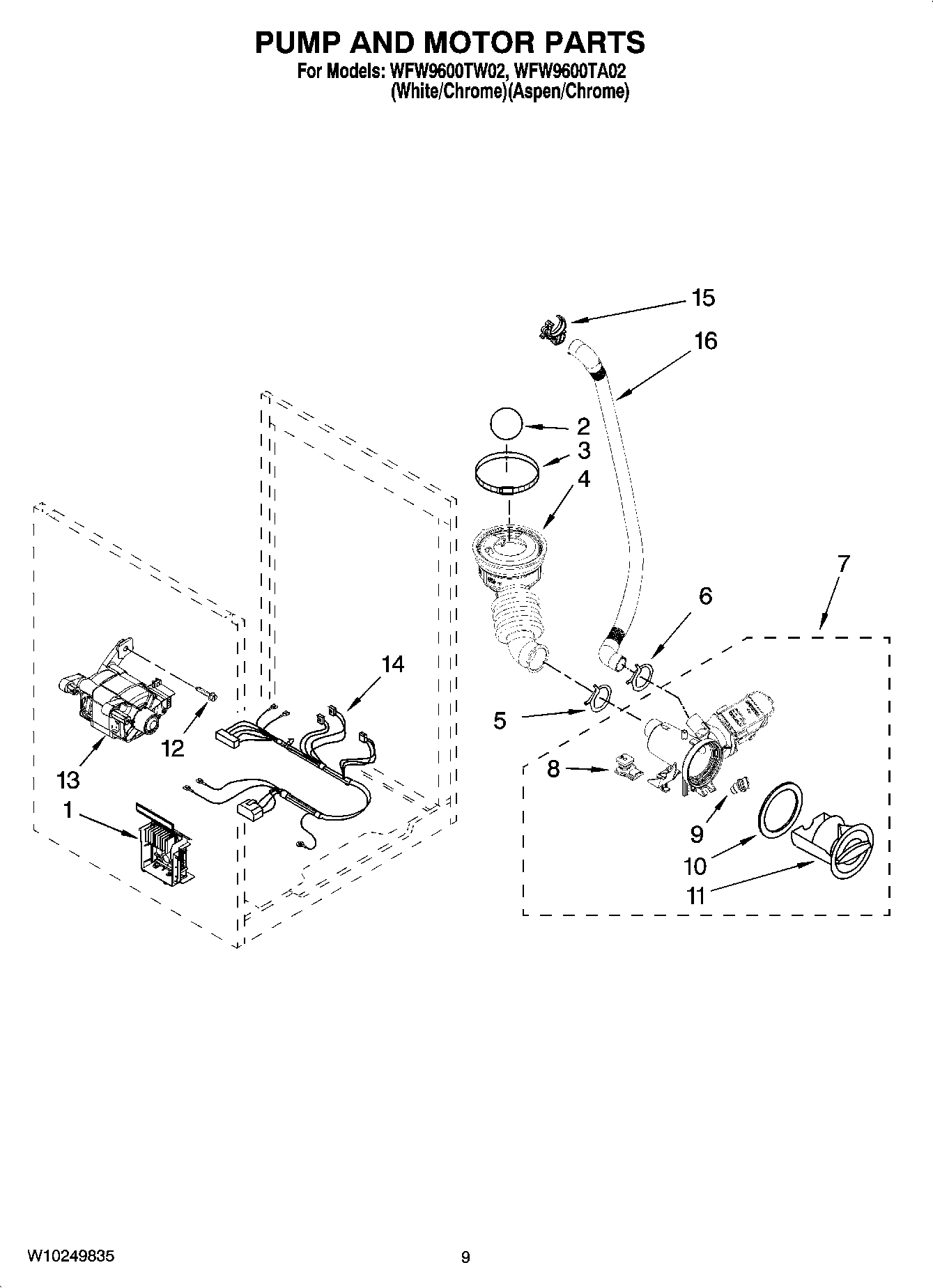

WFW9600TW02 06 – PUMP AND MOTOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350930 Whirlpool White Spray Paint
	38005 Whirlpool Stack Kit
	WPL W10157756
	ACCESSORY PARTS, REAR GUARD
	W10135699 Whirlpool Affresh Cleaner Tablets
	285863 Whirlpool Drain Hose Extension 4'
	ACCESSORY PARTS
	350938 Whirlpool Spray Gun
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
1	WP8183196 Whirlpool Electronic Control Board + Core
2	W10121657 Whirlpool Ball
3	WP696392 Whirlpool Hose Clamp
4	WPW10467168 Whirlpool Hose Assembly
5	WP285655 Whirlpool Hose Clamp
6	WP3367052 Whirlpool Hose Clamp
7	280187 Whirlpool Washer Electronic Water Drain Pump
8	Grommet, Damper (Rear)
9	WPW10526202 Whirlpool Grommet
10	Seal, Filter Cap
11	Cap, Filter
12	Bolt, Motor
13	Motor
14	WPW10189680 Whirlpool Wire Harness
15	8182209 Whirlpool Clip
16	WPW10003250 Whirlpool Hose
