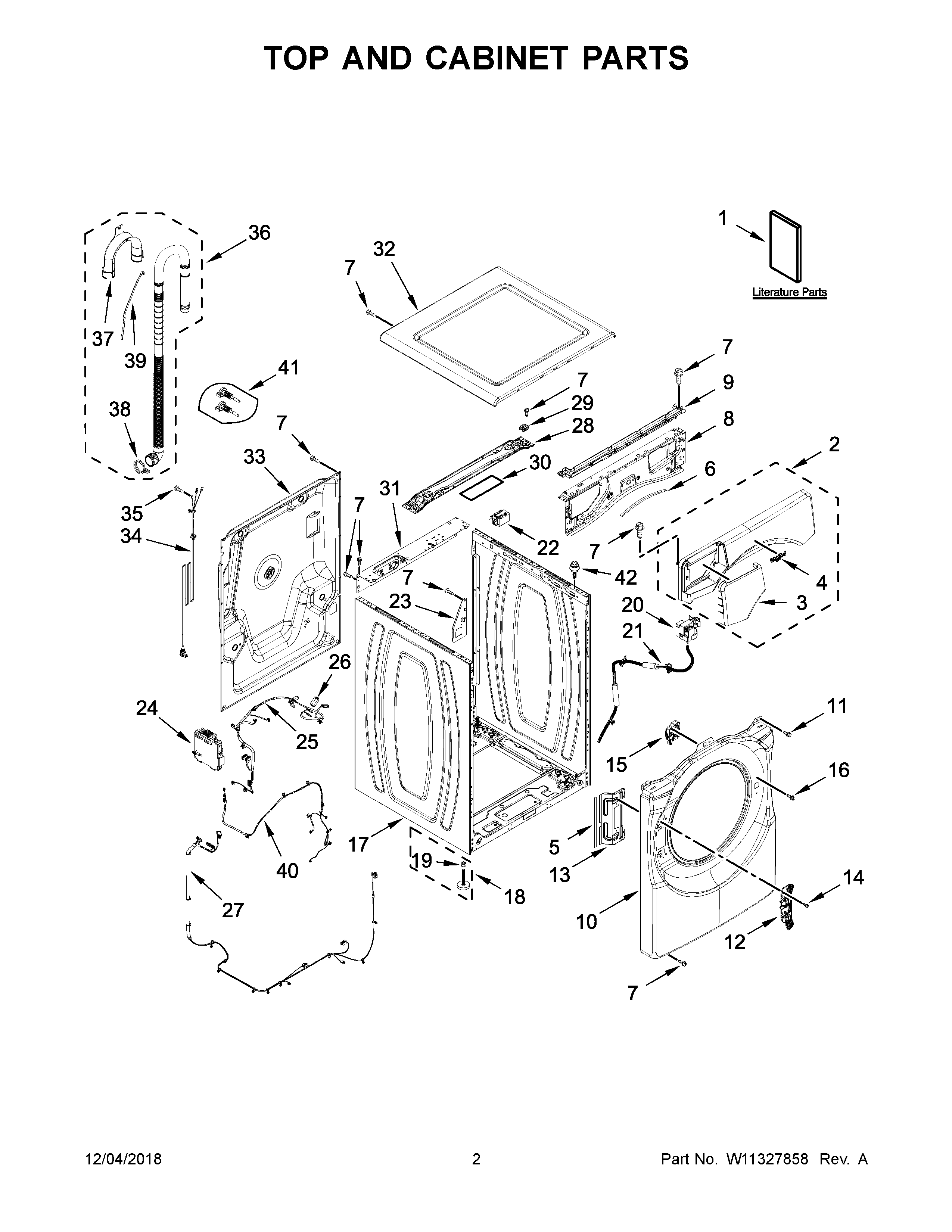

WFW9620HC0 02 – TOP AND CABINET PARTS

WFW9620HC0 02 – TOP AND CABINET PARTS

Written by

in

WFW9620HC0 02 – TOP AND CABINET PARTS

Products

PositionProduct
1AINSTALLATION INSTRUCTIONS
1OWNERS MANUAL
1CENERGY GUIDE
1BQUICK START GUIDE
2BASSEMBLY, CONSOLE (BLACK SHADOW)
2AW11328720 Whirlpool Console
2W11321035 Whirlpool Console Assembly
3BW11167035 Whirlpool Handle
3AW11573819 Whirlpool Handle
3W11318818 Whirlpool Handle
4W11223753 Whirlpool Refrigerator Nameplate
5EDGE GUARD
6W11316770 Whirlpool Protector
7W11568617 Whirlpool Screw
8W11314678 Whirlpool Bracket Assembly
9W11172160 Whirlpool Channel
10AW11325564 Whirlpool Panel
10BPANEL, FRONT (BLACK SHADOW)
10W11318809 Whirlpool Panel
11W11573574 Whirlpool Screw
12W11310038 Whirlpool Hinge
13W11310030 Whirlpool Bracket Assembly
14SCREW
15W11565030 Whirlpool Latch
16WP8540282 Whirlpool Screw
17AW11352996 Whirlpool Cabinet
17BW11353000 Whirlpool Cabinet
17W11352995 Whirlpool Cabinet Assembly
18W10888529 Whirlpool Washer Leveling Leg
19WP3359452 Whirlpool Nut
20SWITCH-WL
21W11456953 Whirlpool Hose
22W11316771 Whirlpool Filter
23W11316769 Whirlpool Bracket
24W11352117 Whirlpool Electronic Control Board + Core
25W11318752 Whirlpool Wire Harness
26W11314662 Whirlpool Fertilizer Beads
27W10919938 Whirlpool Wire Harness
28W10467484 Whirlpool Bracket
29W10245452 Whirlpool Retainer
30FOAM PAD
31W11353016 Whirlpool Bracket
32AWPW10460693 Whirlpool Top Assembly
32BW11328714 Whirlpool Top Assembly
32WPW10208373 Whirlpool Top
33W11315708 Whirlpool Panel
34W11316254 Whirlpool Power Cord
35W10850756 Whirlpool Screw
36W11281268 Whirlpool Hose
37WPW10280024 Whirlpool Retainer
38WP356138 Whirlpool Hose Clamp
39WPW10339879 Whirlpool Wire Tie
40W10919956 Whirlpool Wire Harness
41W11316629 Whirlpool Bolt
42W10208380 Whirlpool Screw
