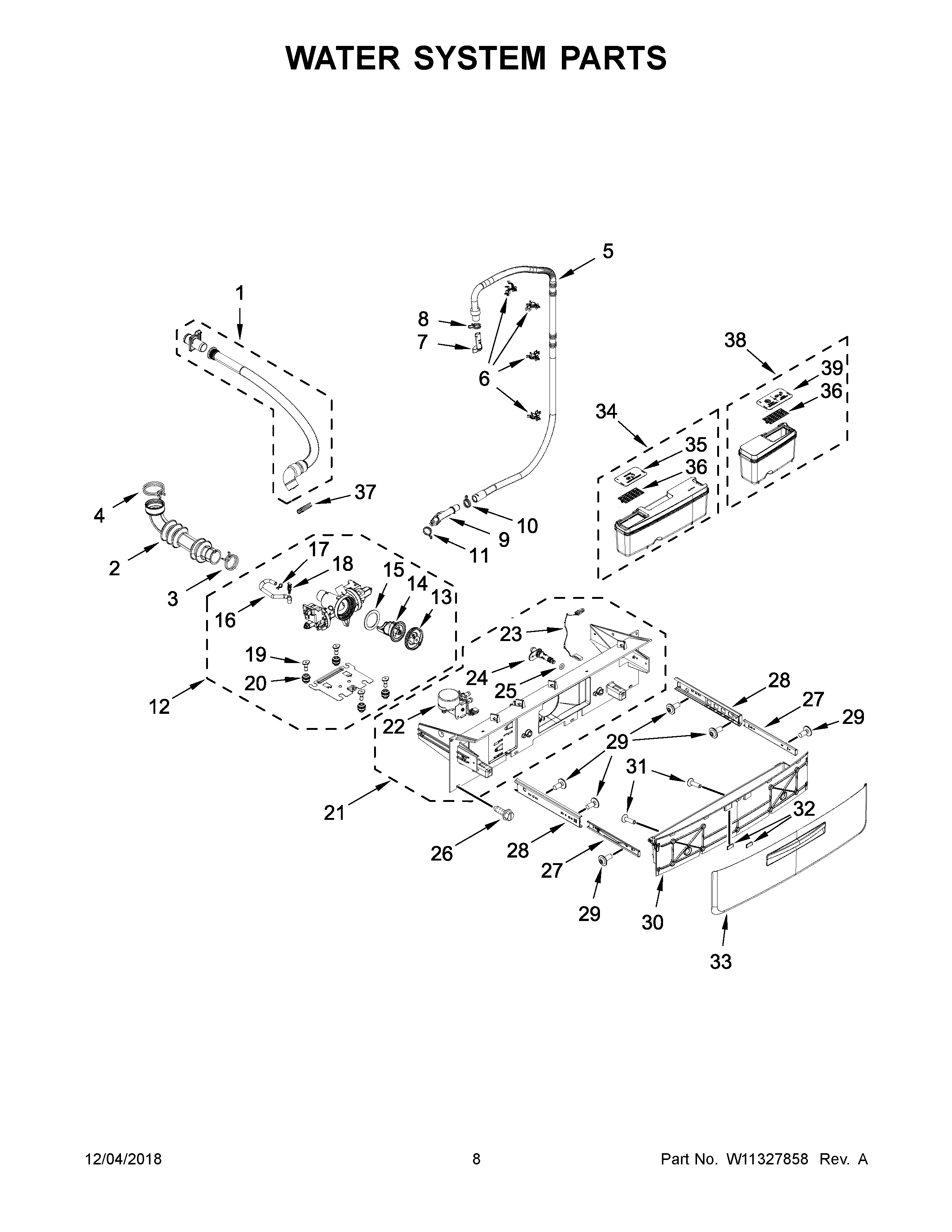

WFW9620HW0 05 – WATER SYSTEM PARTS

Products

Position	Product
1	HOSE
2	W11316056 Whirlpool Hose Assembly
3	WP616099 Whirlpool Clamp
4	W10273034 Whirlpool Clamp
5	W11318802 Whirlpool Hose
6	W11316608 Whirlpool Clip Assembly
7	W11316251 Whirlpool Injector Tube
8	WP596669 Whirlpool Hose Clamp
9	W11111701 Whirlpool Hose
10	W11316607 Whirlpool Clamp Assembly
12	W11458345 Whirlpool Water Pump
13	W11316610 Whirlpool Cap Assembly
14	W11316612 Whirlpool Filter
15	W11316613 Whirlpool Seal Assembly
16	W11316662 Whirlpool Hose
17	W11316666 Whirlpool Clamp
18	W11316669 Whirlpool Plug Assembly
19	W11316664 Whirlpool Pin
20	W11316663 Whirlpool Grommet Assembly
21	W11321065 Whirlpool Dispenser
22	W11318806 Whirlpool Pump Motor
23	W11195379 Whirlpool Sensor Switch Assembly
24	W11106544 Whirlpool Tube
25	W11628814 Whirlpool O-Ring Sealing
26	W11568617 Whirlpool Screw
27	W11551370 Whirlpool Slide
28	W11321012 Whirlpool Dispenser
29	W11230114 Whirlpool Screw Assembly
30	W11318828 Whirlpool Frame
30A	W11325565 Whirlpool Frame
31	SCREW
32	W11320962 Whirlpool Magnet
33B	W11328713 Whirlpool Front Assembly
33	W11318826 Whirlpool Front Panel
33A	W11174518 Whirlpool Front
34	W11318830 Whirlpool Tank Appliance
35	W11318832 Whirlpool Lid
36	W11320963 Whirlpool Insert
37	WP356138 Whirlpool Hose Clamp
38	W11678968 Whirlpool Tank
39	LID, TANK
