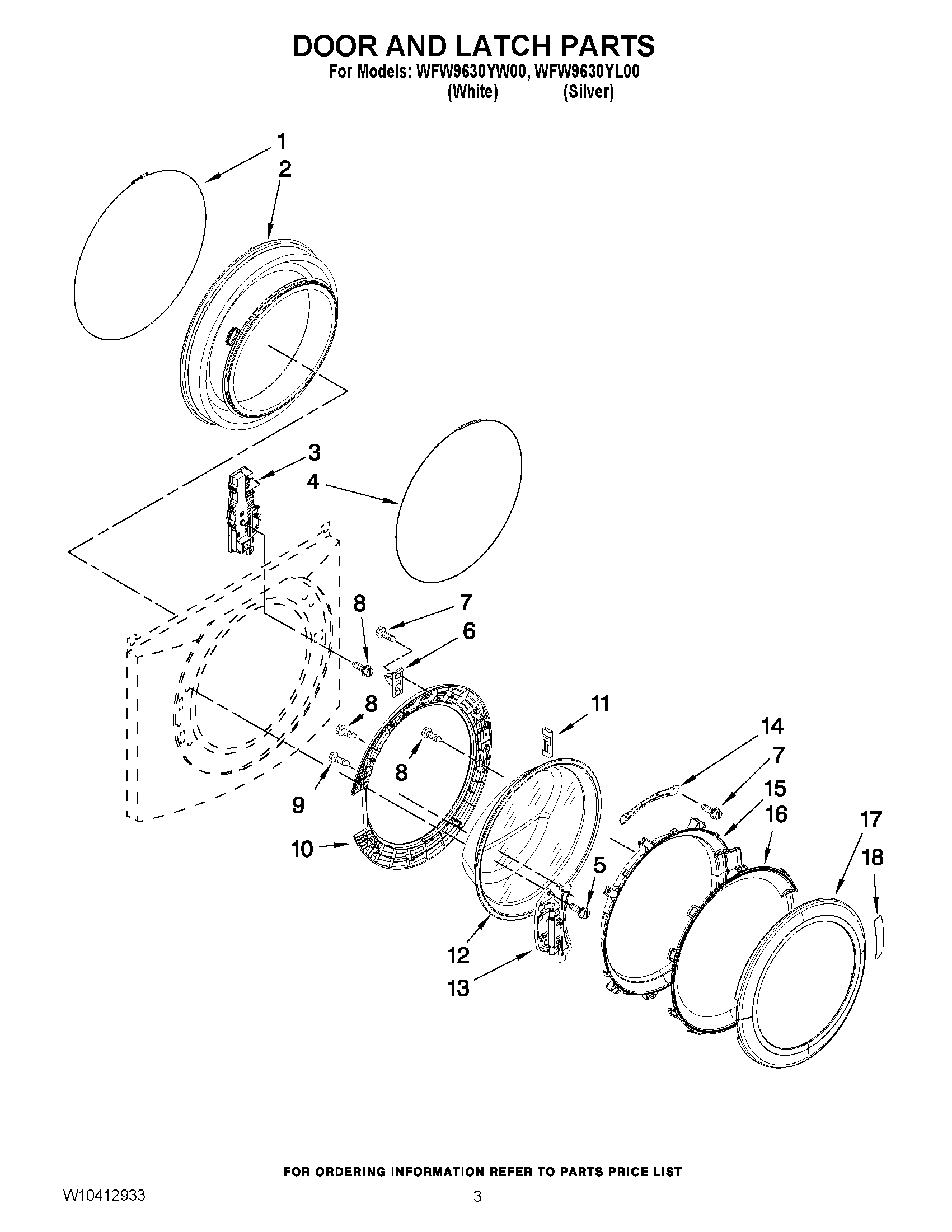

WFW9630YL00 02 – DOOR AND LATCH PARTS

WFW9630YL00 02 – DOOR AND LATCH PARTS

Written by

in

WFW9630YL00 02 – DOOR AND LATCH PARTS

Products

PositionProduct
1WP8182210 Whirlpool Clamp
2WP8182119 Whirlpool Washer Door Boot Bellows
3LATCH-WASHER DOOR
4W10902779 Whirlpool Clamp Assembly
5SCREW
6WPW10488048 Whirlpool Strike
7Screw
8WP8540282 Whirlpool Screw
9WP8181660 Whirlpool Screw
10WPW10003370 Whirlpool Frame
11Clamp, Glass Support
12Glass, Door
13WP8183202 Whirlpool Door Hinge
14W10295703 Whirlpool Clamp Assembly
15WP8183256 Whirlpool Frame Assembly
16SCREEN, DOOR
17TRIM RING, OUTER DOOR (INCLUDES ITEM 18)
18W10121607 Whirlpool Cushion
