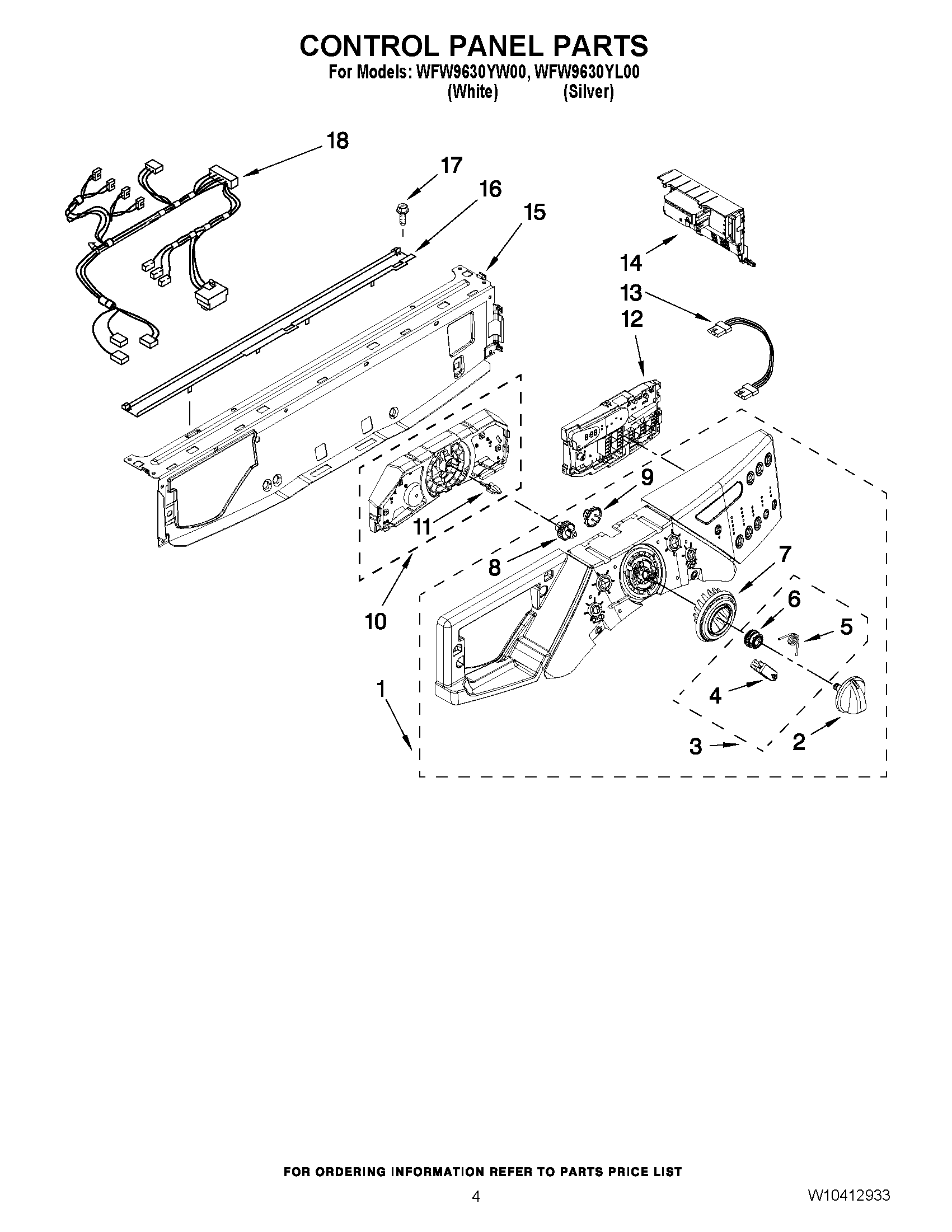

WFW9630YL00 03 – CONTROL PANEL PARTS

Products

PositionProduct
1PANEL, CONTROL (WHITE)
1PANEL, CONTROL (SILVER)
2W10190685 Whirlpool Knob Assembly
3Wheel, Detent Kit (Includes Item 9)
4Wheel, Rast (2) (Service In Kit Only)
5Spring, Knob (2) (Service In Kit Only)
6Wheel, Detent (Service In Kit Only)
7Ring, Knob Light (Includes Item 9)
8W10131381 Whirlpool Wheel
9Retainer, Snap
10USER INTERFACE, CENTER
11Adapter, Encoder Wheel
12USER INTERFACE, RIGHT
13W10852624 Whirlpool Wire Harness
14MICROCOMPUTER, MACHINE CONTROL
15W10059240 Whirlpool Bracket Assembly
16WP8183204 Whirlpool Diverter
17WP488729 Whirlpool Refrigerator Door Screw
18HARNESS, WIRING (UPPER MAIN)
