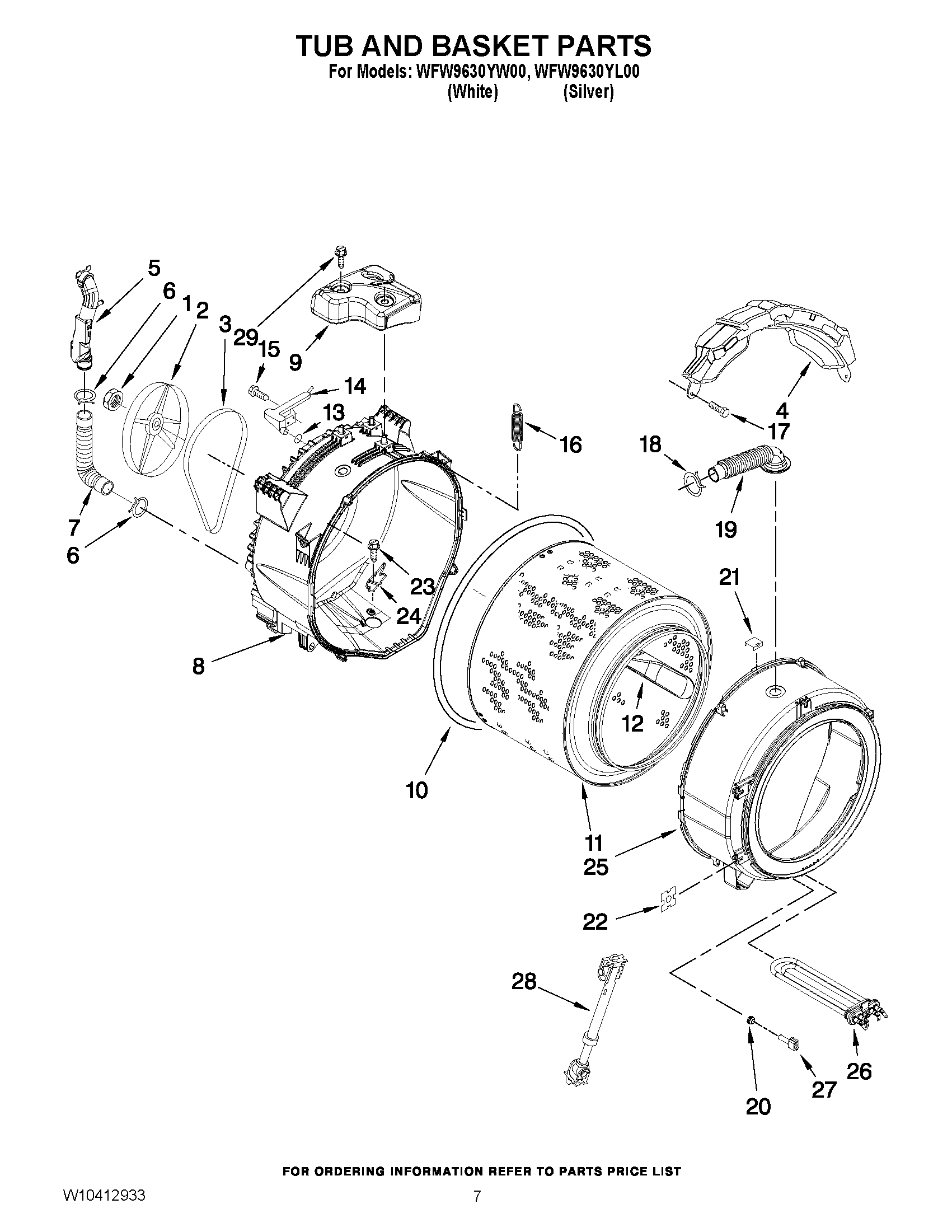

WFW9630YL00 05 – TUB AND BASKET PARTS

Products

Position	Product
1	WPW10283361 Whirlpool Nut
2	WP8182650 Whirlpool Pulley
3	WPW10388414 Whirlpool Washer Drive Belt
4	COUNTERWEIGHT, FRONT
5	W10249838 Whirlpool Vent Pipe
6	Clamp
7	WP8181743 Whirlpool Hose Assembly
8	TUB, REAR (INCLUDES ITEMS 10, 22, 23 & 24)
9	COUNTERWEIGHT, REAR
10	Gasket, Tub
11	WPW10283352 Whirlpool Basket Assembly
12	WPW10283356 Whirlpool Washer Tub Baffle
13	WPW10250553 Whirlpool O-Ring
14	Airtrap
15	SCREW
16	W10135004 Whirlpool Spring Assembly
17	Bolt
18	WP3367052 Whirlpool Hose Clamp
19	WP8540015 Whirlpool Hose Assembly
20	Seal, NTC
21	WP8540092 Whirlpool Clamp
22	WP8182512 Whirlpool Nut Assembly
23	SCREW
24	W10250558 Whirlpool Bracket Assembly
25	W10772613 Whirlpool Outer Tub
26	WPW10249844 Whirlpool Heater Assembly
27	WPW10467289 Whirlpool Sensor
28	W10822553 Whirlpool Washer Shock Absorber
29	SCREW, REAR COUNTERWEIGHT
