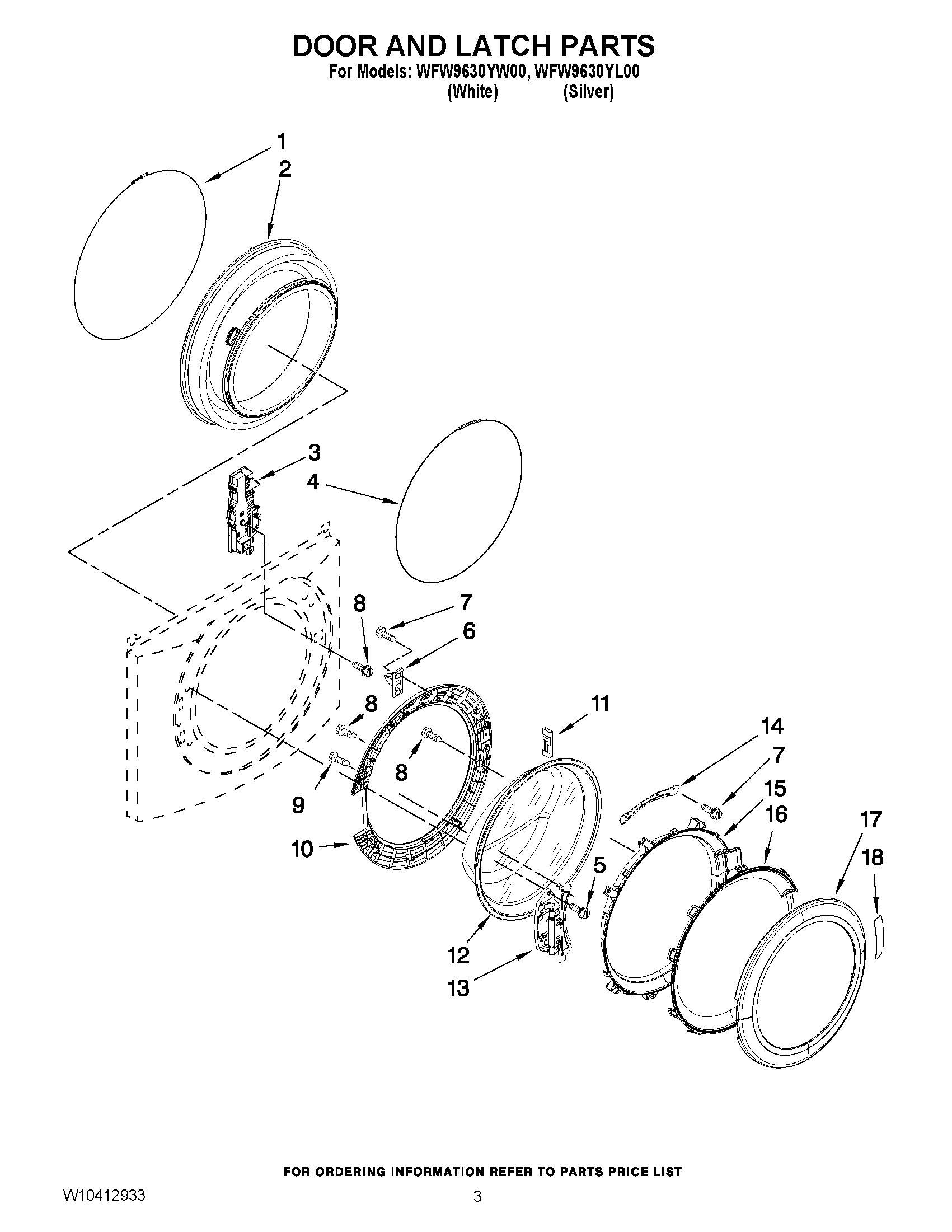

WFW9630YW00 02 – DOOR AND LATCH PARTS

Products

Position	Product
1	WP8182210 Whirlpool Clamp
2	WP8182119 Whirlpool Washer Door Boot Bellows
3	LATCH-WASHER DOOR
4	W10902779 Whirlpool Clamp Assembly
5	SCREW
6	WPW10488048 Whirlpool Strike
7	Screw
8	WP8540282 Whirlpool Screw
9	WP8181660 Whirlpool Screw
10	WPW10003370 Whirlpool Frame
11	Clamp, Glass Support
12	Glass, Door
13	WP8183202 Whirlpool Door Hinge
14	W10295703 Whirlpool Clamp Assembly
15	WP8183256 Whirlpool Frame Assembly
16	SCREEN, DOOR
17	TRIM RING, OUTER DOOR (INCLUDES ITEM 18)
18	W10121607 Whirlpool Cushion
